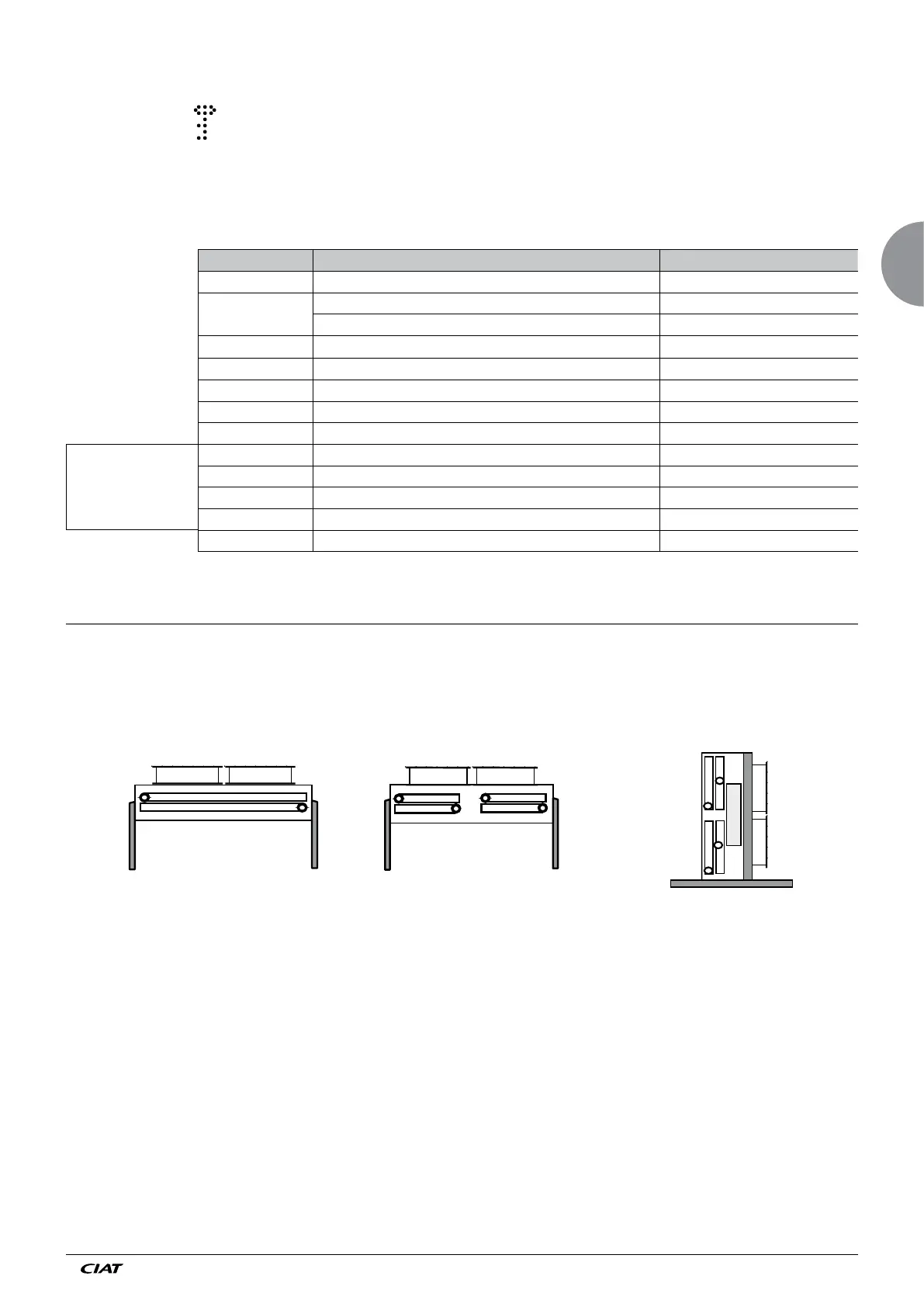

8.1 Configurations
Application: condenser with one or two refrigerating circuits
8 - CONDENSER CONFIGURATION
7.4 Factory-set parameters
The [4 - Machine parameters] menu contains the parameters used to configure the machine. They are set in the factory and are
locked. The symbol
appears at the top left of the screen.
Menu
[4 - Machine parameters]
In certain rare cases (such as adding the misting function), it may be necessary to update a parameter. The parameters may be
unlocked by changing parameter A99. However do not modify any parameter other than those that require changing and relock
them.
Parameter No. Parameter description Display condition
A01 Unit type (flatbed or V-coil)
A02
Number of coils (1 or 2) Flatbed unit
Parallel coil (yes) V-type unit
A03 Coil type 1 (1 LT or HT water circuit)
A05 Coil type 2 (1 LT or HT water circuit) 2 coils/flatbed unit
A07 Control type: (On/Off stages), speed control or mixed
A08 Number of stages (1 to 7) Control = On/Off or mixed
A10 Misting (yes or no)
From V07
A15.1 Measurement of electrical quantities
A15.2 NET electrical network type A15.1 = YES
A16 Primary current transformer rating A15.1 = YES
A17 Secondary current transformer rating A15.1 = YES
A99 Lock parameters (yes)
1 refrig. circuit
Line 1
Line 2
Circuit 1 Circuit 2
Circuit 1
Circuit 2
Flatbed unit
