EN
EN - 5
EN7510364-00
2.8 Menu tree
There are eight main menus for controlling the system.
Each menu contains different parameters.
2.8.1 Menu list
MENUS DESCRIPTION
1 - Setpoints Change setpoints - Menu not displayed if the unit is run with a CIAT water chiller.
2 - Machine state Default menu. Read only - information on the operation of the machine.
3 - Measured values Displays read-only temperature and pressure values.
4 - Machine configuration Machine configuration parameters
5 - Settings parameters Configuration of the control and various options
6 - Reading parameters Displays the state of the inputs, outputs, meters, etc. (read-only).
7 - Fault memory Shows the nine most recent faults (read-only).
11 - Communication MODBUS and TCP protocol configuration (from V07)

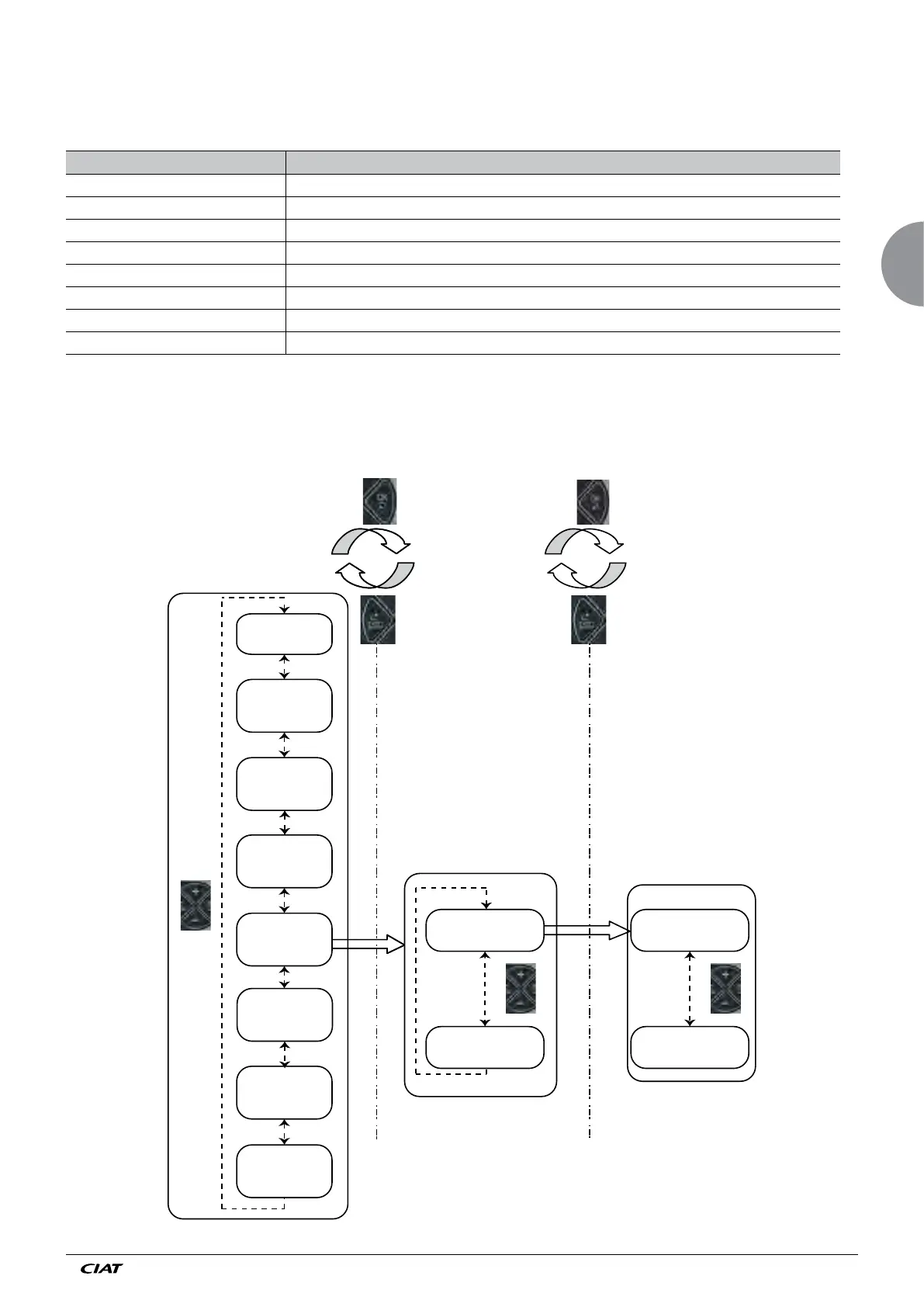

2.8.2 Structure of the menus
All information in the menus is displayed in a tree structure.
This tree structure is split into three levels, as shown in the diagram below.
MENUS PARAMETERS
MODIFICATION OF
THE VALUES
1 - Setpoint
2 - Machine
state
3 - Measured
values
4 - Machine
parameters
5 - Settings
parameters
6 - Reading
parameters
7 - Fault
memory
11 -
Communication
A100 Language
A203 ----------
A100 Language
A100 Language
