2.7 The display
Three-line LCD display
Displays system readings and controls.

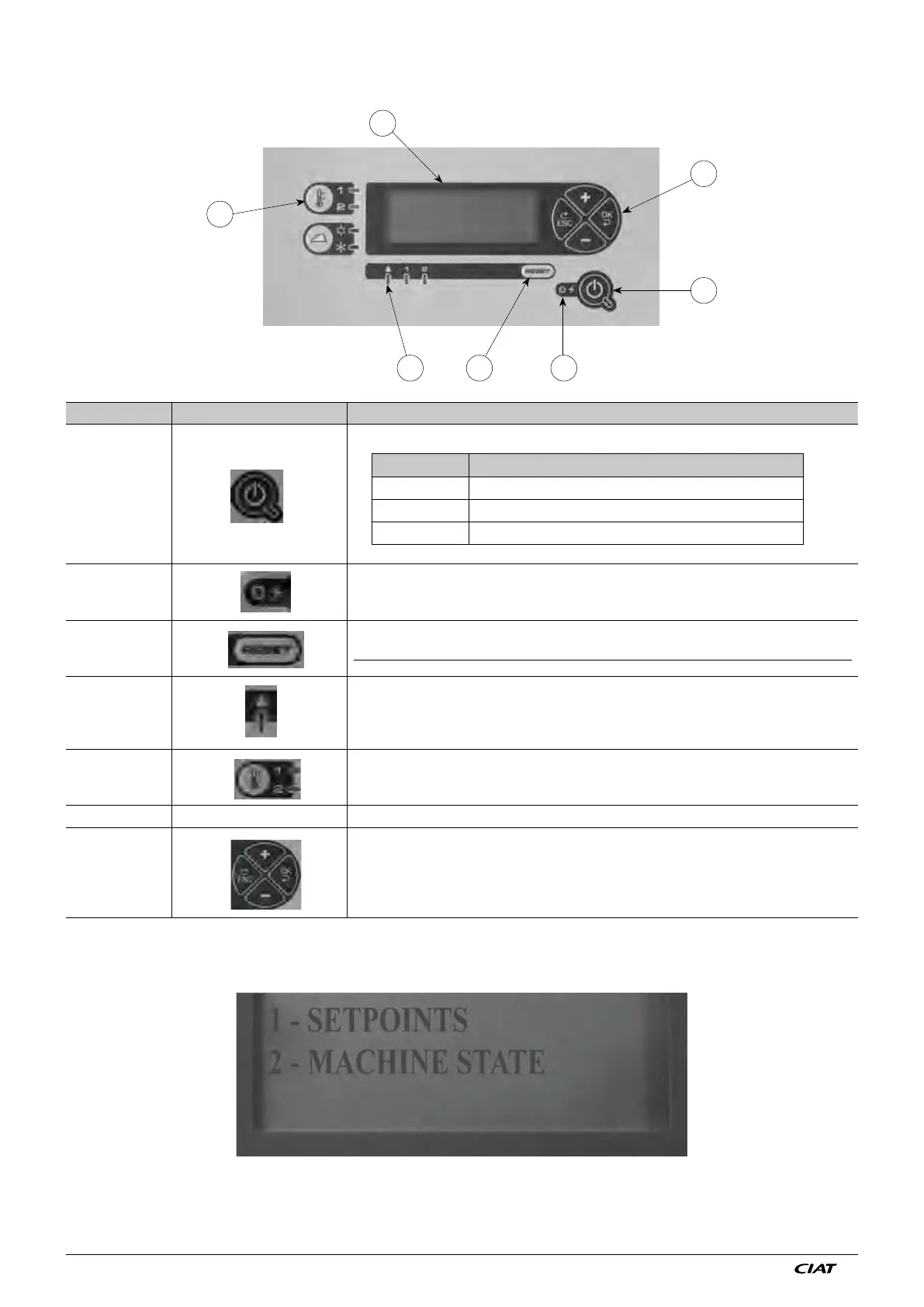

2.6 Description of the console (local and remote)
Identification Visual Function
A
On/off button
B LED on = system powered on
C
Fan fault acknowledgment
D
*LED on = fault
E
Press this button to select setpoint 1 or 2
The LEDs show the active setpoint.
F Display screen
G Menu navigation buttons: see section "3 - Navigating through the menus"
LED state Meaning
Off Machine stopped
On Machine operating
Flashing Machine stopped by automatic operation control
G
A
BC
D
F
E
