7 - DRYCOOLER CONFIGURATION

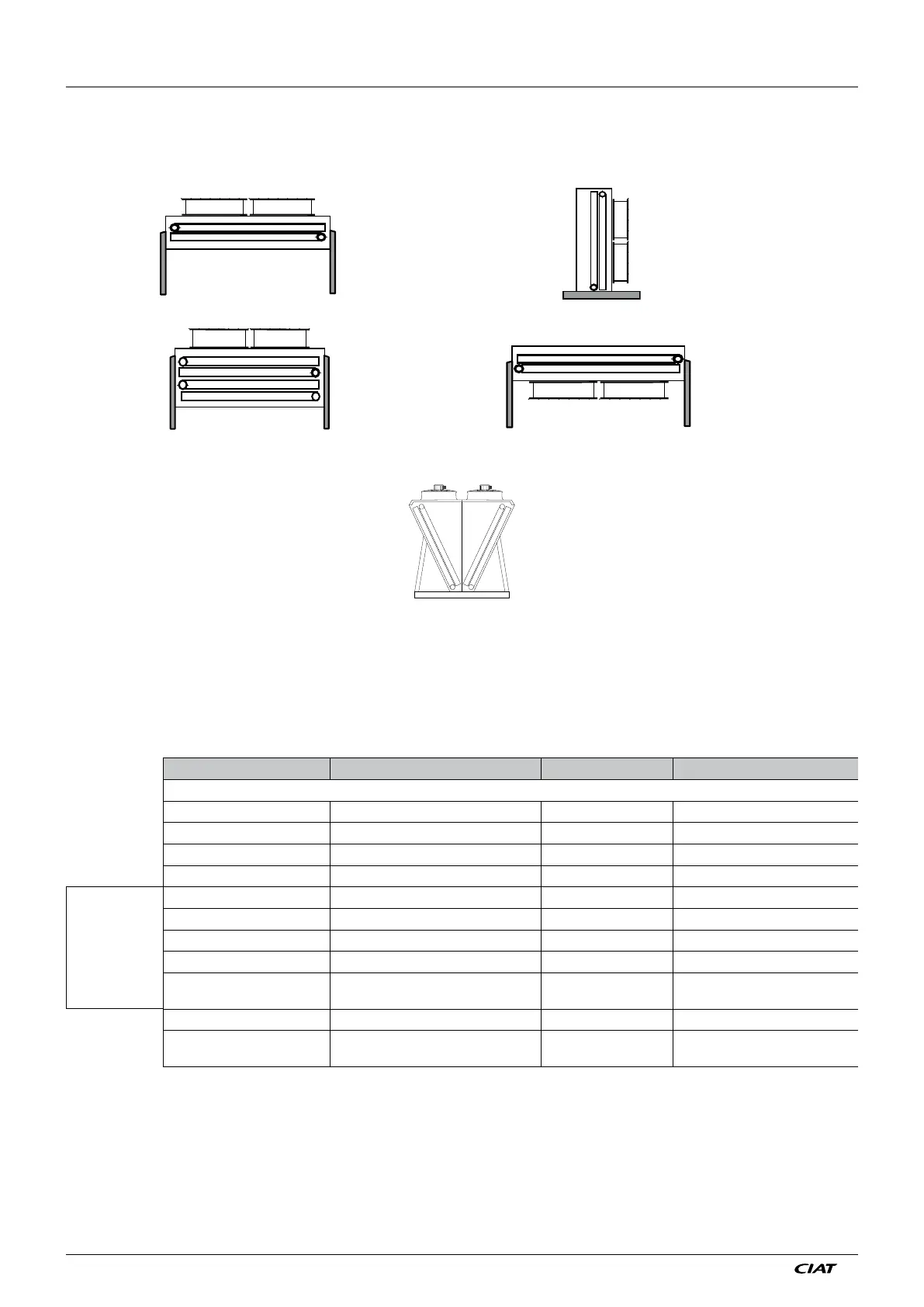

7.1 Configurations
Application: drycooler with one or two coils
7.2 System start-up and configuration
● Powering on the unit:
The screen displays: "machine stopped on/off" in the [2-Machine status] menu
Press ESC to go back to the menu list.
● Main parameters to be set:
Select the [5-Settings parameters] menu.
For information on navigating, go to the "control console/navigation" section.
Parameter No. Description Default values Display conditions
Menu 5: Settings parameters
A100 Language EN
A103 Console control type local
A104 Communication mode (baud) 9600 CMS
A105 Bus number 1 CMS
From V07
A106 Range without fan activation 2 Control = On/Off
A107 Activation time between stages 120 Control = On/Off
A108 Deactivation time between stages 120 Control = On/Off
A109 Operation Cooling
A109.1
Outdoor temperature warming operating
order
10
A110 Stage runtime balancing yes Control = On/Off (stages) or mixed
A111 Free cooling no
V-type or 1-coil unit/flatbed unit
without misting
(Induced draught)
Coil 2
Coil 1
Coil 2
Coil 1
(Forced draught)
Flatbed unit
V-type unit
