CIATCooler LP

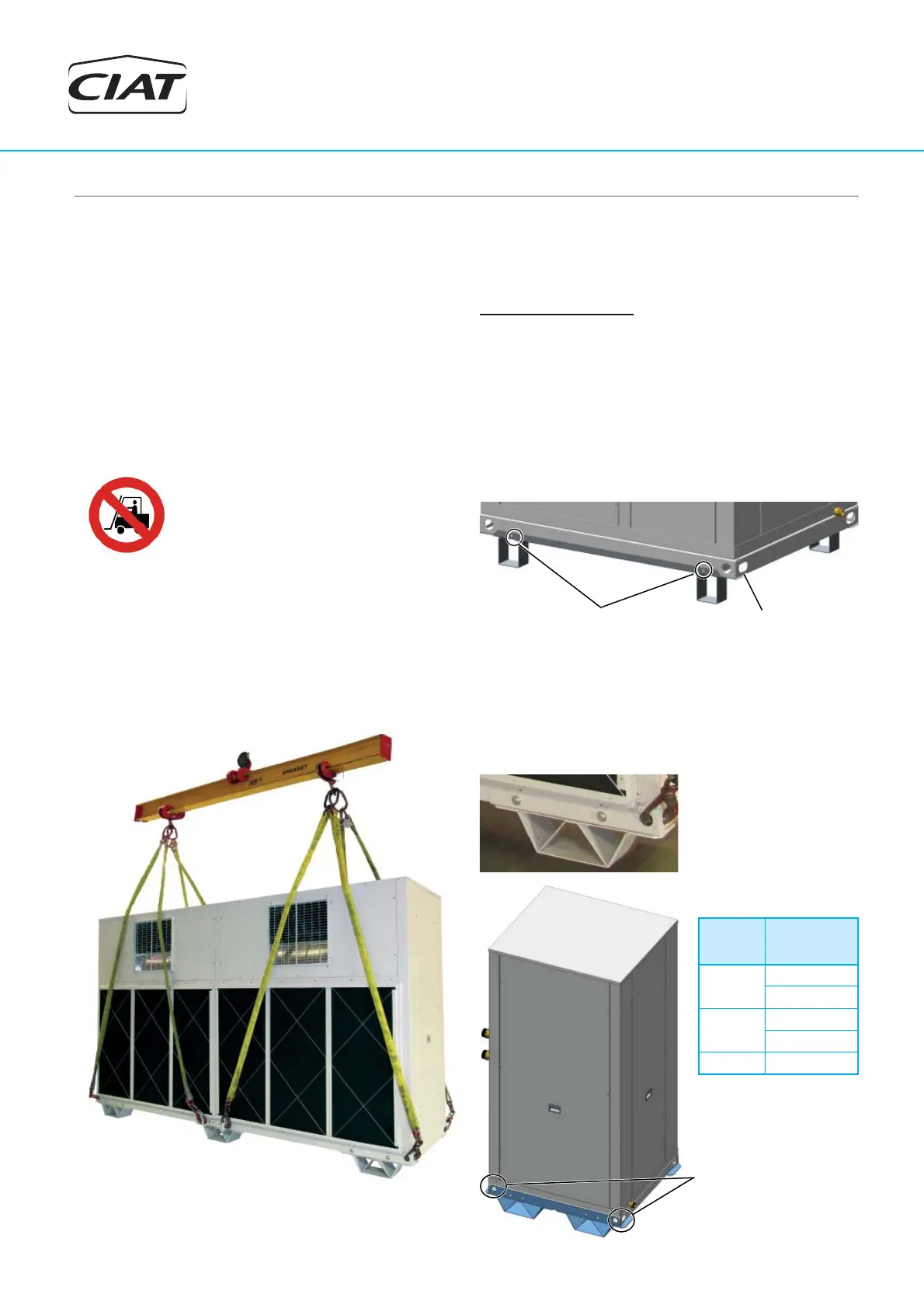

7. TRANSPORT
During the transportation, the unit must be immobilised in order to avoid
displacements or damages.
The unit must be handled carefully in order to avoid imperfections,
using adapted and standardised tools. We recommend:
- For transport in a container, one must be selected that has an easy
load and unload to the installation location.
- Do not dispose of the brackets or skids for transporting (according
to the model) until the unit is not in its fi nal location.
- Please see the weight and the gravity centre coordinates of each
model stated in the following section.
- Models 90 to 360 (STD version) and models 90 to 280 (HEE version)
can be handled with a forklift truck, taking all necessary precautions
to avoid sliding of the unit on the truck’s fork.
After the placing of the unit, it is recommended to remove the grips,
as they can be a hindrance for maintenance. Put them back in case
of unit transport.
Once the unit is discharged, it must be freed from the the brackets or
skids for transporting, so that the inserts available for the silent-blocks
can be accessed.
Transport skids
Skids for transporting in container are availables for models 420 to
960 (STD version) and models 320 to 720 (HEE version) and their
hydraulic modules.
These skids allow the dragging of the unit and facilitate both transport
and step through the doors to its fi nal location.
In the case of the separate
hydraulic module, skids
protrude 30 mm on each side.
Each skid is fixed to the
crossbar with 2 screws M10.
Height of the skid = 120 mm
Important: it’s strictly forbidden to manipulate
models 420 to 960 (STD version) and models 320
to 720 (HEE version) with a forklift truck, especially
by the long side of the machine.
- For lifting using a crane, cloth slings with rings of the appropriate
strength will be preferably used. These slings will be hooked onto
the two mounting holes located on each crossbar.
If chains are used instead of slings, these must be separated by
means of a strut or structure with a length exceeding the width of
the machine to avoid damaging the bodywork.
Models 420 to 960 (STD version) and models 320 to 720 (HEE
version), include two grips for hooking other two slings in the middle
of the crossbar, due to its length (see image).
No. of
skids per
crossbar
CIATCooler
LP / LPC
3
STD: 420 to 720
HEE: 320 to 600
4
STD: 840 to 960
HEE: 640 to 720
2 Hydraulic module
Note: The central grips stands out 74mm.
Attention: Ensure that the units with lifting grips are properly
tightened before attaching the slings.
M4 screws for fi xing the brackets
Mounting hole
Placement on site
Transport brackets
Transport brackets are availables for models 90 to 360 (STD version)
and models 90 to 280 (HEE version) and their hydraulic modules..
Each bracket is fi xed to the crossbar using 2 M4 screws. Height of the
bracket = 106 mm
