Water chillers and
air-water heat pumps
HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE - NA 12.122 H
16
CIATCooler LP
Location designation
Before moving the unit, it must be checked that all panels are fastened
in place. Lift and lower with care.
When choosing the location, whatever may be the selected fashion, the
following precautions have to be taken into consideration:
- It is mandatory to comply with norm EN 378-3 on Safety and Envi-
ronmental Requirements. Part 3: "In situ" installation and protection
to people.
- Foresee appropriate damping devices in all the installation so that
noise and vibration transmission is avoided (refer to the “Anchorage
for antivibrators”).
- Check that the unit is perfectly levelled.
- It is necessary to check that the surface of the fl oor or the structure
8. LOCATION AND ASSEMBLING

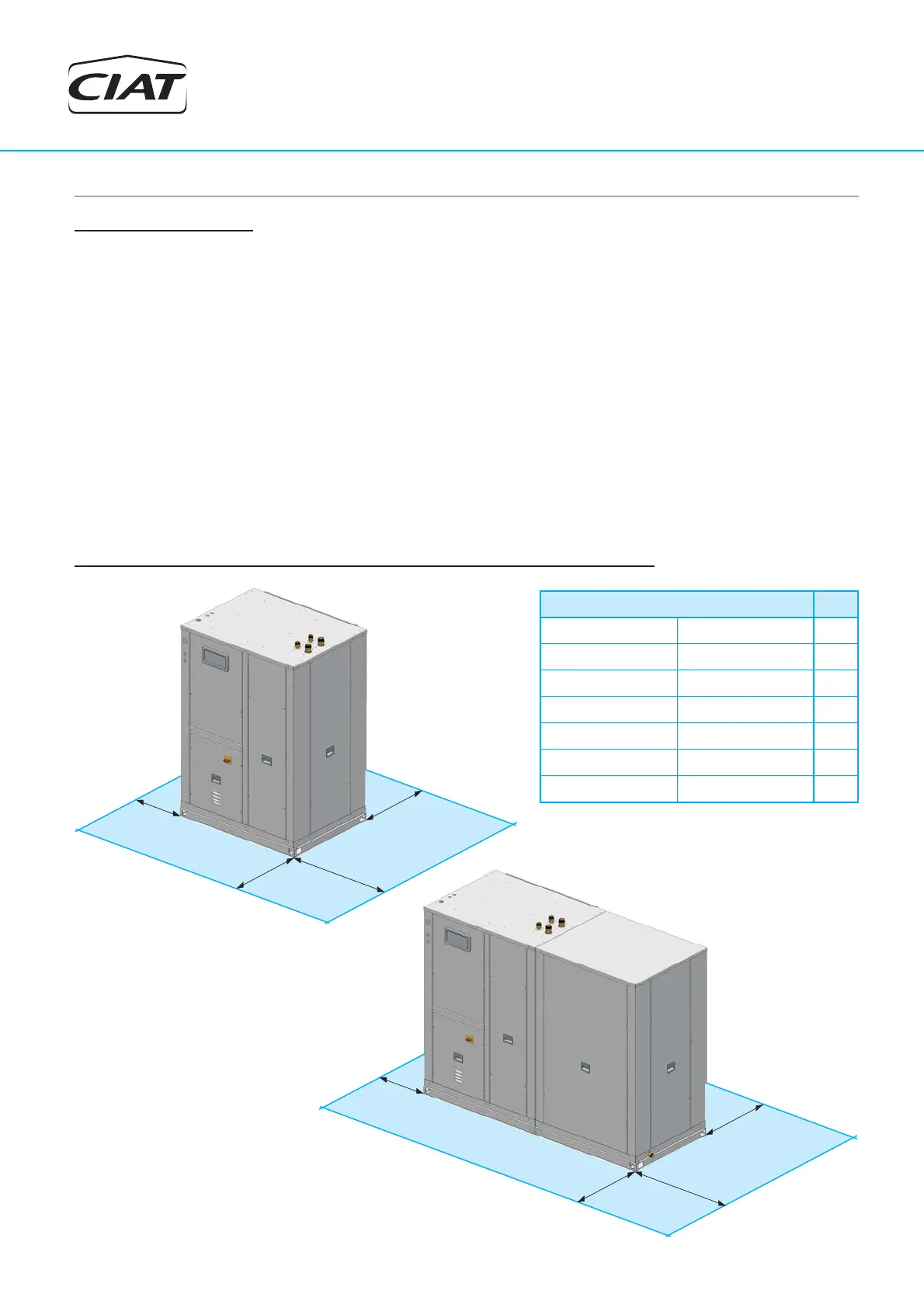

Minimum free space for commissioning and maintenance operations
supports the weight of the unit (please, consult the weight of the unit
in the section “Anchorage for antivibrators”).
- The area where the unit will be located must be perfectly accessible
for cleaning and maintenance operations (check minimum free space
for maintenance). Leave enough space for air circulation around the
unit.
Since it is a unit designed to work indoors, some specifi c installation
norms must be followed:
- Ensure that the location of the outlet and return grilles does not
generate air recirculation.
- Check that there are no obstructions in the air outlet and return grille
slats due to being tightly closed.
1m
1m
1m
1m
0,5m
0,5m
A
A
LP / ILP / LPC / ILPC
LPC / ILPC + module
CIATCooler LP / ILP / LPC / ILPC A (m)
90V-STD to 100V-STD 90V-HEE
1,2
120V-STD to 180V-STD 100V-HEE to 120V-HEE
1,5
200V-STD 160V-HEE to 180V-HEE
1,2
240V-STD to 360V-STD 200V-HEE to 280V-HEE
1,5
420V-STD to 600V-STD 320V-HEE to 360V-HEE
1,8
640V-STD to 720V-STD 420V-HEE to 600V-HEE
1,9
840V-STD to 960V-STD 640V-HEE to 720V-HEE
2,4
