CIAT LP Series - Anchorage for Antivibrators

HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE - NA 12.122 H
Water chillers and
air-water heat pumps
17
CIATCooler LP

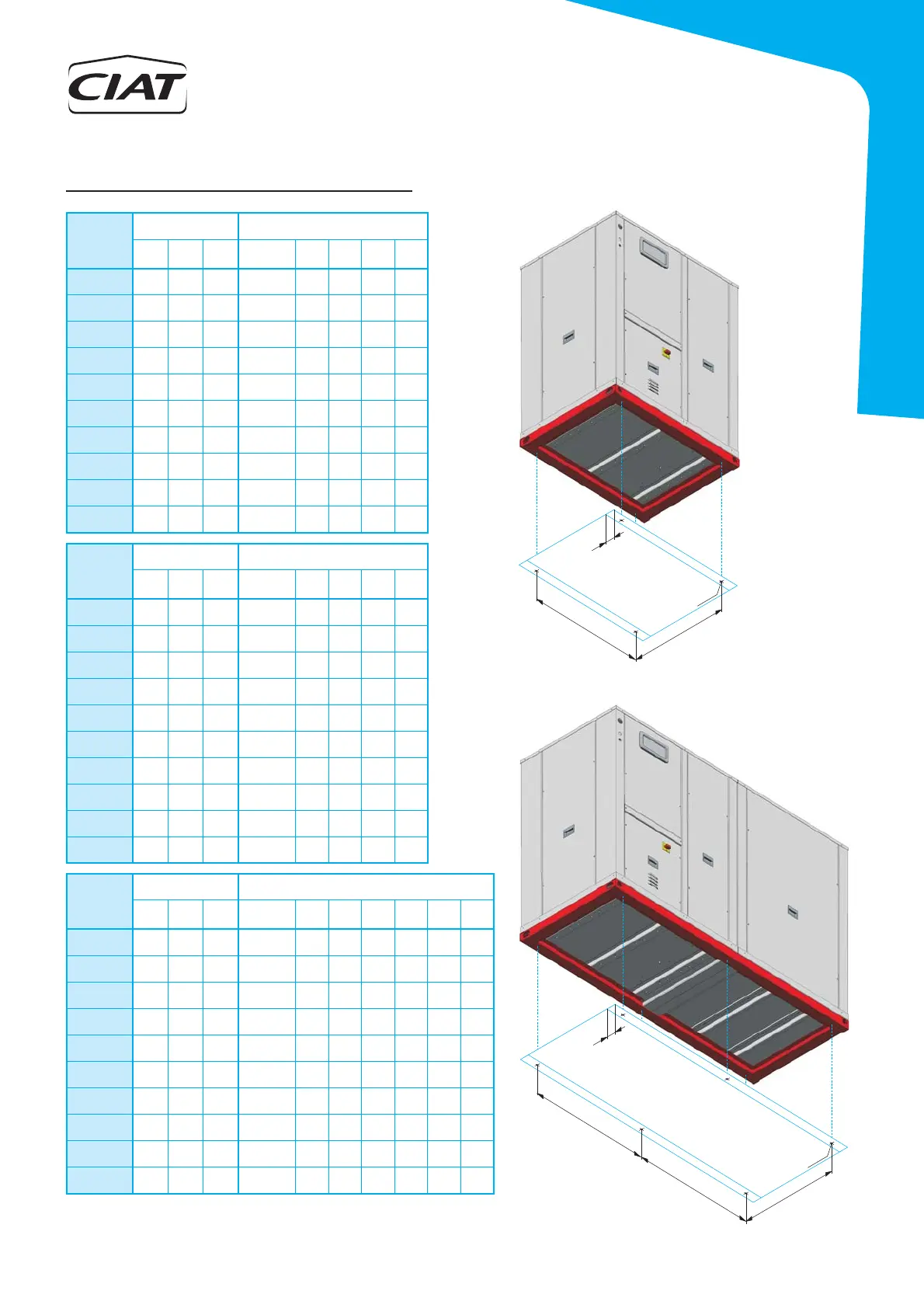

Anchorage for antivibrators: STD version
Note: all the anchorings are rivet nut types.
LPC / ILPC
+ hydraulic
module
Distances (mm) Reactions in the supports (kg)
ABC
Weight in
service
R1 R2 R3 R4 R5 R6
90V-STD
948 760 65 577 51 142 108 43 134 100
100V-STD
948 760 65 587 47 144 112 40 137 106
120V-STD
1085 760 65 726 67 178 130 59 170 121
160V-STD
1085 760 65 744 66 183 136 58 174 127
180V-STD
1085 760 65 745 68 183 136 58 174 126
200V-STD
1446 760 65 1015 91 240 168 97 246 173
240V-STD
1726 760 65 1105 106 263 178 110 266 182
280V-STD
1726 760 65 1139 110 271 184 113 274 188
320V-STD
1726 760 65 1178 115 282 192 116 282 192
360V-STD
1726 760 65 1183 115 283 193 115 283 194
LPC / ILPC
Distances (mm) Reactions in the supports (kg)
ABC
Weight in
service
R1 R2 R3 R4
90V-STD
896 760 65 335 81 97 86 71
100V-STD
896 760 65 345 82 99 90 73
120V-STD
1166 760 65 410 99 117 107 87
160V-STD
1166 760 65 428 102 124 113 90
180V-STD
1166 760 65 429 104 123 111 91
200V-STD
1892 760 65 622 137 167 174 144
240V-STD
2452 760 65 702 154 194 197 157
280V-STD
2452 760 65 736 161 203 207 165
320V-STD
2452 760 65 774 175 211 212 176
360V-STD
2452 760 65 780 176 214 214 176
LP / ILP
Distances (mm) Reactions in the supports (kg)
ABC
Weight in
service
R1 R2 R3 R4
90V-STD
896 760 65 306 66 101 87 52
100V-STD
896 760 65 315 69 93 84 60
120V-STD
1166 760 65 379 89 112 101 77
160V-STD
1166 760 65 397 92 119 107 79
180V-STD
1166 760 65 396 93 119 105 79
200V-STD
1892 760 65 579 121 162 166 127
240V-STD
2452 760 65 659 140 187 190 142
280V-STD
2452 760 65 692 147 197 199 149
320V-STD
2452 760 65 728 160 205 204 159
360V-STD
2452 760 65 733 161 207 206 159
B
A
C
M10
R1
R2
R3
R4
LP / ILP / LPC / ILPC:
Models 90 to 360
B
A
A
C
M10
LPC / ILPC:
Models 90 to 360
with hydraulic module
