HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE - NA 12.122 H
Water chillers and
air-water heat pumps
13
CIATCooler LP
Note: The serial number must be used in all correspondence
regarding the unit.

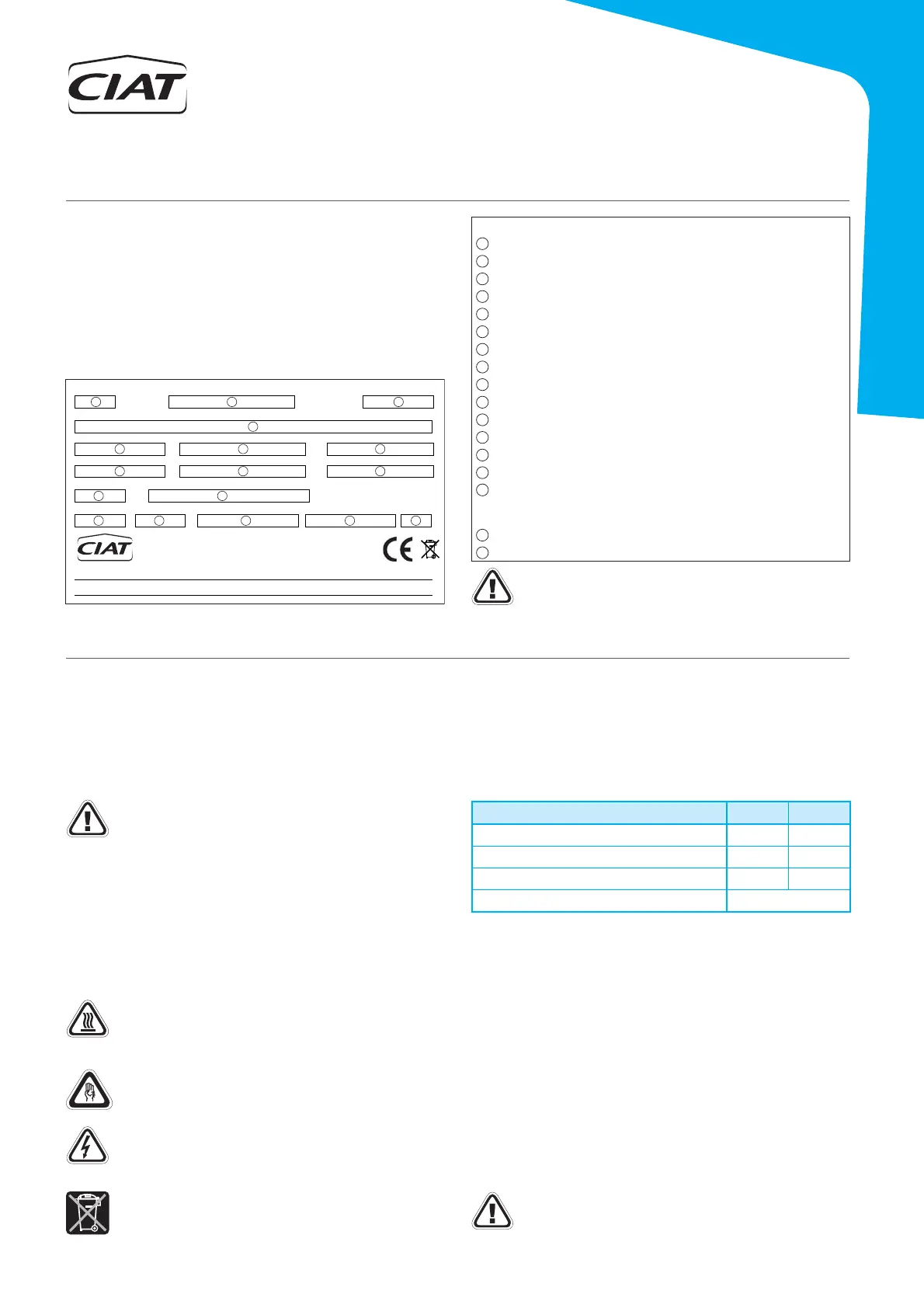

All units bear, legibly and indelibly, a data plate located in a prime space,
as appears in the attached image: Check that this plate matches the
correct model.
5. UNIT IDENTIFICATION
Check the condition of the equipment upon delivery.
Check that the details on the label, the packing and the data plate match
the order. If equipment has been damaged, or there is a shortfall in
delivery, notify accordingly.
These units work with refrigerant gas
R-410A.
6. SAFETY ADVICE
To avoid any risk of accident during installation, commissioning or
maintenance, it is obligatory to take into consideration the following
specifi cations for the units: refrigerated circuits under pressure, refrigerant
presence, electrical voltage presence and implantation place.
Because of all of this, only qualifi ed and experienced personnel can
perform maintenance tasks or unit repairs.
It is required to follow the recommendations and instructions
in the maintenance brochures, the labels, and the specifi c
instructions.
It is necessary to comply with the norms and regulations
in effect. It is recommended to consult the competent
authorities regarding the applicable regulations for users
of units or components under pressure. The characteristics
of these units or components are included on the plates of
characteristics or in the regulatory documentation provided
with the product.
In case of a leak:
- Toxicity: According to ASHRAE 34, R-410A belongs to the A1/A1 group,
i.e. with high safety both in the mix and also in the case of a leak.
- Although it is not toxic, in case of a leak to atmospheric pressure the
liquid phase evaporates. The resulting vapours are heavier than air
and can displace the technician local air. In case of an accidental
discharge in a closed enclosure, fans must be used to eliminate said
vapours.
- Although the R-410A is not fl ammable, when in contact with a fl ame
o hot spot it can decompose in fl uorhydric acid HF and fl uophosgene
COF
2
highly toxic and corrosive.
- To detect leaks, an electronic leak detector, an ultraviolet lamp or
soapy water must be used . Flame detectors do not help.
Important: Immediately repair any refrigerant leak, using
a recovery unit specifi c for R-410A that avoids a possible
mixture of refrigerants and/or oils.
The compressor and line surfaces can reach temperatures
above 100ºC causing burns to the body. In the same fashion,
under certain conditions these surfaces can reach very cold
temperatures that can cause freezing risks.
Use safety goggles and gloves on the job. Be careful with
sharp parts or elements in the unit.
V-220005
V-220004
Caution: Before intervening in the unit, verify that the main
power to the unit is cut off. An electric shock can cause
personal damage.
Refrigerant leaks:
A periodical check must be performed for refrigerant gas leaks as
per Regulation (CE) Nº517/2014 over certain greenhouse effect
fl uoride gases. Please, consult the frequency of checks in chapter
of “Maintenance”.
Components of the R-410A R-32 R-125
Chemical formula
CH2F2 CHF2CF3
Weight ratio
50% 50%
Unitary global warming potential (GWP)
675 3.500
Global warming potential (GWP)
2.088
Note: In order to recycle these units follow the stipulations
of Directive 2012/19/EU on Waste electrical and electronic
equipment (WEEE).
Ref\Reference No Serie\serial Nbr.Año\An.Year
Producto\Product\Produit
Ref. Produit\Item Nbr
Max.Intensidad\Intensité\CurrentKit Elec.Tension\Voltage
Refrig.KG (Fábrica\Factory\Usine)/Co2 Teq.Refrigerant
NoBoPeso\Poids\WeightPSmax(AP\HP) Temp. Max./ IPPSmax(BP\LP)
u
Fabricante\Fabricant\Manufacturer:
700, Av. Jean Falconnier Compañía Industrial de Aplicaciones Térmicas, S.A.
01350 Culoz - FRANCE P. Ind. Llanos de Jarata s/n. 14550 Montilla-SPAIN
Contient des gaz à effet de serre fluorés \ Contains fluorinated greenhouse gases regulated by the Kyoto protocol
Contiene gases fluorados de efecto invernadero regulados por el protocolo de Kyoto
1
16
2 3
4
5 6 7
8 9 10
11 12
13
14 15 17
Legend
1
Year of manufacture
2
Commercial product name
3
Serial number
4
Description of the product
5
Purchase order number
6
Sales order number
7
Work order number
8
Power supply
9
Power output of the auxiliary electrical heaters kit (optional) (kW)
10
Maximum absorbed current under full load (A) ( including the electrical kit)
11
Type of refrigerant
12
Refrigerant content (kg) and Environment impact (CO
2
Teq.)
13
Maximum service pressure in the high pressure side (R-410A = 42 bar)
14
Maximum service pressure in the low pressure side (R-410A = 24 bar)
15
Maximum operating temperature (refer to “Opration limits”)
Maximum shipment and storage temperature: +50ºC
Electrical protection rating: IP54
16
Operation weight (kg) (empty weight + fl uid + refrigerant)
17
Notifi ed Body number for surveillance of the Pressure Equipment Directive
