CIAT LP Series - 3 Available Configurations

Water chillers and
air-water heat pumps
HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE - NA 12.122 H
6
CIATCooler LP

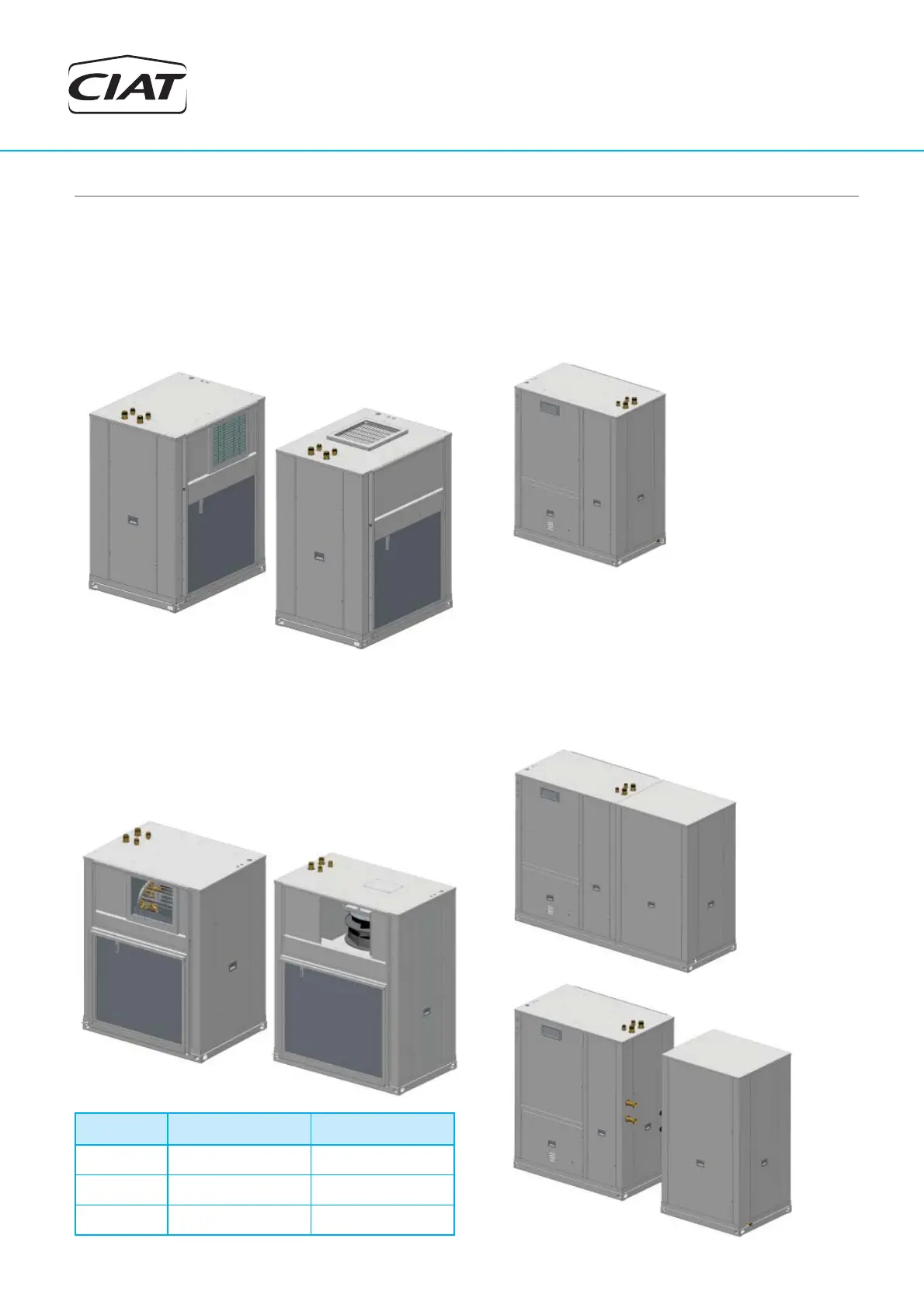

3. AVAILABLE CONFIGURATIONS
According to the air discharge:
• Assembly M00
HORIZONTAL air discharge: models 90 to 600 (STD version) and
models 90 to 360 (HEE version).
• Assembly M01
VERTICAL air discharge: all models.
According to the type of outlet fan:
• STD version (Standard):
Centrifugal fan coupling by pulleys and belts.
• HEE version (High Energy Effi ciency):
Variable speed electronic plug-fan.
M00
M01
According to the components of the hydraulic circuit:
• LP / ILP version
The unit incorporates only the plate exchanger.
• LPC / ILPC version with hiydraulic module
The unit incorporates, besides the motorpump group, a module with
a thermal buffer tank.
The module can be supplied:
- Coupled to the LPC / ILPC unit, models 90 to 360.
- Separate for connection on site by the installer. In this case, the
minimum distance between the unit and the module is 167 mm.
• LPC / ILPC version
In addition to the plate exchanger, the unit includes a motorpump
group.
STD
HEE
Module
separate
Module
coupled
Models
STD version
(Standard)
HEE version
(High Energy Effi ciency)
1 circuit
1 compressor
90 / 100 / 120 / 160 / 180 90 / 100 / 120 / 160 / 180
1 circuit
2 compressors
200 / 240 / 280 / 320 / 360
420 / 480 / 600
200 / 240 / 280 / 320 / 360
420 / 480 / 600
2 circuits
4 compressors
640 / 720 / 840 / 960 640 / 720
