HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE - NA 12.122 H
Water chillers and
air-water heat pumps
31
CIATCooler LP

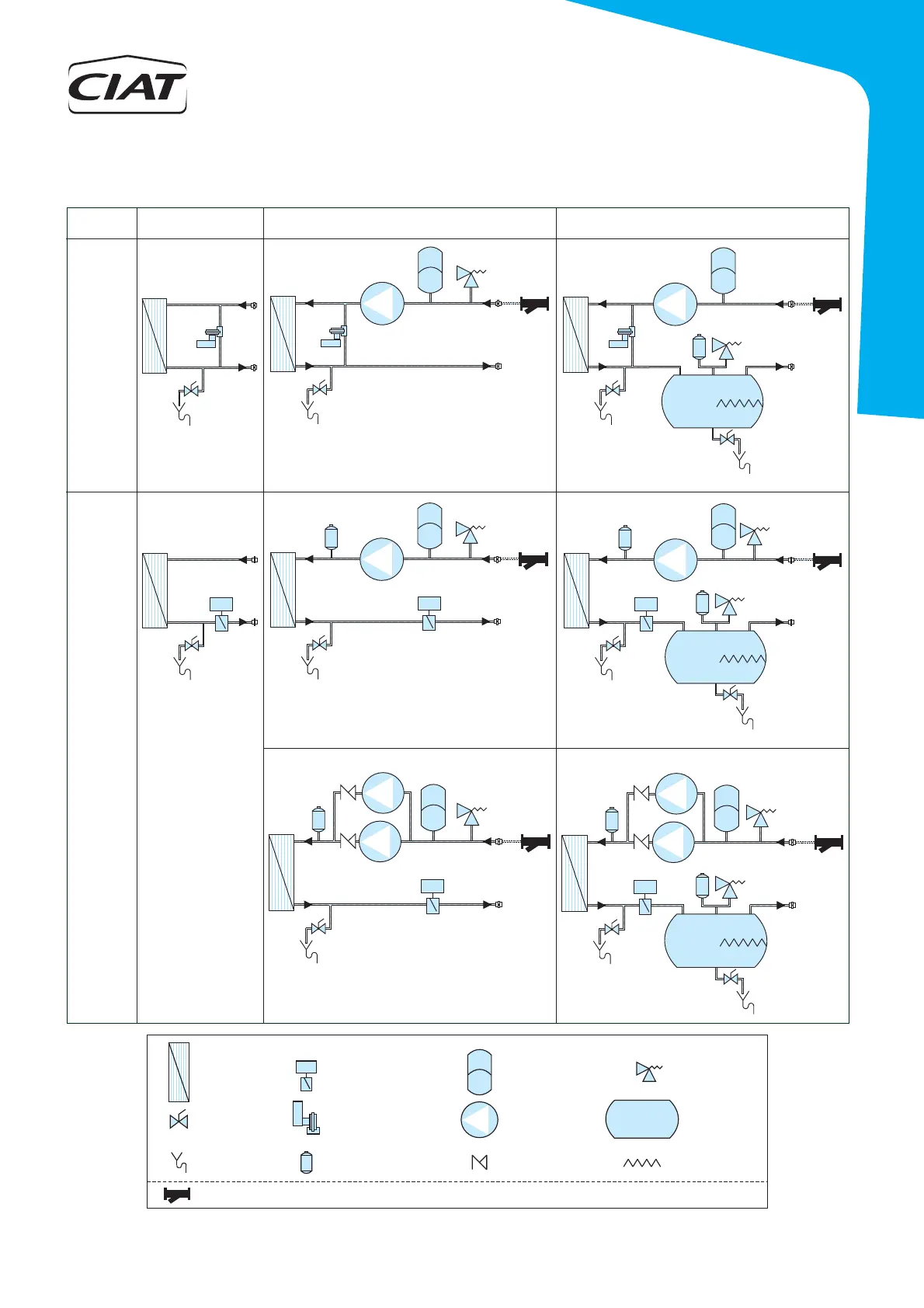

Schematic diagram of the hydraulic circuit
LPC / ILPC with hydraulic moduleLPC / ILPC with pumpLP / ILP
Single pump
Single pump
Double pump
Double pump
Cut-off and water regulation valves, as well as fl exible hydraulic connections, can also be supplied in the kit.
90V-STD
100V-STD
120V-STD
160V-STD
180V-STD
90V-HEE
100V-HEE
120V-HEE
160V-HEE
180V-HEE
200V-STD
240V-STD
280V-STD
320V-STD
360V-STD
200V-HEE
240V-HEE
280V-HEE
320V-HEE
360V-HEE
MESH FILTER, SUPPLIED IN KIT FOR INSTALLATION BY THE CLIENT IN LPC / ILPC. OPTIONAL FOR LP / ILP.
DIFFERENTIAL
PRESSURE CONTROL
PLATES
EXCHARGER
EXPANSION
VESSEL
FLOW
SWITCH
SHUT-OFF
VALVE
DRAINAGE
CIRCUIT
SAFETY
VALVE
NO RETURN-
VALVE
AIR BLEEDER
VALVE
CIRCULATOR
PUMP
T
BUFFER
ANK
ELECTRICAL
HEATER
