Water chillers and
air-water heat pumps
HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE - NA 12.122 H
40
CIATCooler LP
Models 200 to 360 STD
Models 160 to 280 HEE
Models 90 to 180 STD
Models 90 to 180 HEE
Models 420 to 600 STD
Models 320 to 360 HEE
Models 640 to 960 STD
Models 420 to 720 HEE

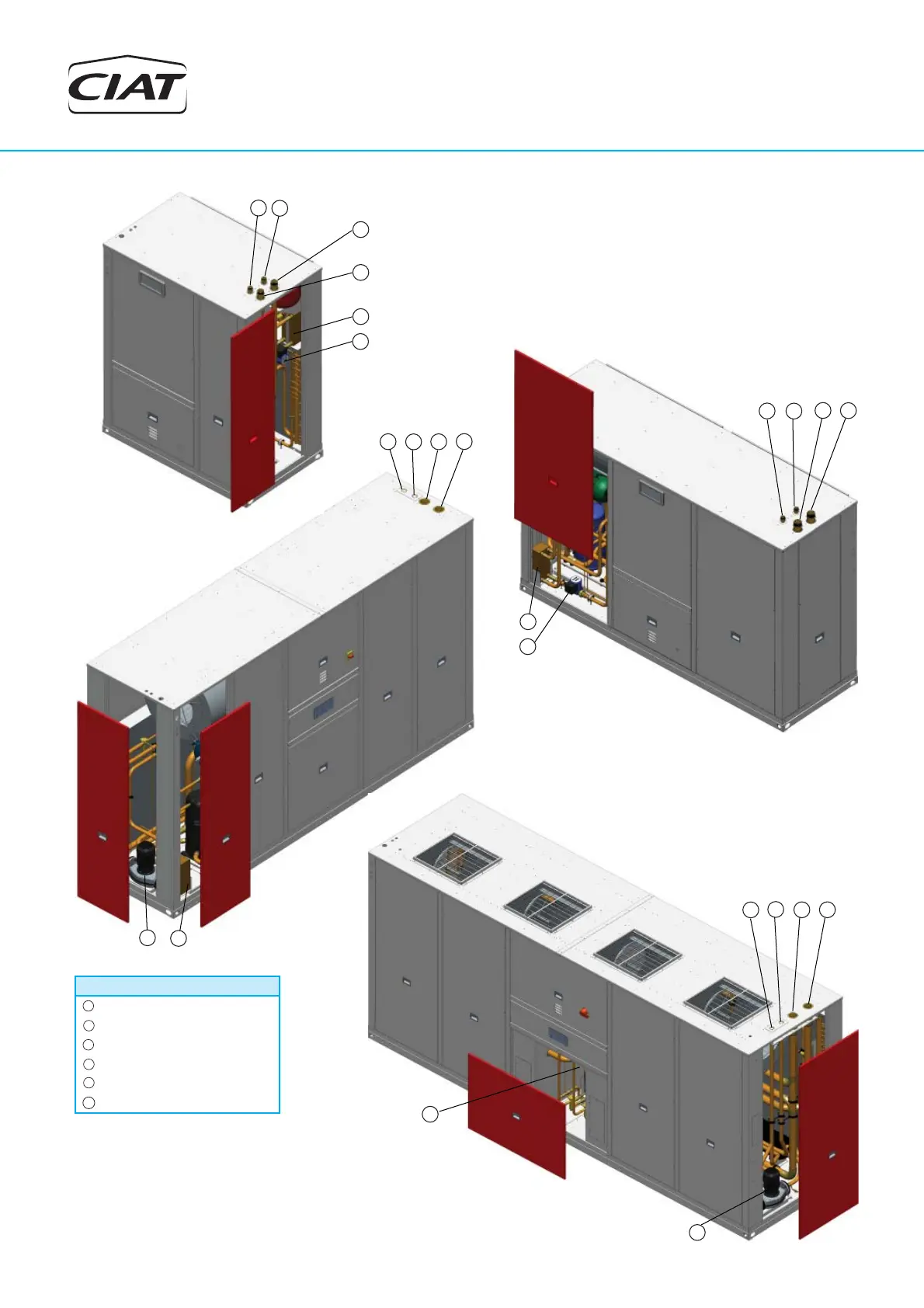

LEGEND
1
Water inlet to the indoor circuit
2
Water outlet from the indoor circuit
3
Water outlet from the recovery circuit
4
Water inlet to the recovery circuit
5
Plate exchanger
6
Circulation pump (optional)
3
4
1
2
5
6
3
4
1
2
5
6
3
4
1
2
5
6
3
4
1
2
5
6
Notes:
- In models 640 to 960 (STD version) and 420
to 720 (HEE version) with circulation pump
in the recovery circuit and hydraulic module
(optional), should be free space between the
unit and the module for access to the pump.
- In models 640 to 960 (STD version) and 420
to 720 (HEE version), access instructions to
the recovery exchanger are explained in the
chapter “Maintenance”.
Hydraulic connections of the recovery circuit
