KEY SPARE PARTS 9-2 0-5492
9.02 WeldSkill 185 Key Spare Parts
Art # A-13451
3
6
7
5
2
1
4
8

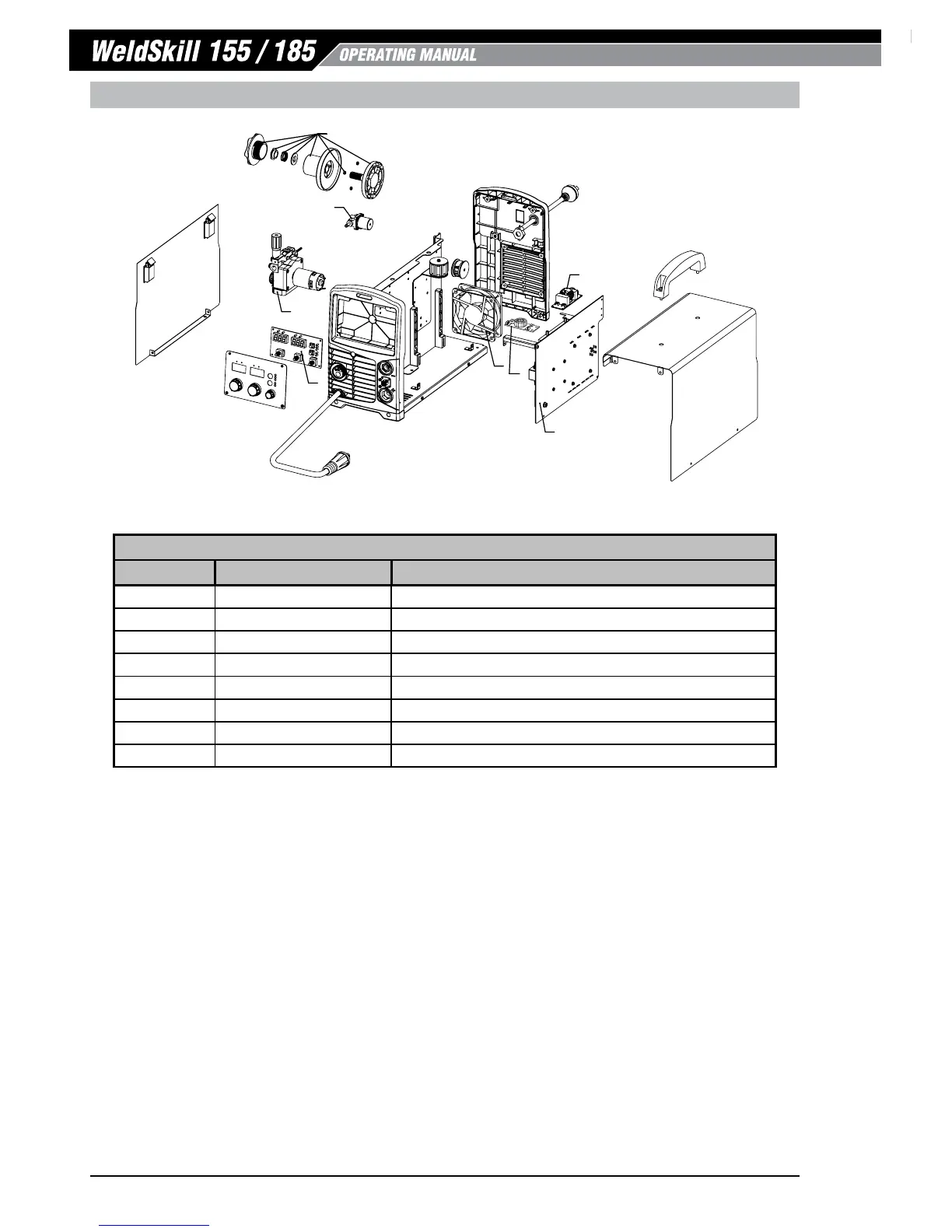

Figure 9-2
WELDSKILL 185 POWER SOURCE KEY SPARE PARTS
ITEM PART NUMBER DESCRIPTION
1 W7006880 PCBA Power Inverter
2 W7006881 PCBA Front Panel
3 W7006806 PCBA EMC Filter
4 W7006867 Fan Assembly
5 W7006868 Wire Drive Assembly
6 W7006869 Gas Solenoid Valve 24VDC
7 W7006870 Spool Hub Assembly
8 W7006884 PCBA Wire Feed Filter
Table 9-2
