SECTION 9: KEY SPARE PARTS
9.01 WeldSkill 155 Key Spare Parts
Art # A-13452
3
6
5
2
1
4
8

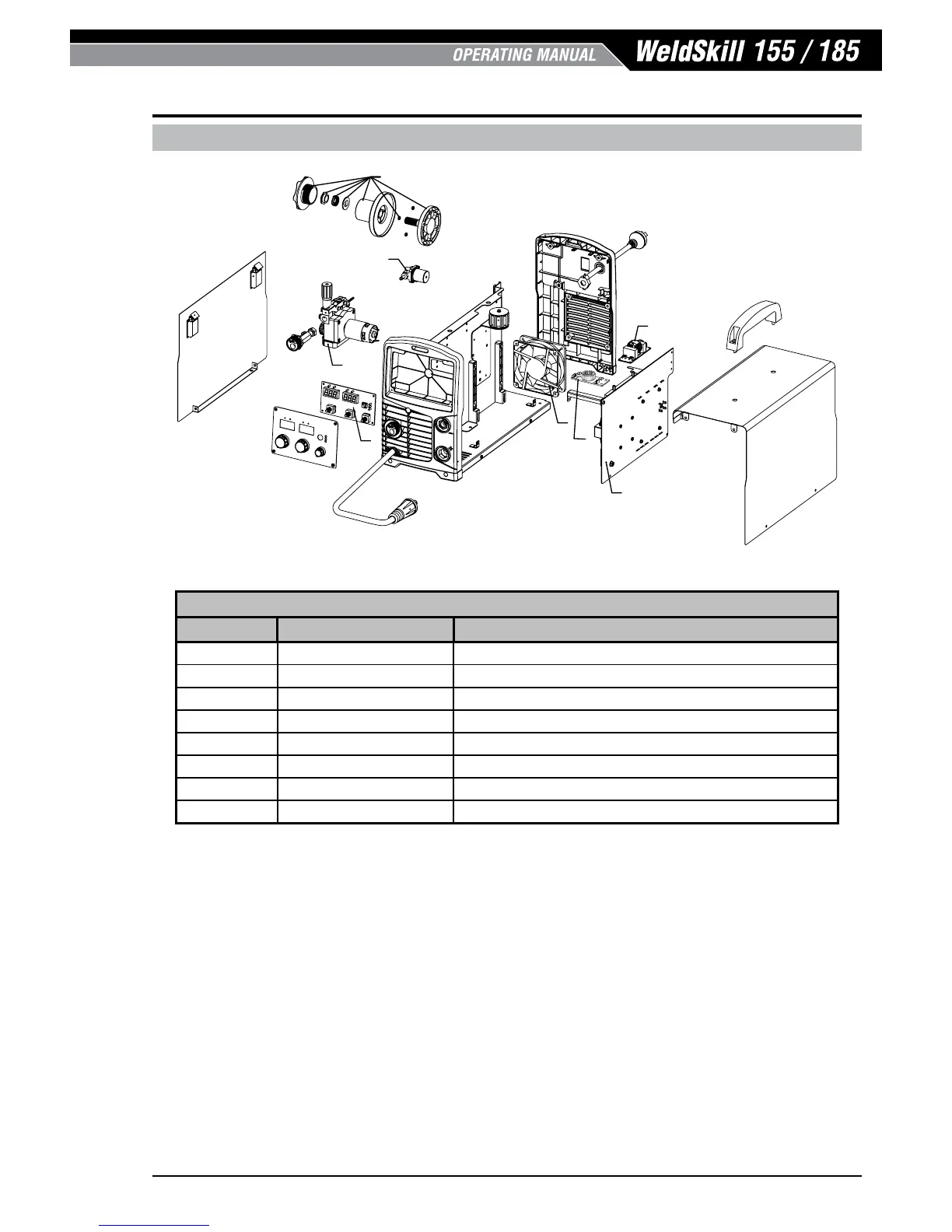

Figure 9-1
WELDSKILL 155 POWER SOURCE KEY SPARE PARTS
ITEM PART NUMBER DESCRIPTION
1 W7006865 PCBA Power Inverter
2 W7006866 PCBA Front Panel
3 W7006806 PCBA EMC Filter
4 W7006867 Fan Assembly
5 W7006868 Wire Drive Assembly
6 W7006869 Gas Solenoid Valve 24VDC
7 W7006870 Spool Hub Assembly
8 W7006884 PCBA Wire Feed Filter
Table 9-1
