SYSTEM DIAGRAMS
REFRIGERATION SCHEMATIC SYMBOLS

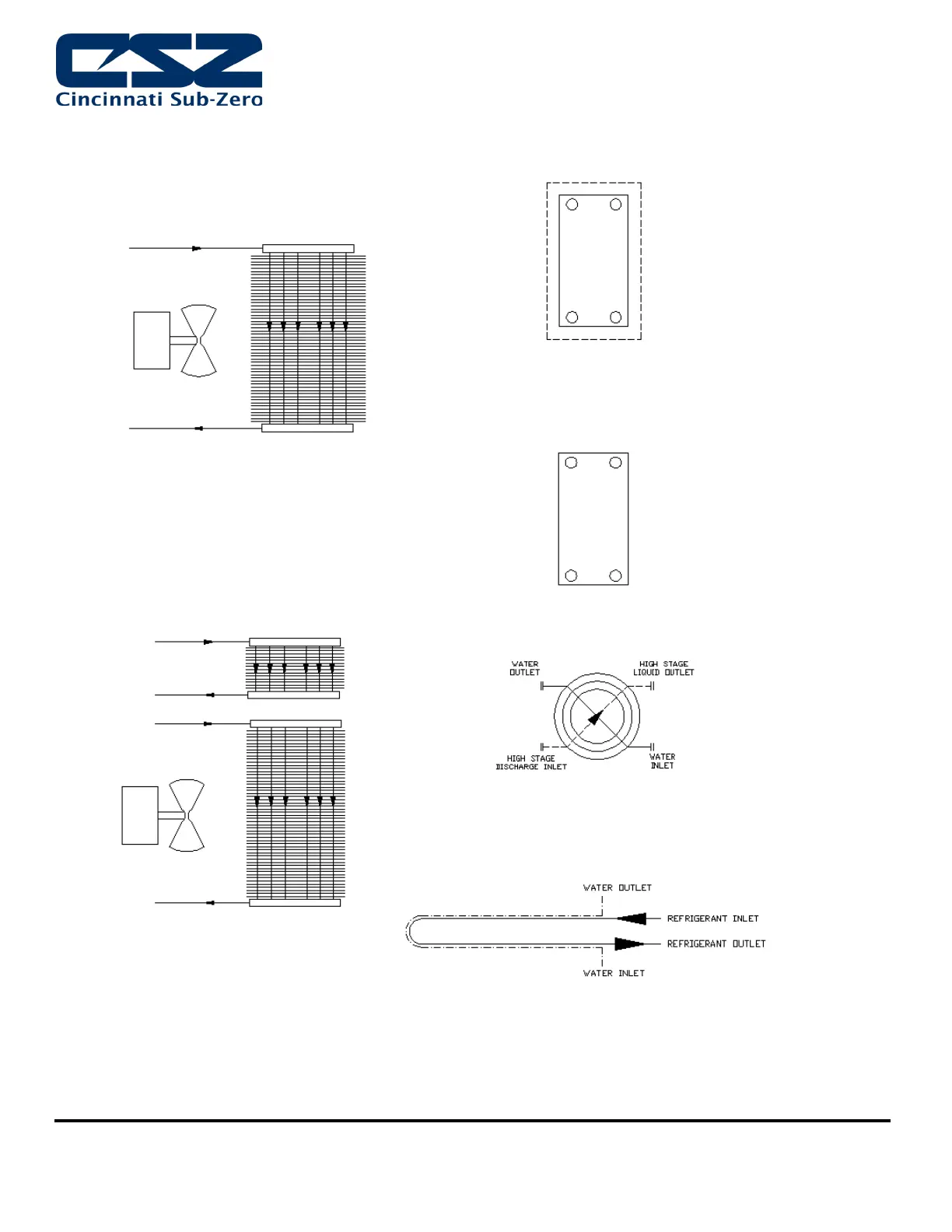

Figure 9-2: Symbols used on Refrigeration Diagrams (Continued)
HEAT EXCHANGER AIR COOLED CONDENSER
WITH FAN AND MOTOR ASSEMBLY
(SINGLE STAGE & TUNDRA)
HEAT EXCHANGER AIR COOLED CONDENSER
WITH SEPARATE DESUPERHEATER CIRCUIT,
FAN AND MOTOR ASSEMBLY
(CASCADE SYSTEMS)
BRAZED PLATE HEAT EXCHANGER
(CASCADE CONDENSER WITH INSULATION KIT)
BRAZED PLATE HEAT EXCHANGER
(WATER COOLED CONDENSER, DESUPERHEATER, ETC..)
COAXIAL HEAT EXCHANGER
(WATER COOLED CONDENSER)
U-TUBE HEAT EXCHANGER TUBE IN TUBE
(WATER COOLED DESUPERHEATER)
