Cinderella FREEDOM - Repairs and Spare Parts; Spare Parts List

29
8
9
4
4
18
3
13
2
12
14
20
7
1
19
5
6
15
17
16
10 11
ID PART DESCRIPTION ART. NO
1 Control panel 100981
2 Magnet 14x10mm 100433
3 Hall sensor w/ wire and tape L= 330mm 100964
4 Micro switch 101127
5 Motor Nidec 12/24VDC 101177
6 Fan axial 12VDC 119x38mm 100154
7 Thermocouple assembly 100831
8 Stop bracket 9x26x12mm 100017
9 Magnet 14x7mm 100065
10 Circuit board gas 100989
ID PART DESCRIPTION ART. NO
11
Hall sensor
100228
12 Fan centrifugal 51x51x15 100542
13 Ignition unit Fenwal 100424
14 Gas nozzle 8 inches WC propane SM 101414
15 Insulation fabric 275x90x2mm 100163
16 Catalytic converter 90x75mm 100528
17 Ignition electrode 100196
18 Gas control – Maxitrol CV200 101224
19 Elbow ¼” BSP to ½” BSP 101754
20 Display LED 65 x 36 x 13 100401

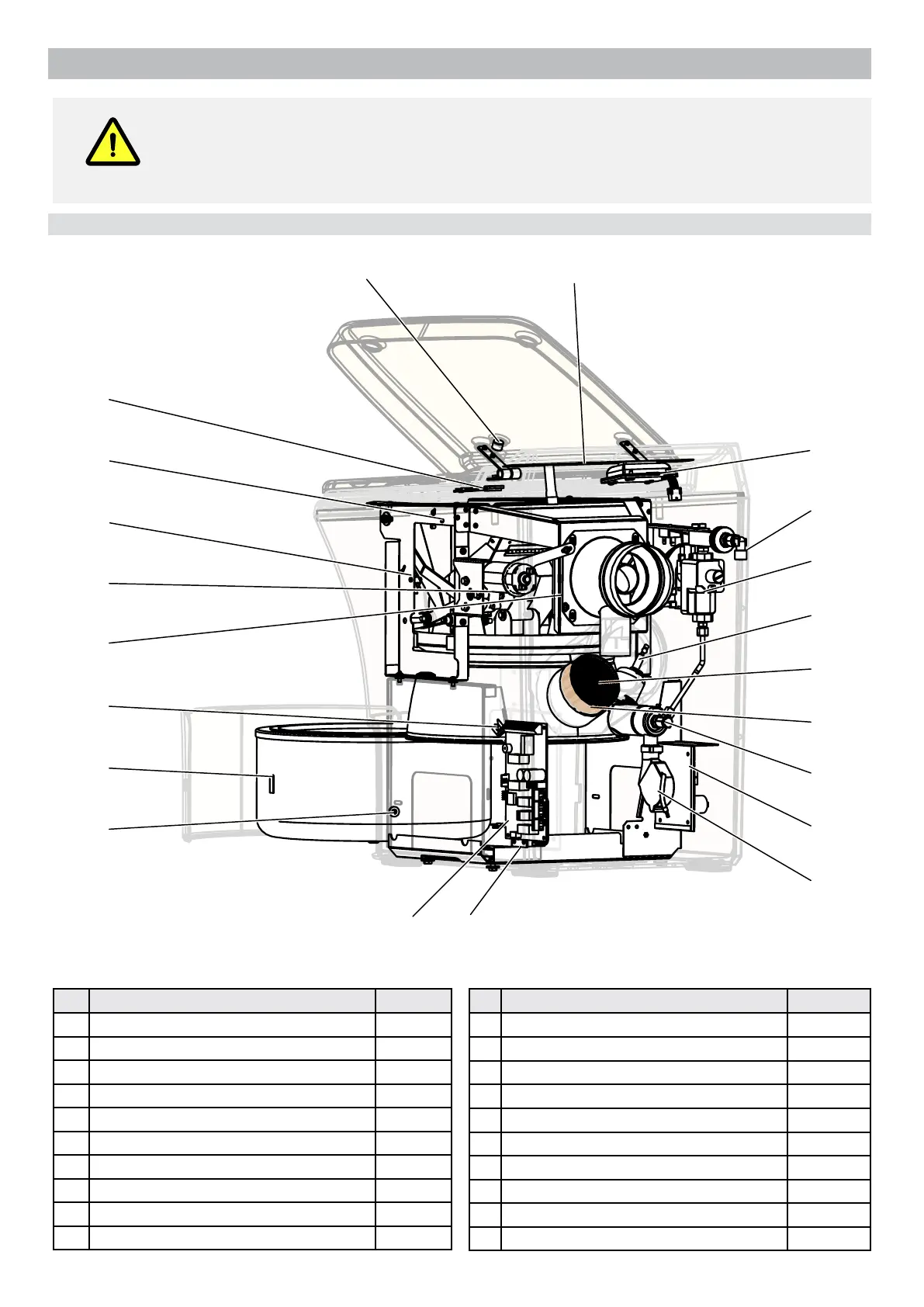

6. REPAIRS AND SPARE PARTS
6.1 SPARE PARTS LIST
CAUTION!
All service requiring the toilet to be disconnected from the ue pipe and-/or gas supply
should be performed in accordance with all state, municipal and local codes, and
AS/NZS 5601.1.
