9

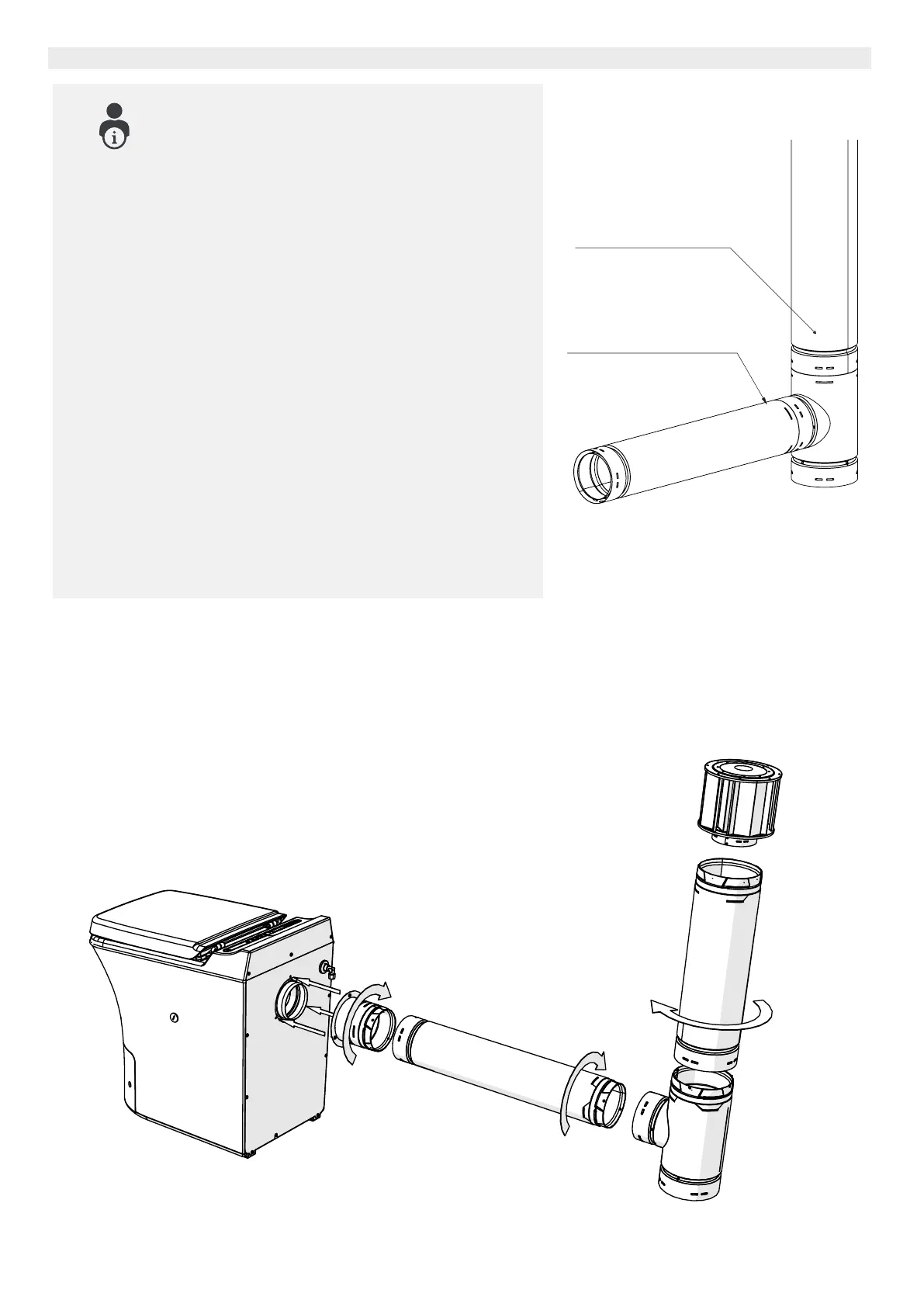

2.3.1 FLUE PIPE SPECIFICATION
A
B
C
D
Horizontal tubes
Ø117,5 mm (4 5/8")
Vertical tubes
Ø143 mm (5 5/8")
When installing the pipes, it is important to rst assemble the tee and horizontal pipe length, before mounting
the adapter to the toilet. This is to ensure that you get the correct starting point for the vertical pipe. When you
have the desired positioning of your pipes, you simply mount the adapter to the device by marking the hole
pattern on the back wall. Remove the adapter and drill the holes (3 mm) according to the markings, fasten the
adapter using the 3,5 mm screws supplied with the appliance.
A. Rotate horizontal pipe onto the reduction tee
B. Rotate adapter onto the horizontal pipe
C. Attach adapter to the appliance
D. Install the vertical pipes and ue terminal cap
NOTE!
• When installing the Cinderella Freedom
appliance, it is required to use 4 ‘’ pipes for
horizontal pipe section, and 5 ‘’ pipes for
vertical pipe section. This is to preserve an
optimal ow eect and ensure good product
functionality.
• The appliance is delivered with specially
adapted parts from DuraVent: adapter,
Increaser tee and ue terminal, to be
used upon installation of the product. It is
important to calculate the length of vertical
and horizontal pipe sections in accordance
with local regulations and the instructions
given in this manual.
• The DuraVent Type B round pipes are
designed with a screw coupling system which
makes it easy to rotate the various parts
together, but this means that you cannot cut
the pipes to the desired length. It is therefore
important to look at the instructions and
pipes lengths as set out in this manual, and
calculate which parts that are needed for the
installation of the toilet.
