25
A
Water regulating valve for the syringe in the first holder
B
Water regulating valve for the handpiece in the second holder
C
Water regulating valve for the handpiece in the third holder
D
Water regulating valve for the handpiece in the forth holder
E
Water regulating valve for the scaler in the fifth holder

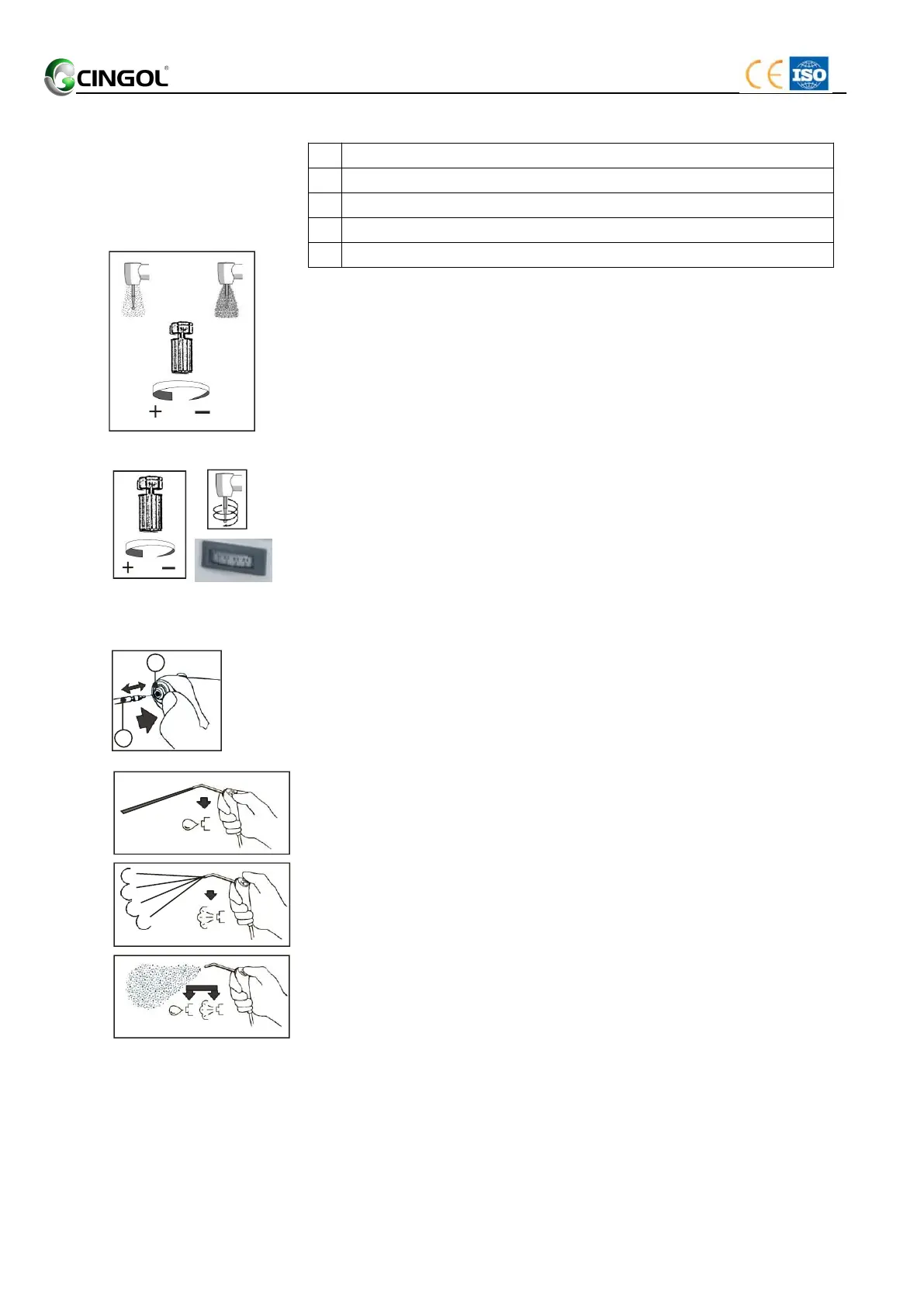

Setting the spray amount
The spray amount can be set by adjusting the water regulating valve
and the blowing air regulating valve.
1. Remove the handpiece from its holder.
2. Step on the air pedal and the water pedal at the same time.
3. Set spray amount by turning the knob of the water regulating valve
and the blowing air regulating valve.
Setting the handpiece’s working air pressure
1. Remove the handpiece from its holder.
2. Step on the air pedal.
3. Set the working air pressure displayed on the Gas-pressure meter
by turning the knob of the corresponding regulating valve.
4.4.7 3-way syringe
Removing/attaching the tip
4. Press the ring (A).
5. Removing/attaching the tip (B).
6. Loosen the thumb; the ring automatically resets. The tip will be
locked if it is attaching on the 3-way syringe.
Operating the 3-way syringe
 Press the water button. Water flows out the tip.
 Press the air button, Air flows out the tip. The 3-way syringe is
used as a chip blower.
 Press the water and air buttons simultaneously. Spray flows out
the tip.
A
B
Water
Air
Spray
