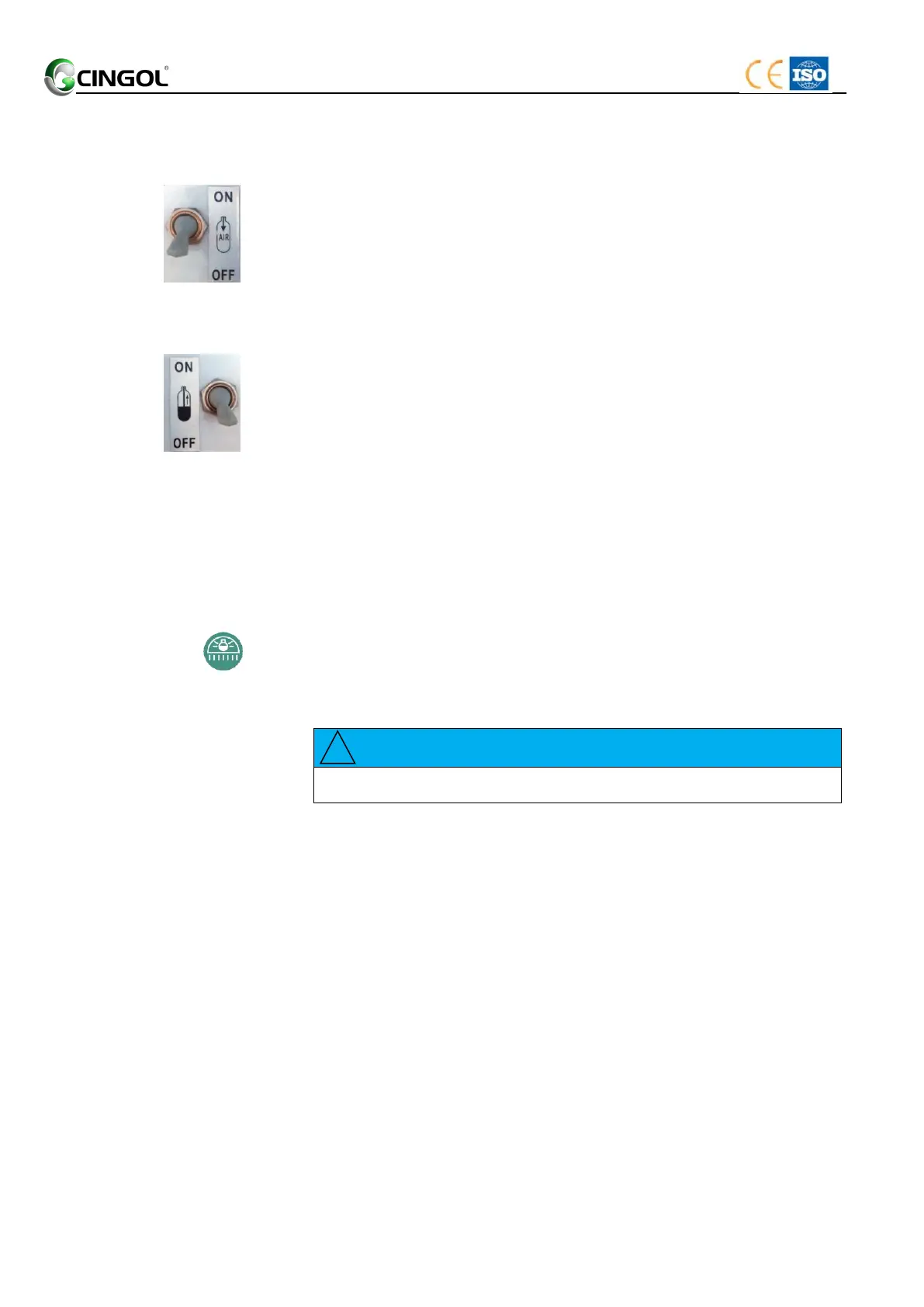

4.6.4 Air switch
 The air switch is pulled to the ON position. Air is filled in the pure
water bottle to supply the preset pressure for the pure water
flowing to the dentist element.
 The air switch is pulled to the OFF position. Air pressure in the
pure water bottle is taken off.
4.6.5 Water alternative switch

The alternative switch is pulled to the OFF position. The water unit
supplies filtered water for the instruments of the dentist element.
 The alternative switch is pulled to the ON position. The water unit
supplies pure water from the pure water bottle for the instruments
of the dentist element.
4.6.6 Pure water bottle
Pure water in the bottle is supplied for the instruments of the dentist
element only when the air switch is pulled to the NO position and the
alternative switch is pulled to the Bottle water position.
The bottle can be removed to pour pure water into it after the air switch
much be pulled to the OFF position.
4.7 Operating light
The operating light is attached to a height-adjustable support arm. It
can be easily adjusted with the lamp handle to illuminate the
treatment area.
4.8
ASTER Disinfection Device
IMPORTANT
Also observe the Operating Manual of the operating light.
！
The ASTER disinfection device enables the dentist to have complete disinfection
for all spray instrument on the doctor element&assistant element with antiseptic
liquid.
The Disinfecting steps as below:
 Poured disinfection water(Sodium hypochlorite ) into Bottle A, and distilled
water into Bottle B. Make sure all bottles fulfilled.

Put all the handpiece hoses, scaler hose, syringe, Into the ASTER device &
fixed it. Use the button to fix the syringe and enable it in working status
 Open the Water&Air main switch, select Bottle A (selective switch under the
suction filter ), and open the disinfection switch,
 After 30 seconds later, Open the strong suction &saliva ejector valve and put
it into the ASTER device,
 After about 2 minutes 35 seconds, Bottle A finished all the disinfection water

Then switch to Bottle B, execute this same procedure as Bottle A to clean &
flush all the spray instruments hoses .
Put all the spray instruments back to the rack of the doctor & assistant element,
then complete the disinfection
