Raption
18 Service Manual
3.A — CIRCUIT BREAKER Raption 50
1
2
3
6
5

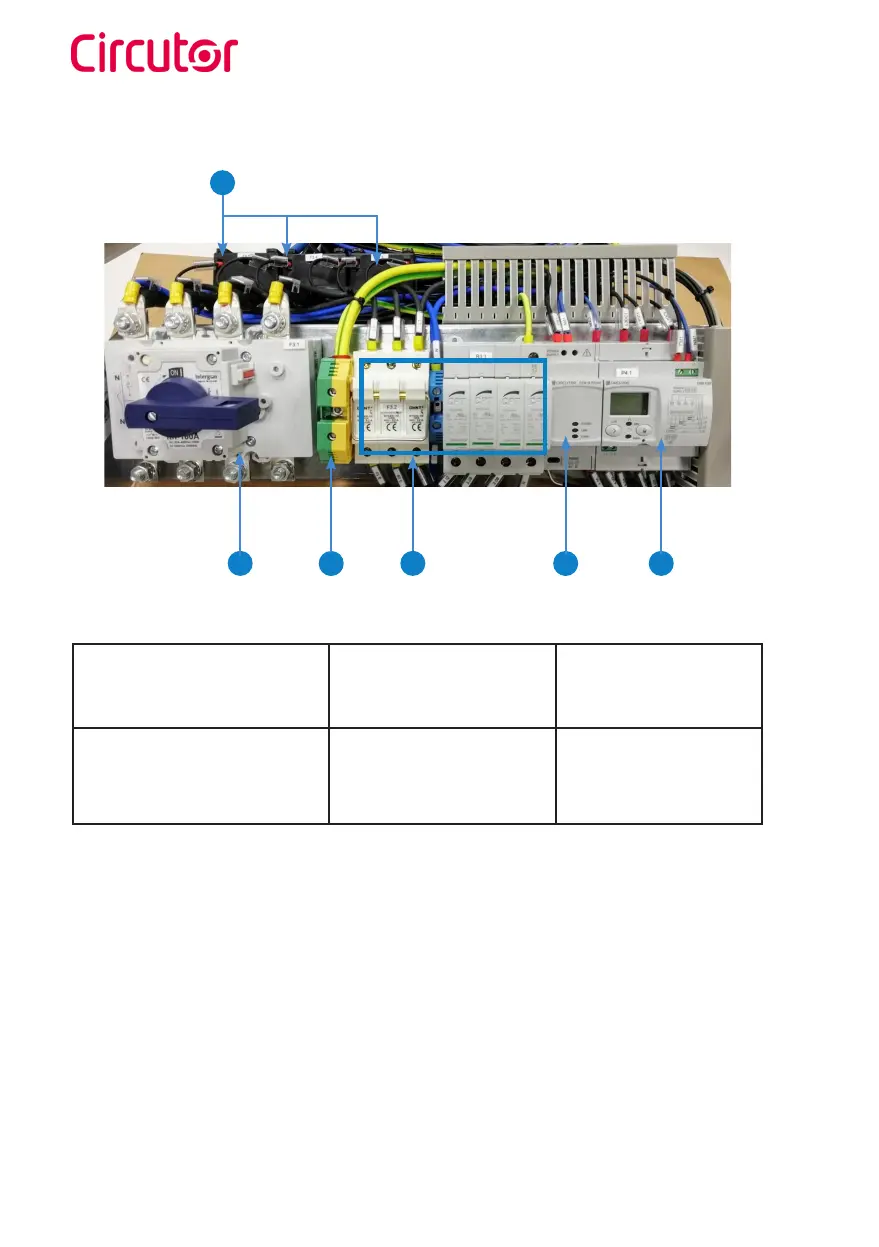

1- Current transformer TC5 100/5
(T3.3/ T3.4/ T3.5) for MID AC Meter -
CEM-C30 for DC side
2- Switch disconnector 3 poles
+ neutral 160A(F3.1). Main
circuit breaker
3- Ground terminal block
4- Transient surge protector device
(optional component)
5- Communications module for
CEM energy meters (T4.1)
6- Three-phase MID energy
meter. Indirect measument
5(10)A(P4.1)
Note: in order to find more details about the cable installation, please, refer to the
Installation Manual.
