2-15
Cisco Video Surveillance 5010/5011 Indoor Fixed HD IP Dome Camera User Guide
OL-22669-01
Chapter 2 Installation
Wiring

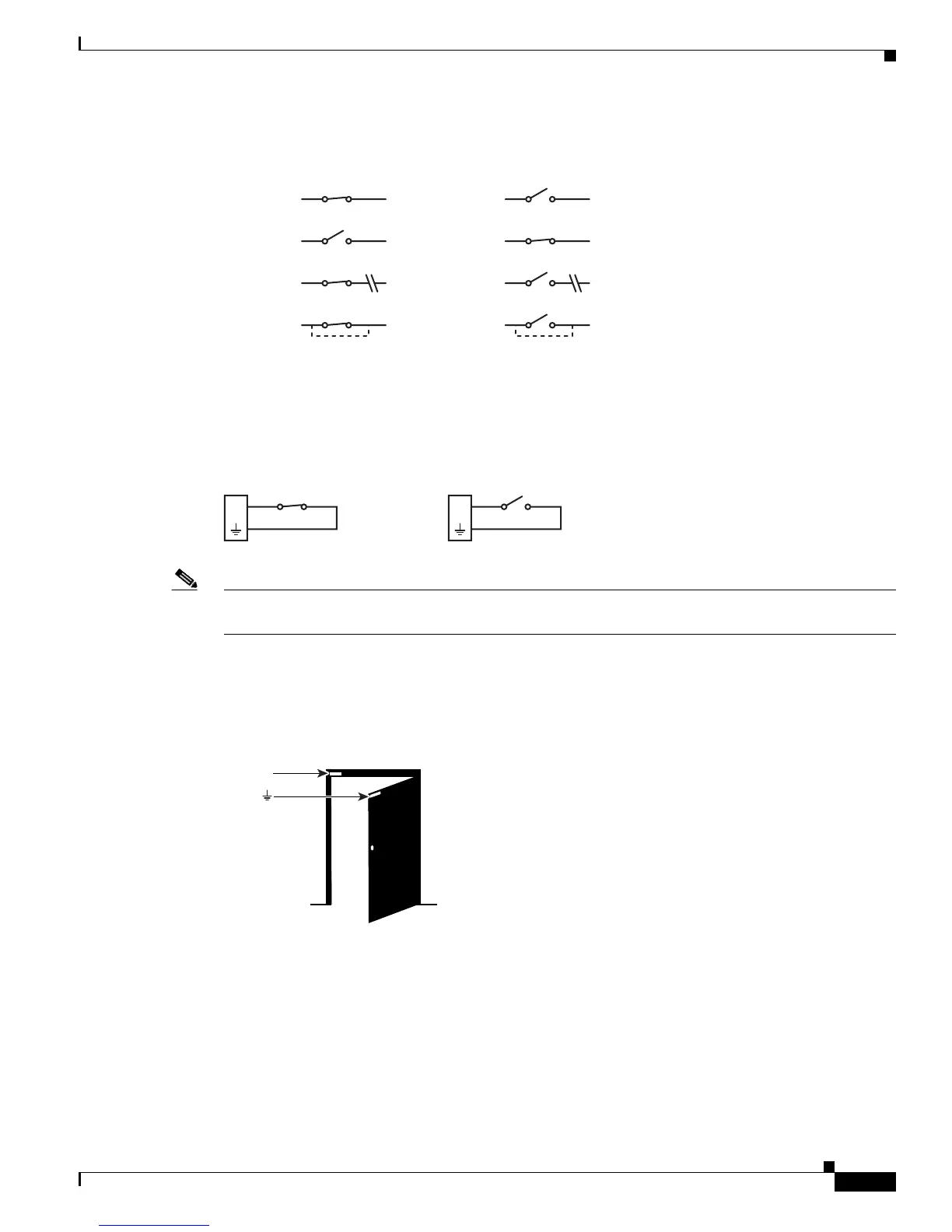

Figure 2-19 Unsupervised Alarm Conditions
+v
+v
+v
+v
+v
+v
+v
+v
Bypass
Cut
Bypass
Cut
GND
Alarm
GND
Alarm
GND
NO ALARM
GND
No Alarm
GND
No Alarm
GND
Alarm
GND
NO ALARM
GND
Alarm
NORMALLY OPENNORMALLY CLOSED
278792
Figure 2-20 illustrates the wiring configuration for unsupervised alarm inputs.
Figure 2-20 Normally Closed and Normally Open Unsupervised Alarm Input Wiring
A1A1
Normally OpenNormally Closed
278790
Note A normally closed alarm input can be defeated with a bypass; a normally open input can be defeated with
a cut.
Alarm Connections
Figure 2-21 shows how to wire the camera to an alarm.
Figure 2-21 Alarm Connections
ALARM
ALARM A1
278788
