2-5
Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide
OL-5052-08
Chapter 2 Overview: Cisco 7600 Series SIPs
Cisco 7600 SIP-200 Overview
Figure 2-1 shows an example of a Cisco 7600 SIP-200 installed with a vertical orientation on a
Cisco 7609 router. The Cisco 7600 SIP-200 supports four subslots for the installation of SPAs. In this
example, the subslot locations are vertically oriented as follows:
• SIP subslot 0—Top–right subslot
• SIP subslot 1—Bottom–right subslot
• SIP subslot 2—Top–left subslot
• SIP subslot 3—Bottom–left subslot
Figure 2-3 shows the faceplate for the Cisco 7600 SIP-200 in a horizontal orientation.

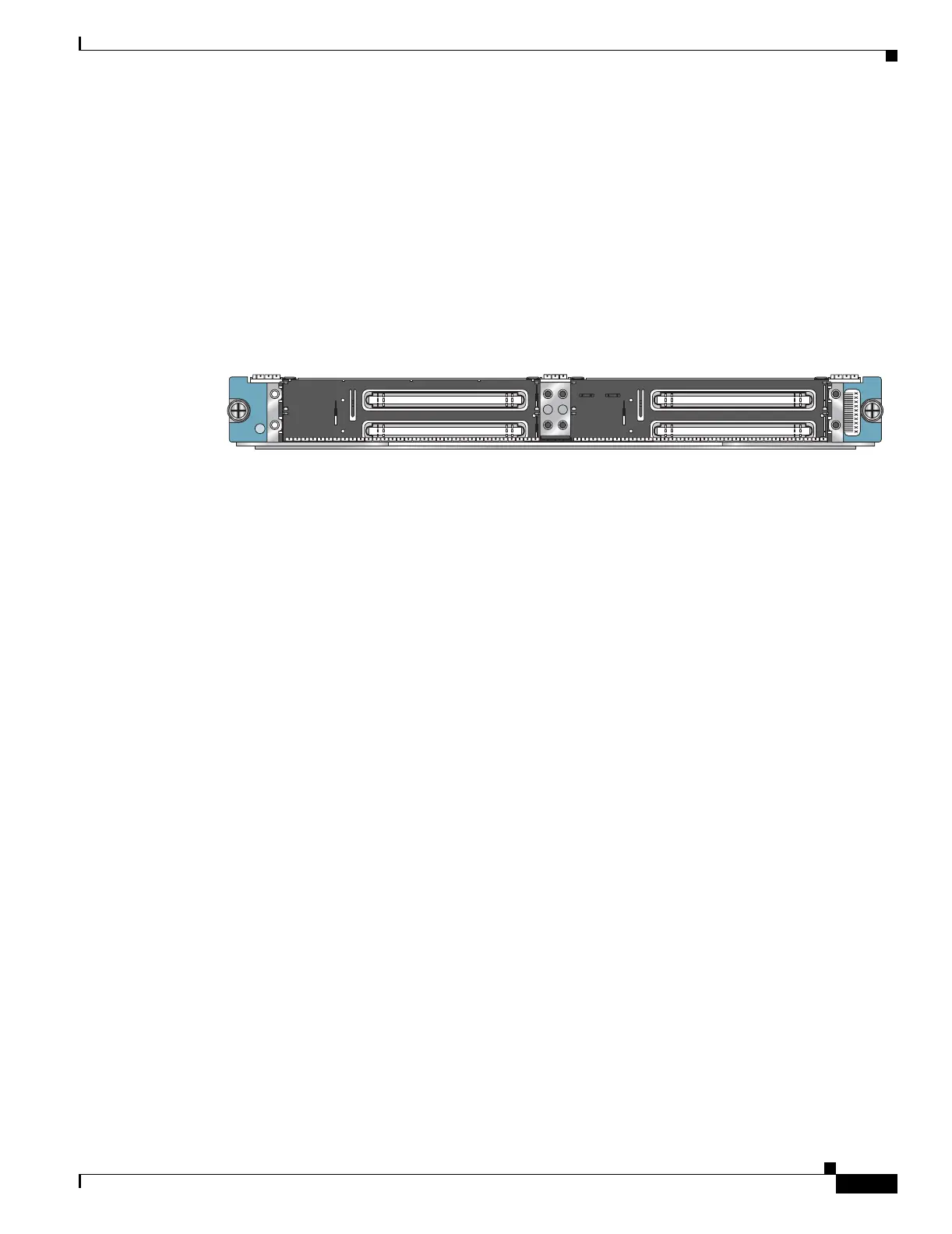

Figure 2-3 Cisco 7600 SIP-200 Faceplate
In this view, the subslot locations in a horizontal orientation are as follows:
• SIP subslot 0—Top–left subslot
• SIP subslot 1—Top–right subslot
• SIP subslot 2—Bottom–left subslot
• SIP subslot 3—Bottom–right subslot
The SIP subslot numbering is indicated by a small numeric label beside the subslot on the faceplate.
Just as with the SIPs, some commands allow you to display information about the SPA itself, such as
show idprom module and show hw-module subslot. These commands require you to specify both the
physical location of the SIP and SPA in the format, slot/subslot, where:
• slot—Specifies the chassis slot number in the Cisco 7600 series router where the SIP is installed.
• subslot—Specifies the secondary slot of the SIP where the SPA is installed.
For example, to display the operational status for the SPA installed in the first subslot of the SIP in
chassis slot 6 shown in Figure 2-1, enter the following command:
Router# show hw-module subslot 6/0 oir
For more information about SIP commands, refer to the Cisco IOS Software Releases 12.2SR Command
References and to the Cisco IOS Software Releases 12.2SX Command References.
Cisco 7600 SIP-200 Overview
The following sections describe the Cisco 7600 SIP-200 (Cisco part number 7600-SIP-200):
• Cisco 7600 SIP-200 Processor, page 2-6
• Cisco 7600 SIP-200 LEDs, page 2-6
• Cisco 7600 SIP-200 Physical Specifications, page 2-6
• Cisco 7600 SIP-200 Memory Options, page 2-7
• Cisco 7600 SIP-200 Default DIP Switch Settings, page 2-8
STATUS
2
0
3
1
SPA INTERFACE
PROCESSOR
7600-SIP-200
116849
