Cisco 7600 Series User Manual

3-43
Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide
OL-5052-08
Chapter 3 Overview: Cisco 7600 Series Router Shared Port Adapters
1-Port 10-Gigabit Ethernet SPA Overview
XFP Connections
XFP modules (see Figure 3-36) provide one dual LC/PC fiber connector. Only connectors having PC or
UPC connectors are supported. Patch cords with APC connectors are not supported.
Cisco Multirate 10GE XFP modules do not support Digital Optical Monitoring (DOM).
The operating temperature range for the XFP modules is 0 to 70°C (32 to 158°F); storage temperature
range is -40°C to +85°C (-40°F to +185°F).
The maximum power consumption per Cisco XFP module is 3.5W.
See the label on the XFP for technology type and model.
XFP dimensions are:
• Height 12.5 mm
• Width 18.35 mm
• Length 71.1mm

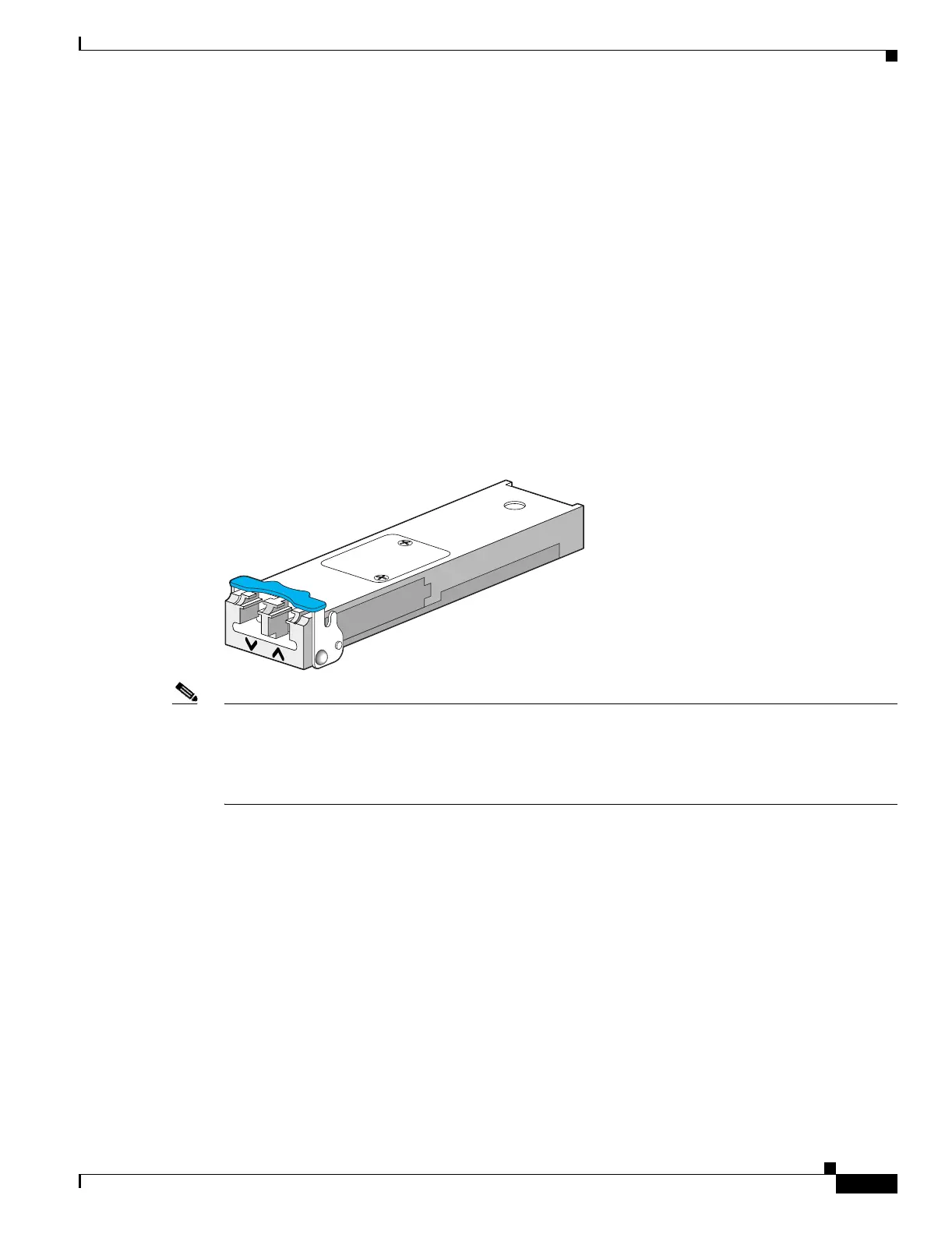

Figure 3-36 XFP Illustration
Note The 1-Port 10-Gigabit Ethernet SPA only accepts the XFP modules listed as supported in this document.
An XFP check is run every time an XFP module is inserted into the 1-Port 10-Gigabit Ethernet SPA and
only XFP modules that pass this check are usable by the 1-Port 10-Gigabit Ethernet SPA. The
information in this document pertains only to XFP modules that plug into the 1-Port 10-Gigabit Ethernet
SPA ports.
XFP Port Cabling Specifications
Table 3-23 provides XFP port cabling specifications.
129499
