3-42
Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide
OL-5052-08
Chapter 3 Overview: Cisco 7600 Series Router Shared Port Adapters
1-Port 10-Gigabit Ethernet SPA Overview
1-Port 10-Gigabit Ethernet SPA LEDs
The 1-Port 10-Gigabit Ethernet SPA has two types of LEDs. There is an ACTIVE/LINK LED for the
port and the Status LED as shown in Figure 3-35.

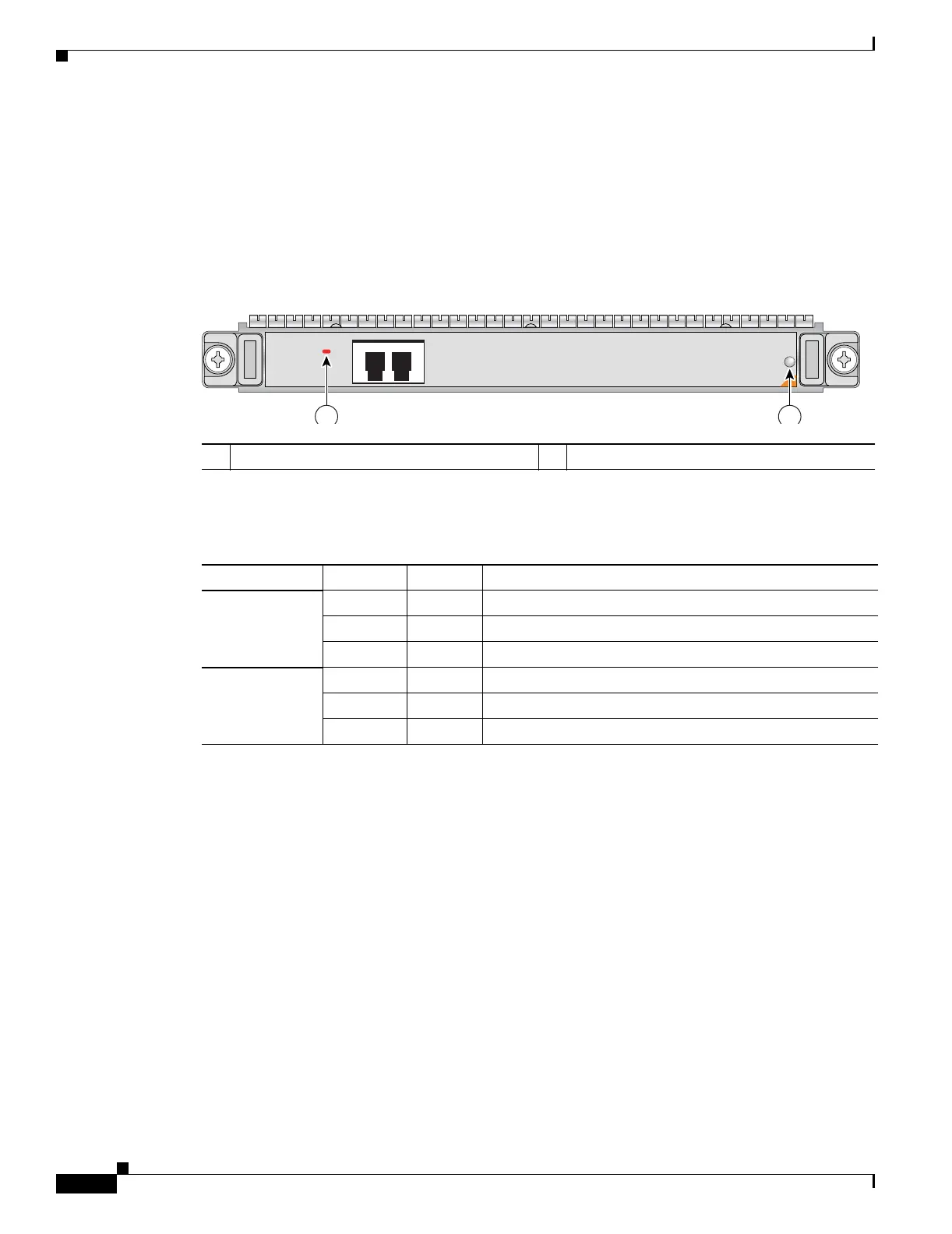

Figure 3-35 1-Port 10-Gigabit Ethernet SPA Faceplate
The 1-Port 10-Gigabit Ethernet SPA LEDs are described in Table 3-22.
1-Port 10-Gigabit Ethernet SPA Cables and Connectors
The XFP module is an I/O device that provide a hot-swappable optical interface to the 1-Port 10-Gigabit
Ethernet SPA. The following XFP modules are supported:
• Cisco Multirate 10GBASE-LR and OC-192/STM-64 SR-1 XFP Module for SMF—This multirate
XFP supports both 10GBASE-LR Ethernet applications and OC-192/STM-64 short-reach (SR-1)
POS applications.
• Cisco Multirate 10GBASE-ER and OC-192/STM-64 IR-2 XFP Module for SMF—This multirate
XFP supports both 10GBASE-ER Ethernet applications and OC-192/STM-64 intermediate reach
(IR-2) POS applications.
• Cisco Multirate 10GBASE-ZR and OC-192/STM-64 LR-2 XFP Module for SMF—This multirate
XFP supports both 10GBASE-ZR Ethernet applications and OC-192/STM-64 long-reach long reach
(LR-2) POS applications.
1 Active/Link LED 2 STATUS LED
STATUS
122151
ACTIVE/LINK
SPA-1X10GE-L-V2
1 2
Table 3-22 1-Port 10-Gigabit Ethernet SPA LEDs
LED Label Color State Meaning
Active/Link Off Off Port is not enabled by software.
Green On Port is enabled by software and the link is up.
Amber On Port is enabled by software and the link is down.
STATUS Off Off SPA power is off.
Amber On SPA power is on and good, and SPA is being configured.
Green On SPA is ready and operational.
