Cisco 7600 Series User Manual

3-45
Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide
OL-5052-08
Chapter 3 Overview: Cisco 7600 Series Router Shared Port Adapters
2-Port Gigabit Ethernet SPA Overview
2-Port Gigabit Ethernet SPA Overview
The following sections describe the 2-Port Gigabit Ethernet SPA:
• 2-Port Gigabit Ethernet SPA LEDs, page 3-45
• SFP Module Cabling and Connection Equipment, page 3-48
2-Port Gigabit Ethernet SPA LEDs
The 2-Port Gigabit Ethernet SPA has two types of LEDs. There is an A/L LED for each port and one
STATUS LED as shown in Figure 3-37.

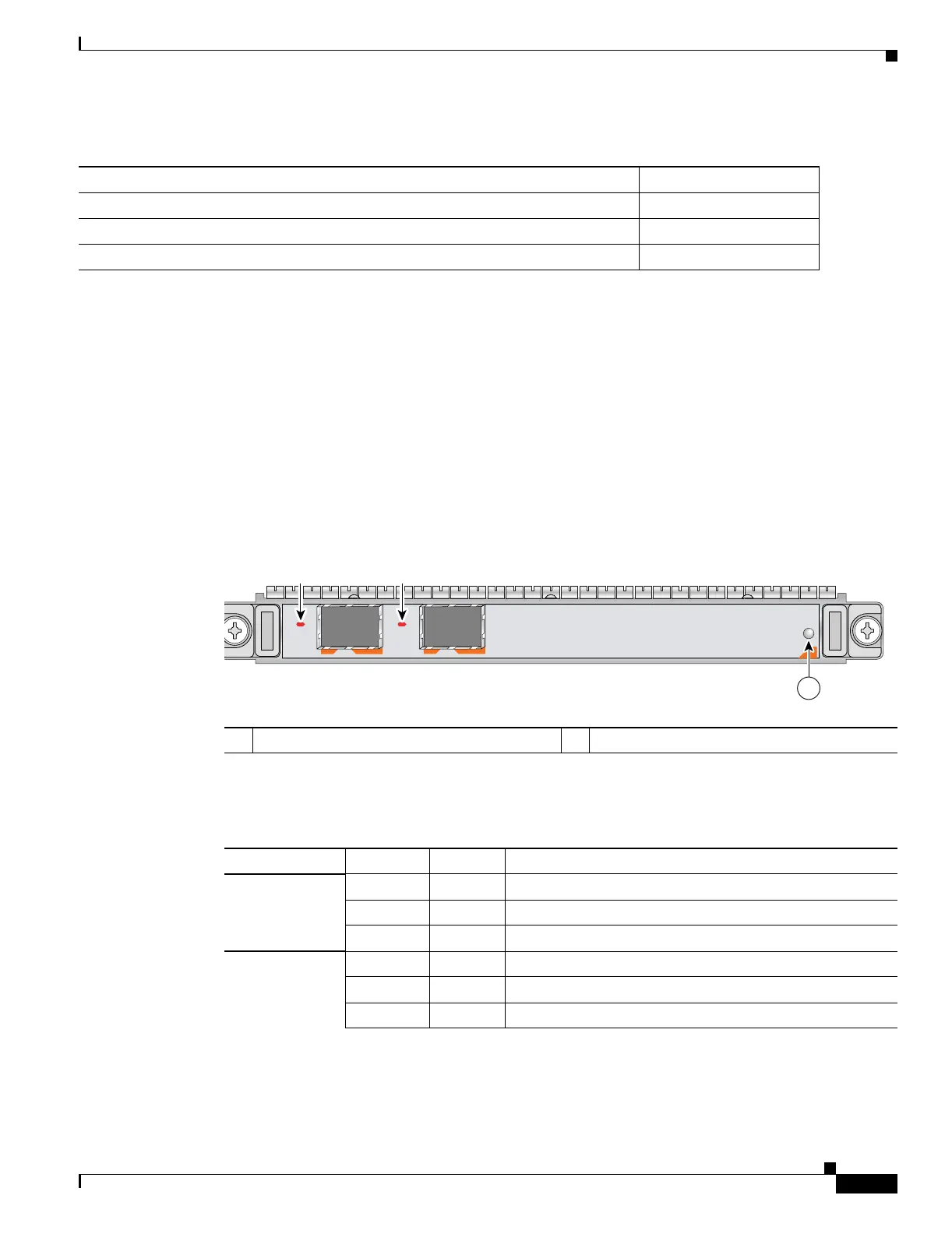

Figure 3-37 2-Port Gigabit Ethernet SPA Faceplate
The 2-Port Gigabit Ethernet SPA LEDs are described in Table 3-26.
Table 3- 25 XFP Module Ordering Information
Description Product Number
Cisco Multirate 10GBASE-LR and OC-192/STM-64 SR-1 XFP Module for SMF XFP-10GLR-OC192SR
Cisco Multirate 10GBASE-ER and OC-192/STM-64 IR-2 XFP Module for SMF XFP-10GER-OC192IR
Cisco Multirate 10GBASE-ZR and OC-192/STM-64 IR-2 XFP Module for SMF XFP-10GZR-OC192LR
STATU
S
0
1
A/L A/L
SPA-2X1GE
138041
2
1 A/L LED (for each interface) 2 STATUS LED (for entire SPA)
Table 3-26 2-Port Gigabit Ethernet SPA LEDs
LED Label Color State Meaning
A/L Off Off Port is not enabled.
Green On The port is enabled and the link is up.
Amber On The port is enabled and the link is down.
STATUS Off Off SPA power is off.
Green On SPA is ready and operational.
Amber On SPA power is on and good, and SPA is being configured.
