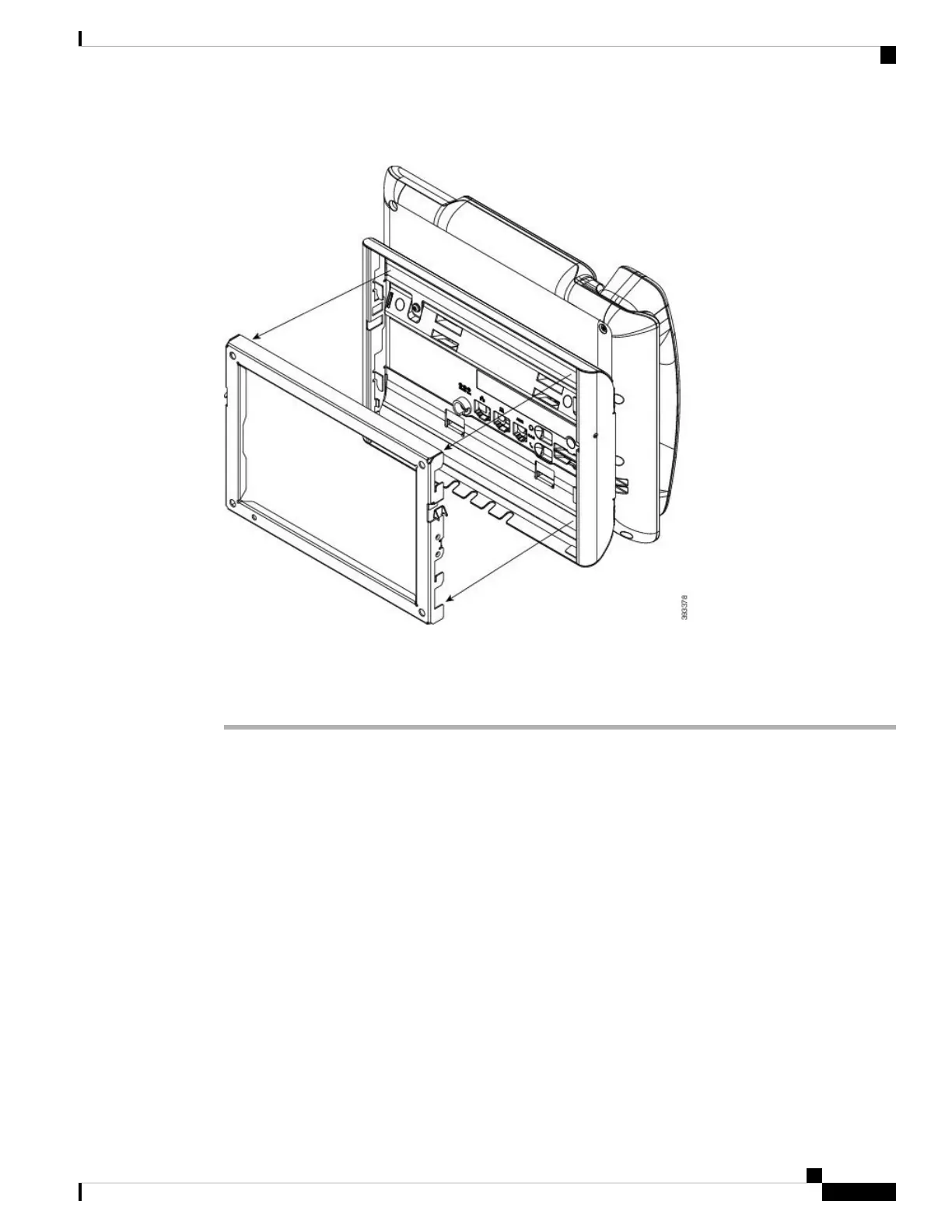

Figure 26: Phone to Wall Bracket Attachment
Step 5 Press the phone firmly into the wall bracket and slide the phone down. The tabs in the bracket click into
position.
Step 6 Proceed to Adjust the Handset Rest, on page 115.
Remove the Phone from the Non-Lockable Wall Mount
The wall mounting plate contains two tabs to lock the plate into the phone bracket. The following figure shows
the location and shape of the tabs.
