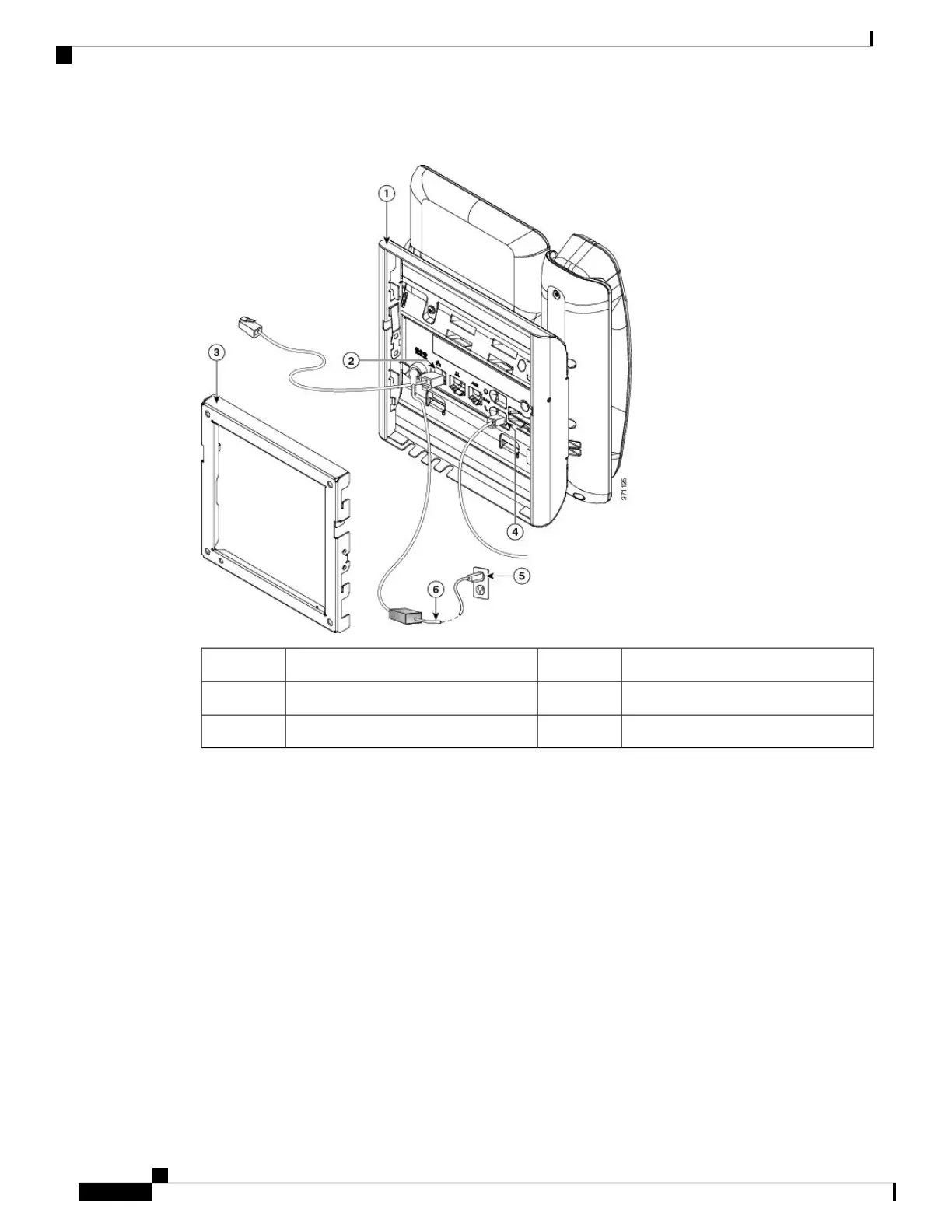

Figure 16: Cable Attachment
Handset Port4Phone Bracket1
AC Adapter Port5Network Port2
Optional Power Cable6Wall Bracket3
Step 4 Attach the phone to the wall bracket by inserting the tabs on the top of the wall bracket into the slots on the
phone bracket.
For cables that terminate outside of the brackets, use the cable-access openings in the bottom of the bracket
to position the power cord and any other cable that does not terminate in the wall behind the bracket. The
phone and wall bracket openings together form circular openings with room for one cable per opening.
Cisco IP Phone 7800 Series Multiplatform Phones Administration Guide
104
Hardware and Accessory Installation
Install the Non-Lockable Wall Mount Kit

Cisco 7841 Specifications

General

Ethernet Switch	Yes
Lines	4
Headset Port	Yes
Wall Mountable	Yes
Display	3.5-inch grayscale display
Audio	Wideband audio
PoE	IEEE 802.3af
Speakerphone	Full-duplex
Ethernet Ports	2 x 10/100/1000
Headset Jack	RJ9
Protocols	SIP
Codec Support	G.711, G.722, G.729, iLBC
Mounting	Desk or wall
Weight	1 kg
