Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

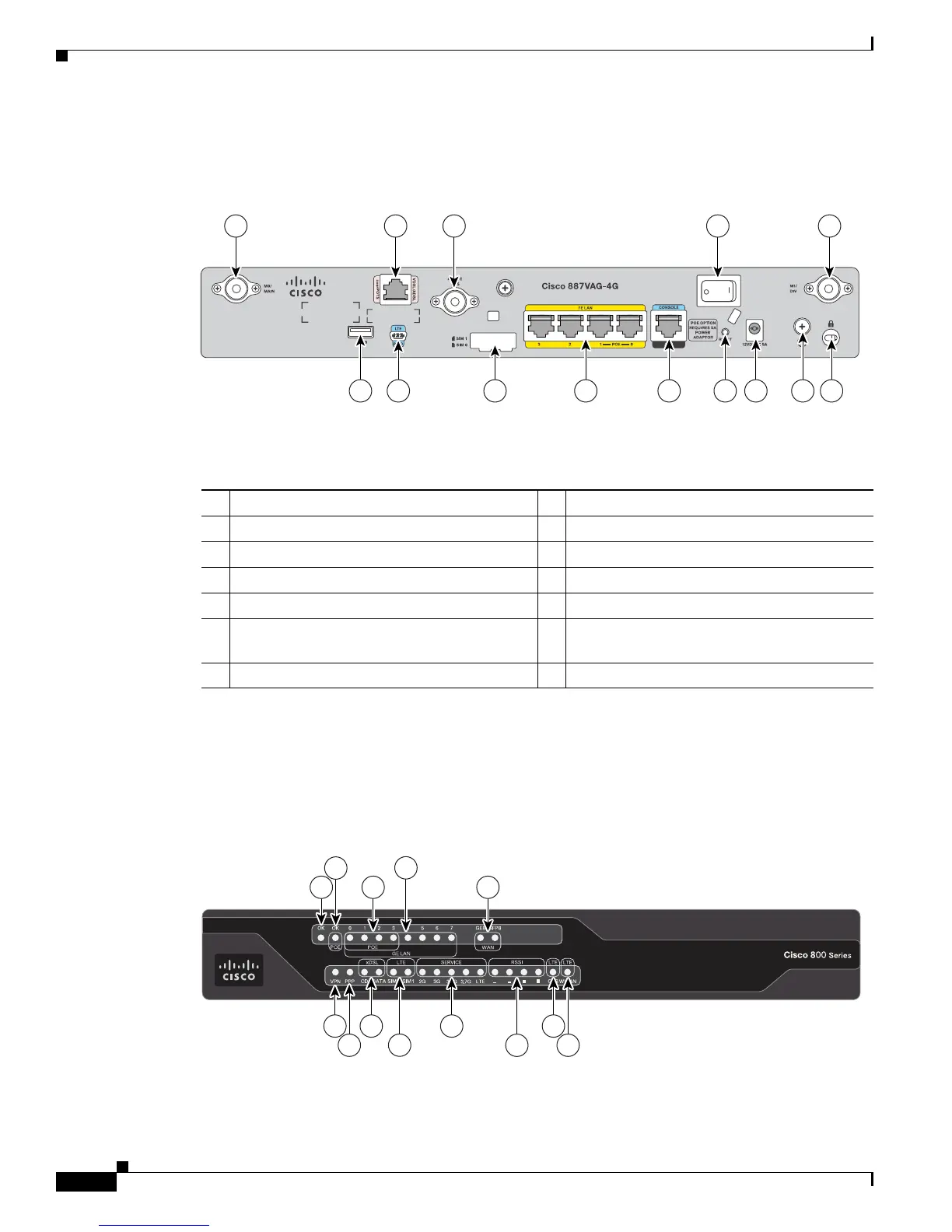

Figure 1-47 shows the back panel of the Cisco C887VAG-4G ISR.
Figure 1-47 Back Panel of the Cisco C887VAG-4G ISR
Cisco C896VAG-LTE Integrated Services Router
Figure 1-48 shows the front panel of the Cisco C896VAG-LTE ISR.
Figure 1-48 Front Panel of the Cisco C896VAG-LTE ISR
372523
1 2 3 4 5 7 986
10111214 13
1 USB port 8 Earth ground connection
2 4G port 9 Kensington security slot

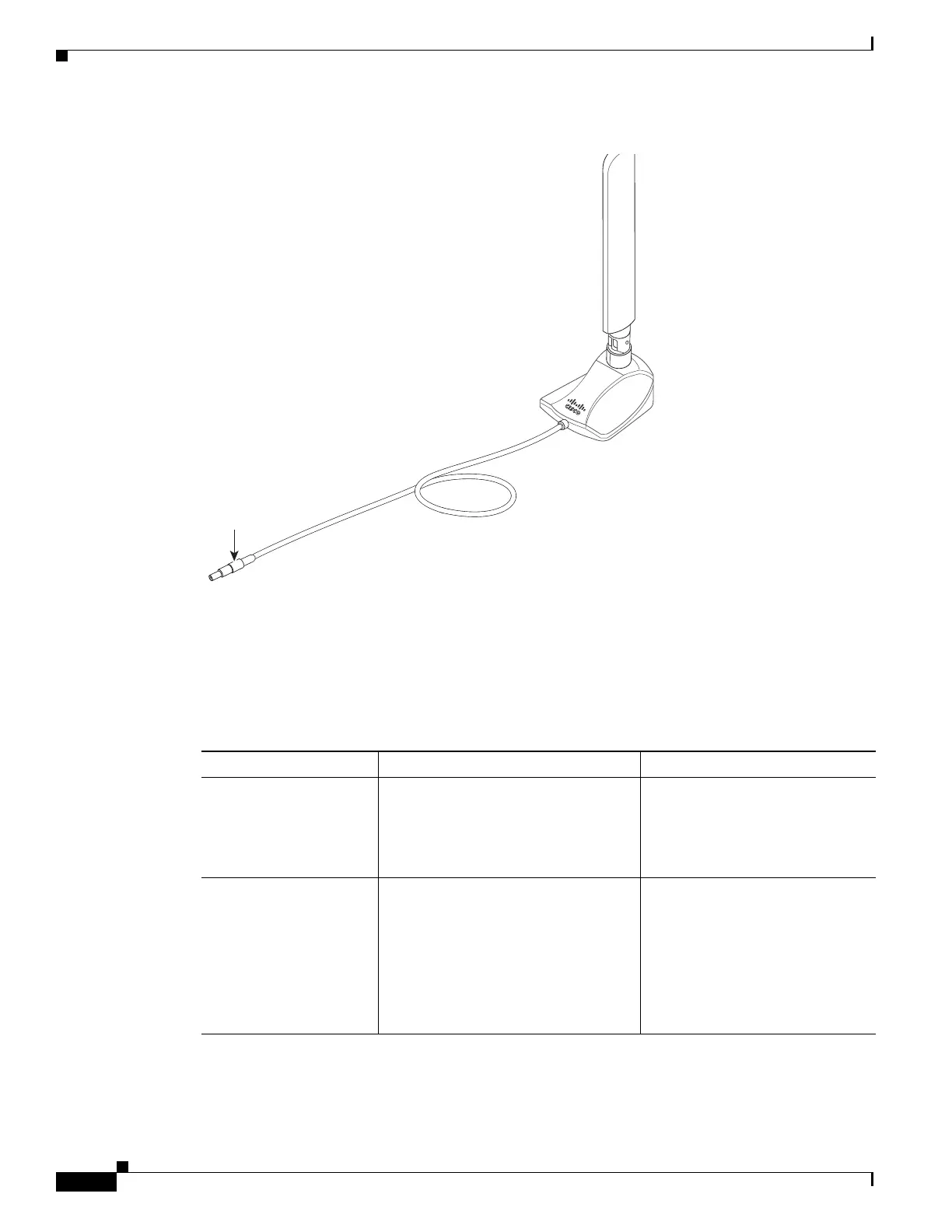

3 SIM slots 10 4G antenna connector—M1/DIV
4 4-port 10/100 Ethernet switch 11 Power switch
5 Serial port—Console or auxiliary 12 Active GPS antenna connector
6 Reset button 13 Primary WAN port—VDSL or ADSL over
POTS
7 Power connector 14 4G antenna connector—M0/MAIN
372530
6
7
8
9
10
11
12
13
1 3
2
4
5

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
