Chapter 1 Product Overview
Cisco 860, 880, 890 Series

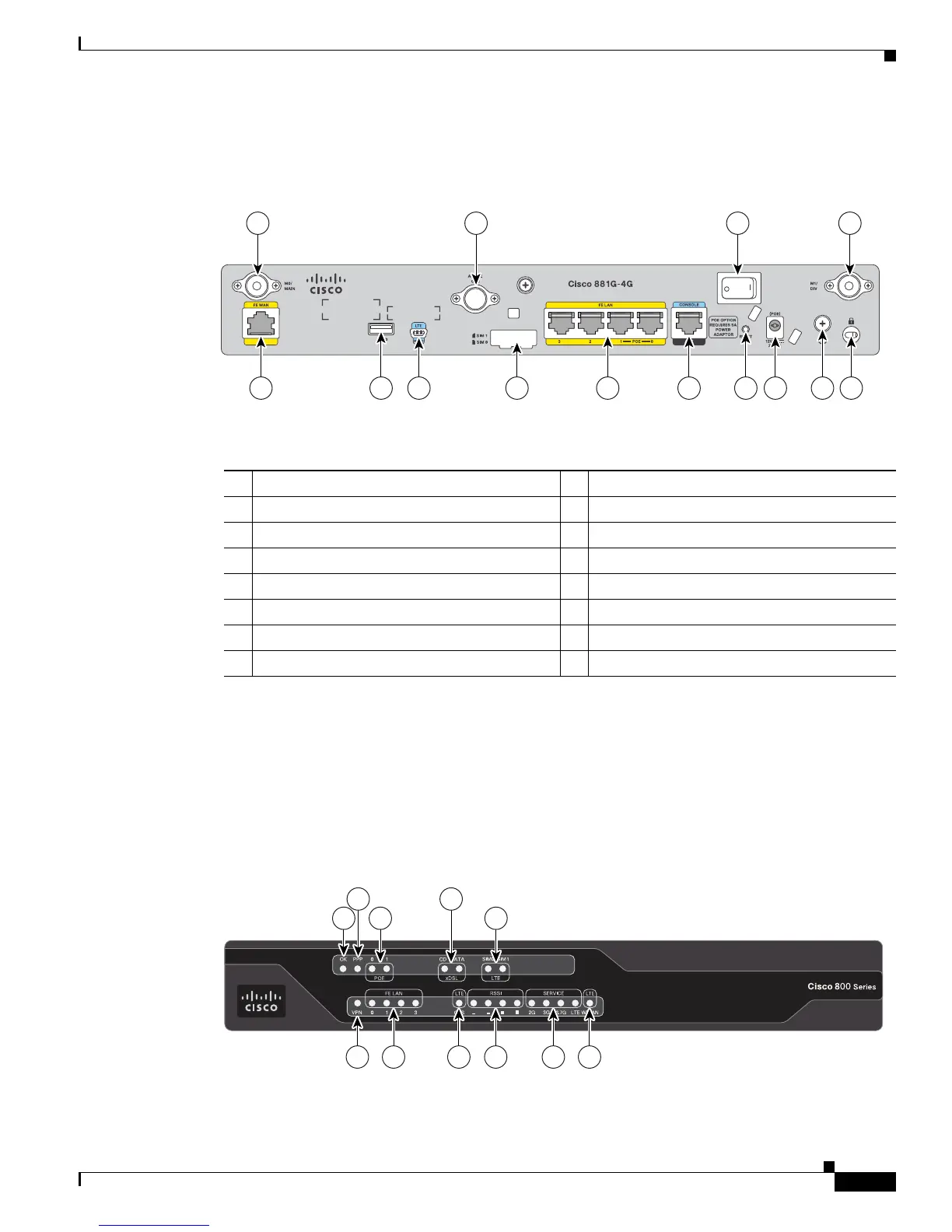

Figure 1-45 shows the back panel of the Cisco C881G-4G ISR.
Figure 1-45 Back Panel of the Cisco C881G-4G ISR
For information on installing the Cisco C880 Series Routers, see:
http://www.cisco.com/c/en/us/td/docs/routers/access/800/hardware/installation/guide/800HIG.html
Cisco C887VAG-4G Integrated Services Router
Figure 1-46 shows the front panel of the Cisco C887VAG-4G ISR.
Figure 1-46 Front Panel of the Cisco C887VAG-4G ISR
372522
1 2 3 4 5 6 8 1097
11121314
1 Primary WAN port—FE 9 Earth ground connection
2 USB port 10 Kensington security slot
3 4G port 11 4G Antenna connector—M1/DIV
4 SIM slots 12 Power switch
5 4-port 10/100 Ethernet switch 13 Active GPS antenna connector
6 Serial port—Console or auxiliary 14 4G Antenna connector—M0/MAIN
7 Reset button
8 Power connector
372529
6 7 8 9 10 11
1 3
2 4
5

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
