Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview

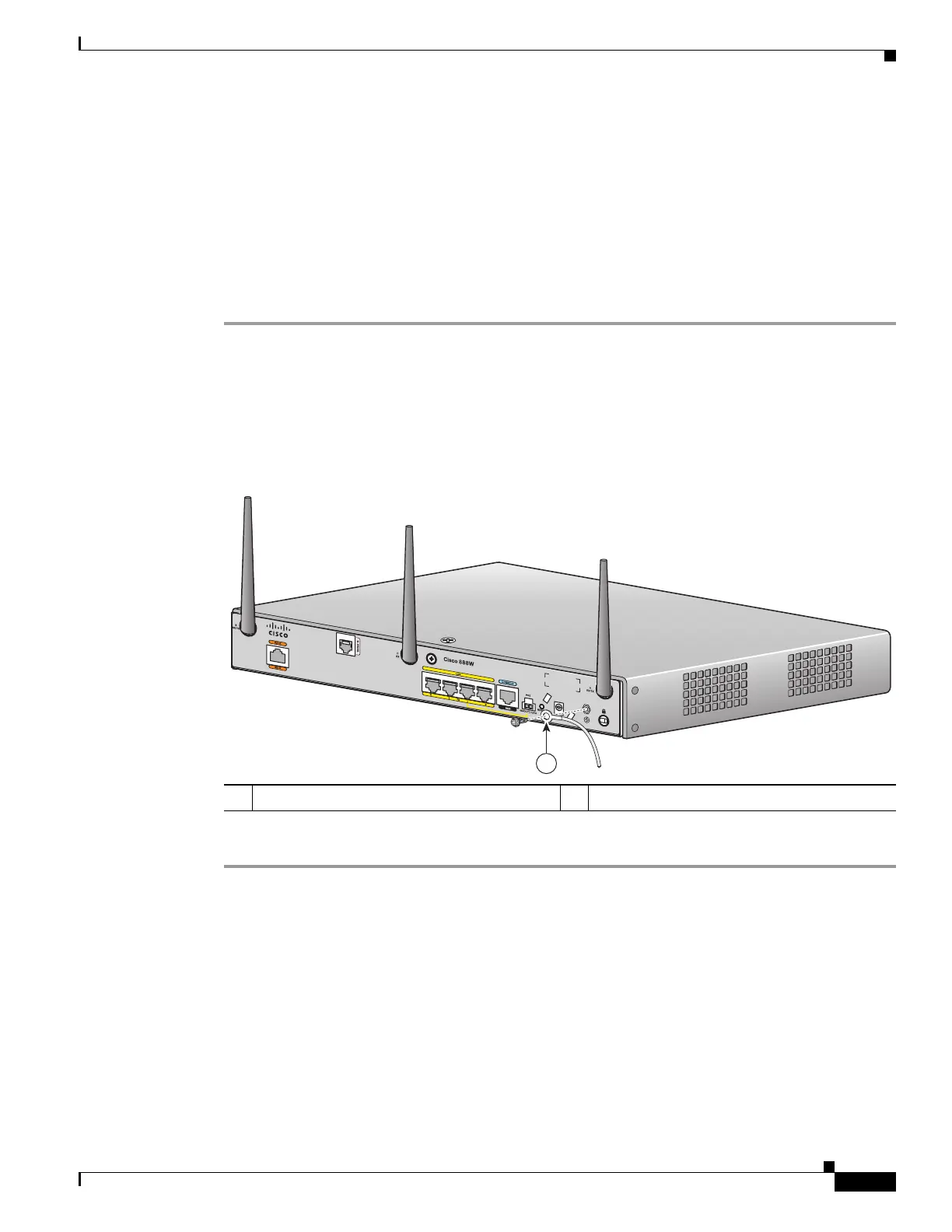

Cisco 860, 880, 890 Series

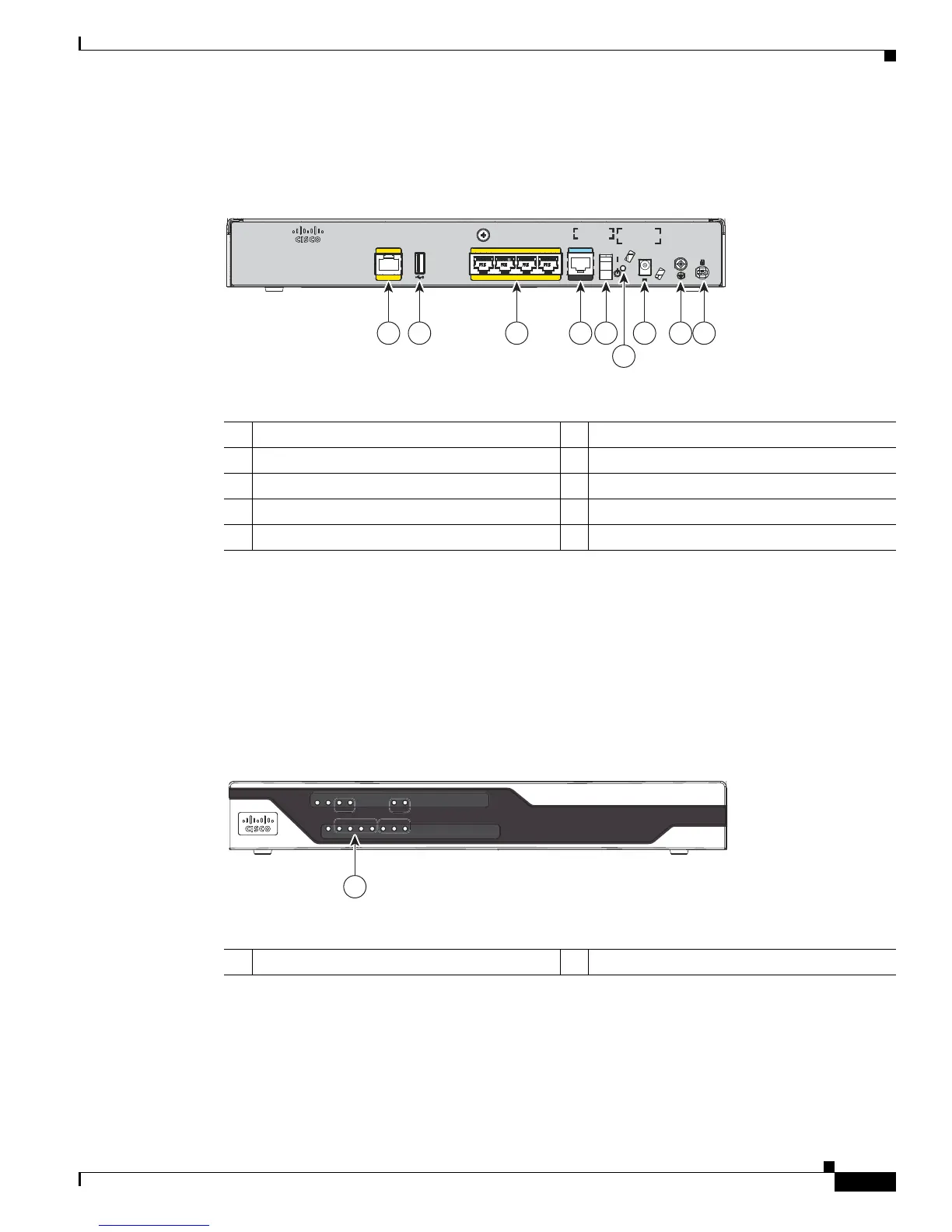

Figure 1-33 shows the back panel of the Cisco C881 Router.
Figure 1-33 Back Panel of the Cisco C881 Router
For information on installing the Cisco C880 Series Routers, see :
http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal
l880-860.html
Cisco C886VA Router
Figure 1-34 shows the front panel of the Cisco C886VA Router.
Figure 1-34 Front Panel of the Cisco C886VA Router
For detailed description about the LEDs on the Cisco C880 Series Routers, see the “LEDs” section on
page 1-23.
0
Cisco 881
FE LAN
3210
CONSOLE
AUX
FE WAN
4
12VDC 2 .5-5A
(POE)
RESET
361125
1 2 3 4 5 7 8 9
6
1 Primary WAN port—FE 6 Reset button
2 USB port 7 Power connector
3 4-port 10/100 Ethernet switch 8 Earth ground connection
4 Serial port—Console or auxiliary 9 Kensington security slot
5 On/Off switch
361126
CiscoCisco
800
Series
OKOK
POEOE
PPPPPP
FE FE LAN
VPN
0 1 2
3
0 1
CD
CD DATA
xDSL
xDSL
ISDNISDN
LINKLINK
B1B1
B2B2
1
1 LEDs

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
