1-83
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series
Figure 1-49 shows the back panel of the Cisco C896VAG-LTE ISR.

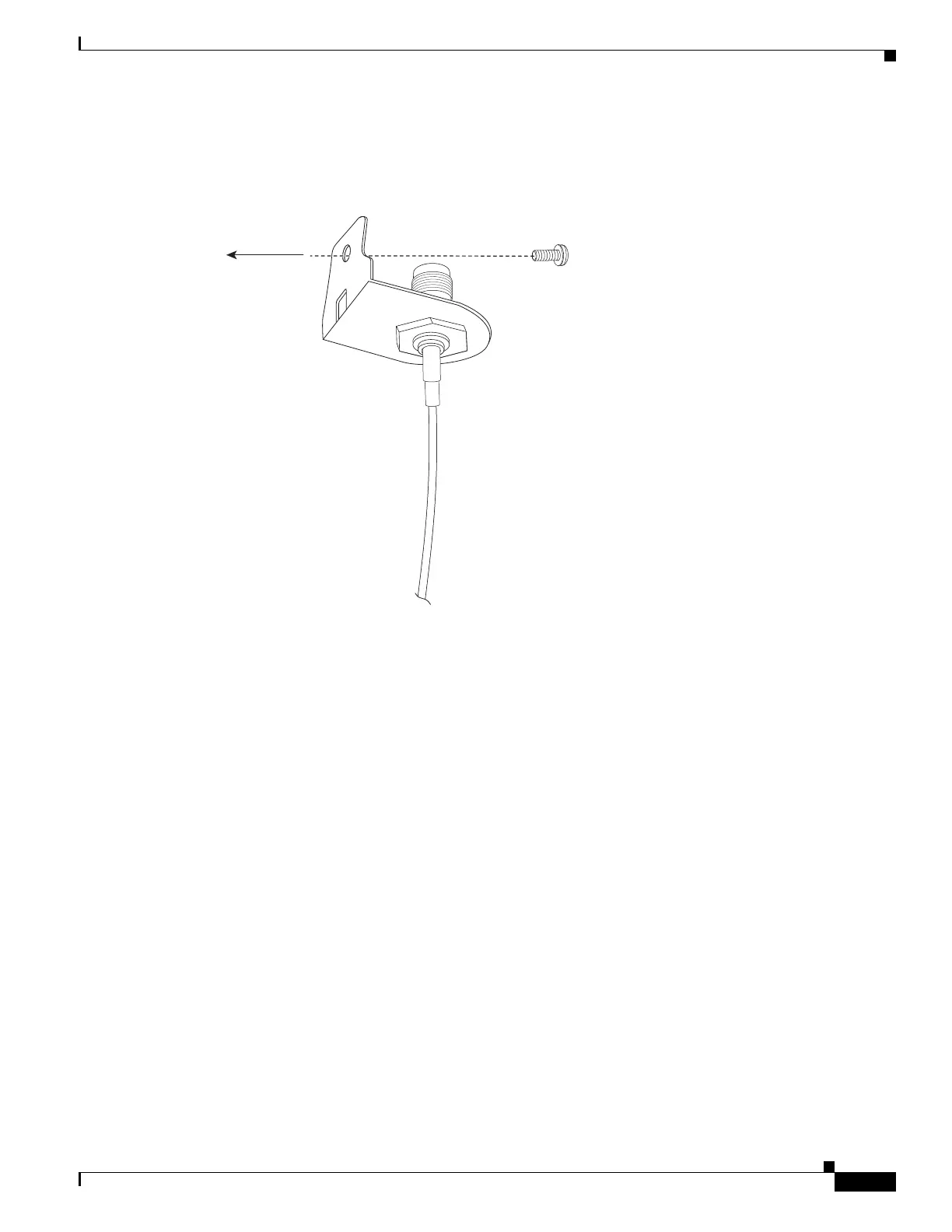

Figure 1-49 Back Panel of the Cisco C896VAG-LTE ISR
12 GPS Green
(solid)
Standalone GPS.
Green (slow
blinking)
GPS is acquiring signals.
Yellow
(solid)
Assisted GPS.
Yellow
(slow
blinking)
Assisted GPS is acquiring signals.
Off GPS is not configured.
13 WWAN Green Module is powered on and connected but not
transmitting or receiving.
Green (slow
blinking)
Module is powered on and searching for connection.
Green (fast
blinking)
Module is transmitting or receiving.
Off Module is not powered.
Table 1-34 LED Descriptions (continued)for Cisco C896VAG-LTE ISR
Number LED Color Description
372524
1 2 3 4 5 6 7 10 12118 9
131416 15

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
