Cisco 860, 880, 890 Series

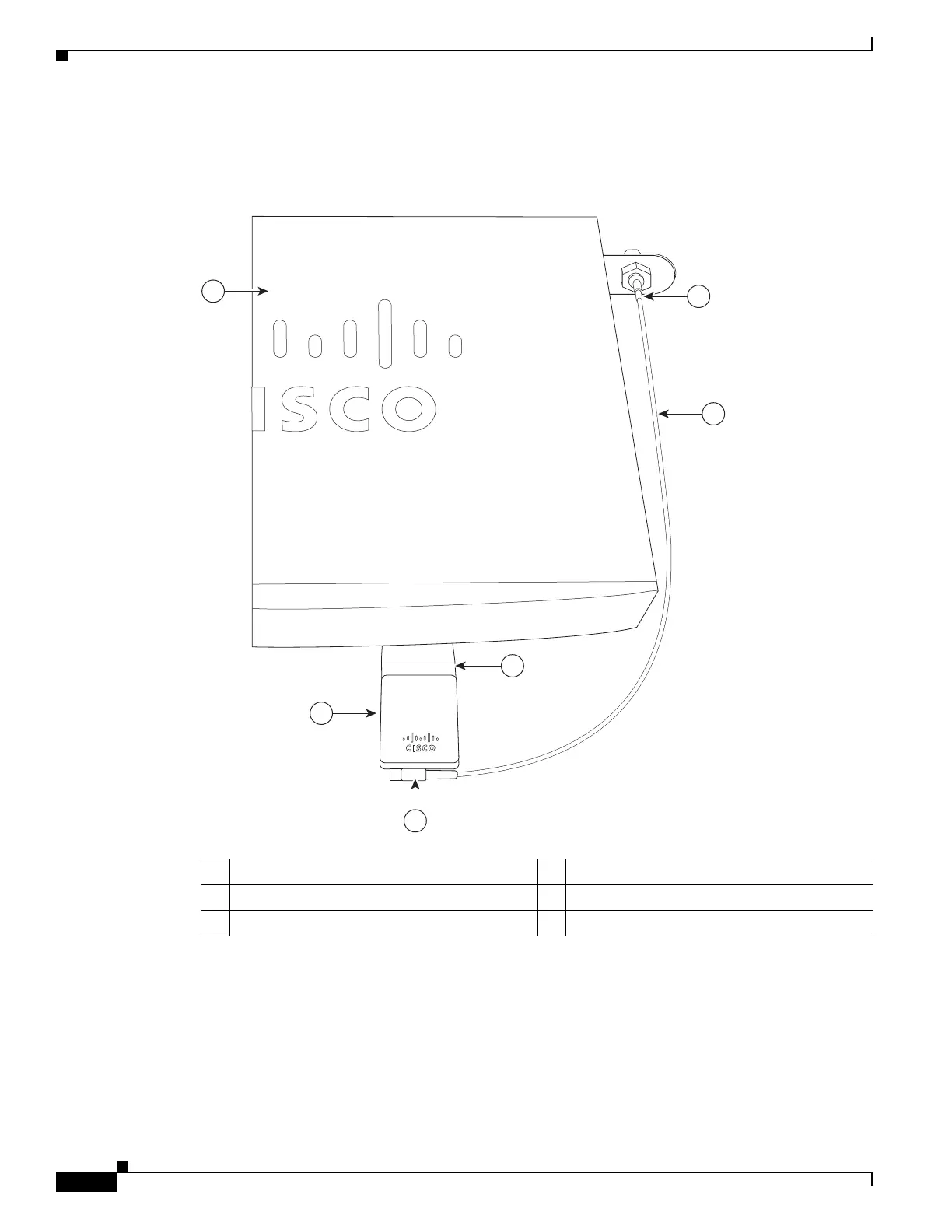

For information on installing Cisco C890 Series Routers, see the following link:
http://www.cisco.com/c/en/us/td/docs/routers/access/800/hardware/installation/guide/800HIG.html
Cisco C897VAG-LTE Integrated Service Router

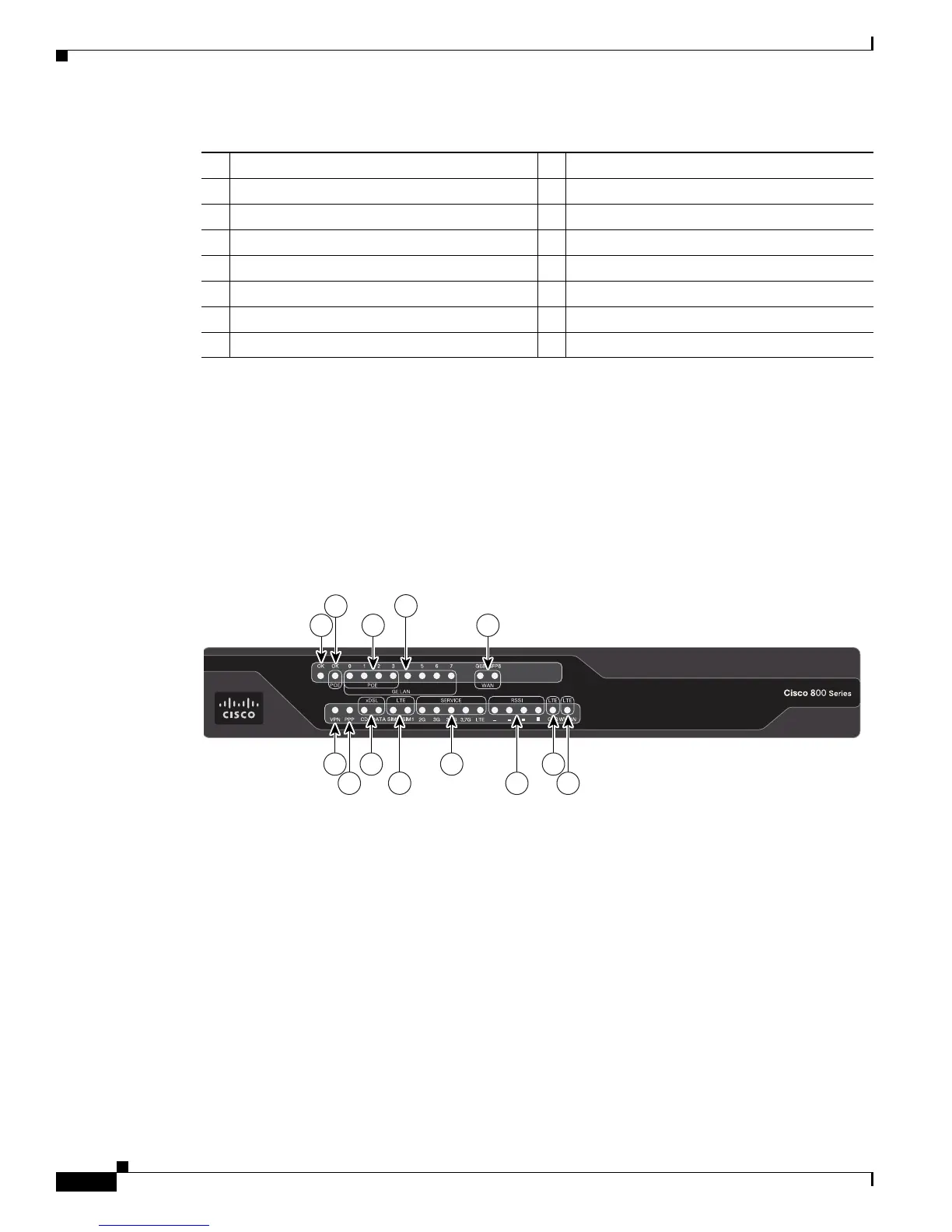

Figure 1-50 shows the front panel of the Cisco C897VAG-LTE ISR.
Figure 1-50 Front Panel of the Cisco C897VAG-LTE ISR
1 GE WAN interface 9 On/Off switch
2 SFP port 10 Reset button
3 4G port 11 Earth ground connection
4 USB port 12 Kensington security slot
5 SIM slots 13 4G antenna connector—M1/DIV
6 8-port Gigabit Ethernet switch 14 Active GPS antenna connector
7 Console / Auxiliary port 15 VDSL or ADSL over ISDN
8 Power connector 16 4G antenna connector—M0/MAIN
372531
1 3
2
4
5
6
7
8
9
10
11
12
13

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
