Connecting the 3G Card
Step 4 Close the locking bracket, as shown in Figure 3-10.

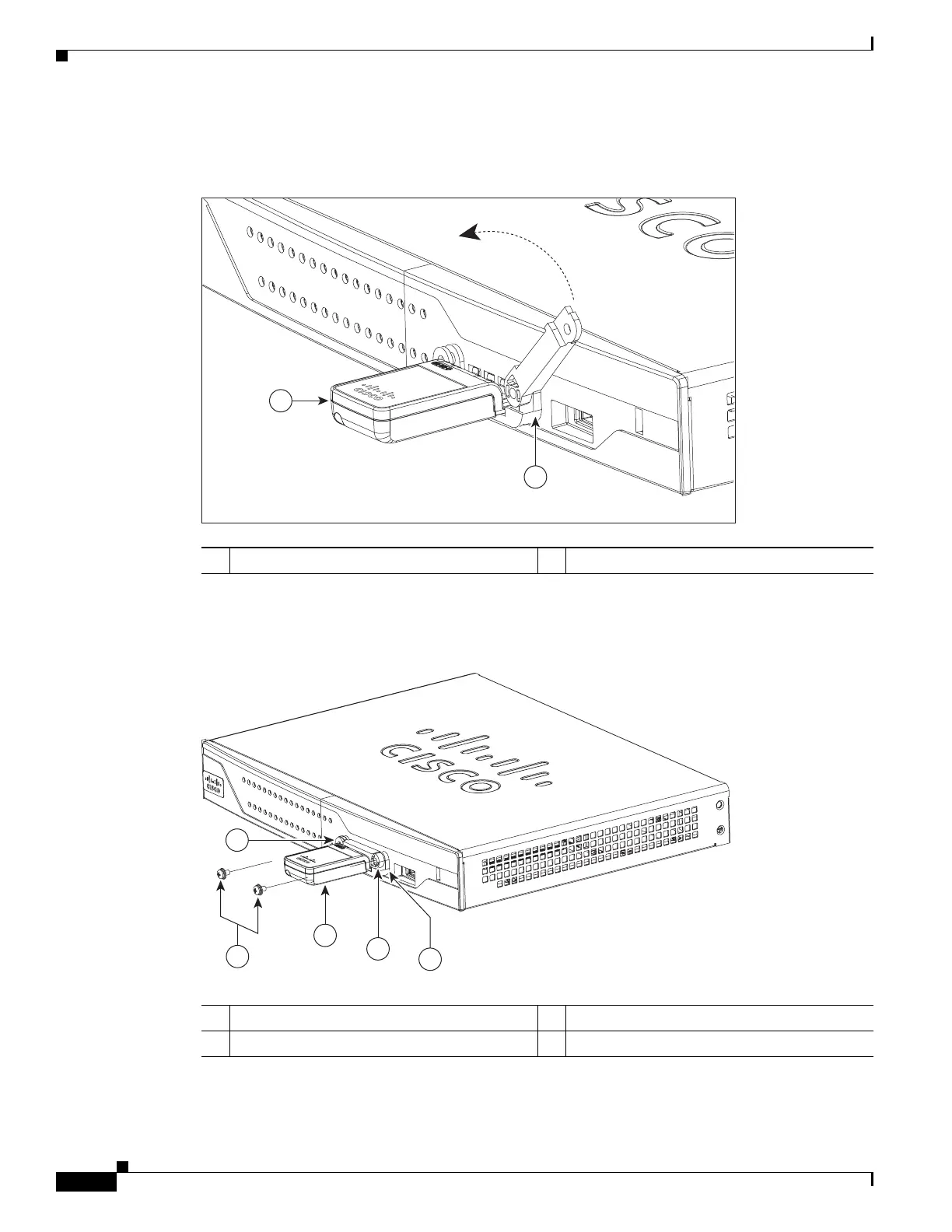

Figure 3-10 Closing the Locking Bracket
Step 5
Insert the screws, as shown in Figure 3-11, and tighten with a number 2 Phillips screwdriver.
Figure 3-11 Inserting the Screws
Step 6
To connect the antenna to the 3G card, insert the antenna connector into the antenna connector receptacle
on the 3G card.
1 3G card 2 Locking bracket
1
2
271580
1 3G card 3 Screws
2 Locking bracket 4 Screw holes on the locking bracket
271476
3
4
2
1
4
