Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

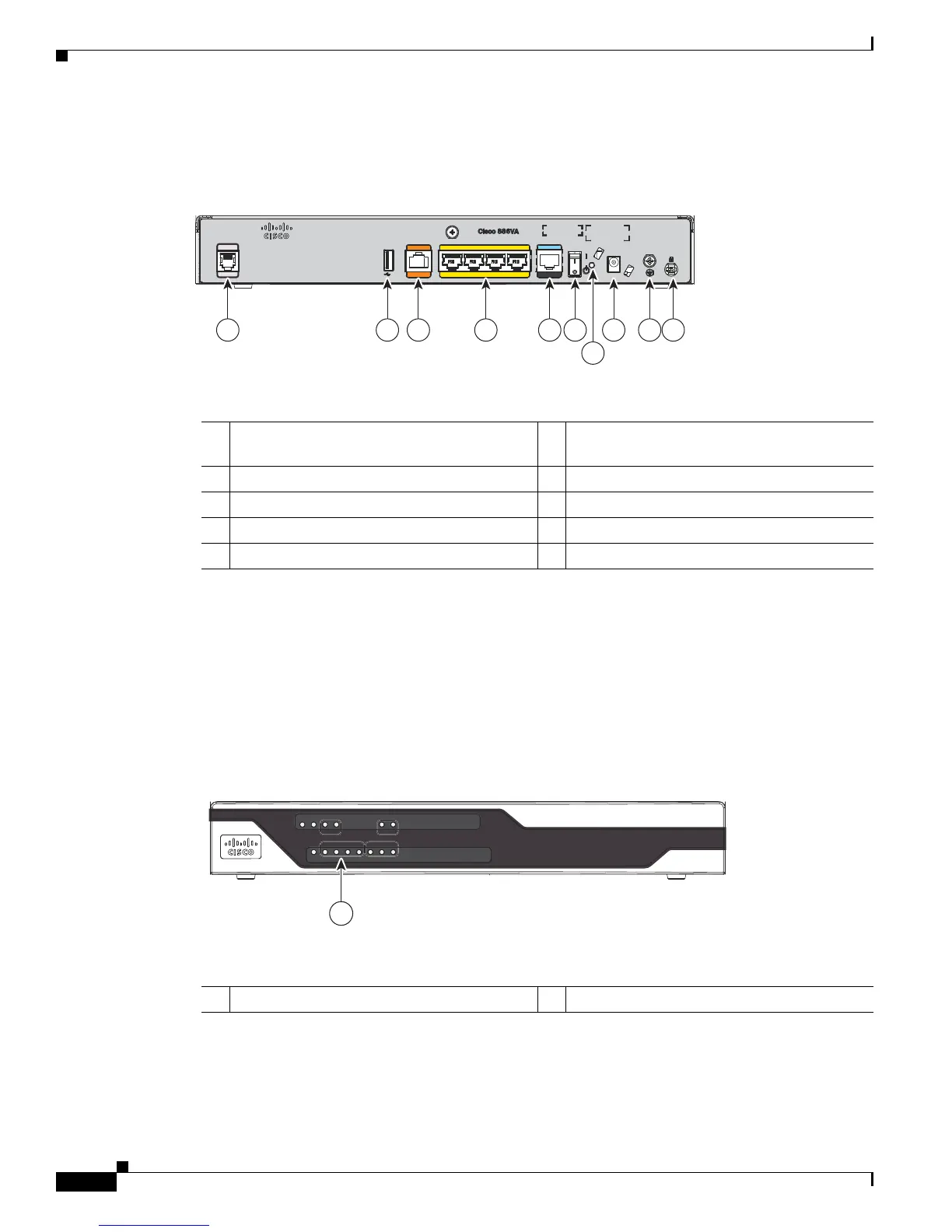

Figure 1-35 shows the back panel of the Cisco C886VA Router.

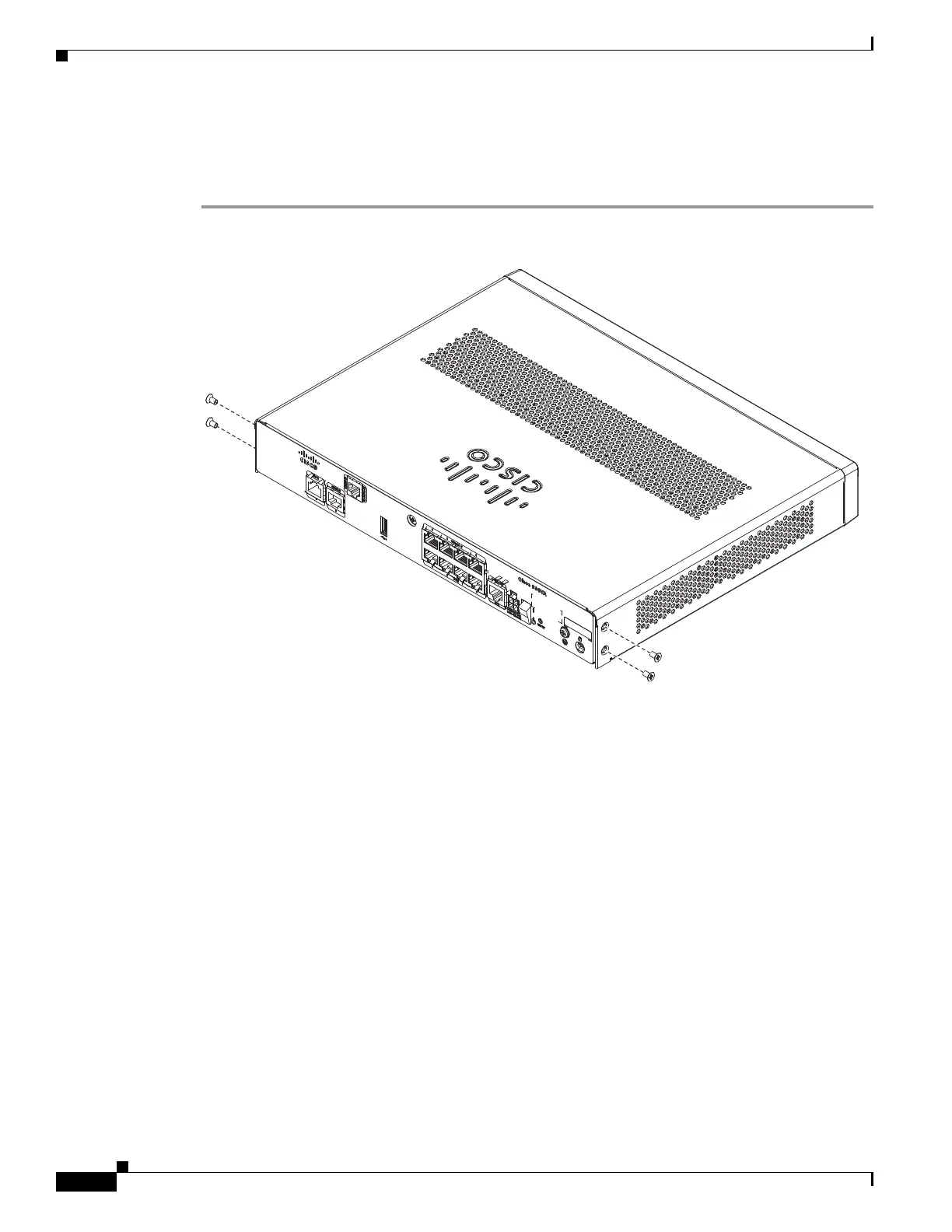

Figure 1-35 Back Panel of the Cisco C886VA Router
For information on installing Cisco C880 Series Routers, see:
http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal
l880-860.html
Cisco C886VAJ Router
Figure 1-36 shows the front panel of the Cisco C886VAJ Router.
Figure 1-36 Front Panel of the Cisco C886VAJ Router
For detailed description about LEDs on the Cisco 880 Series Router, see the “LEDs” section on
page 1-23.
361127
VDSL/ADSL
VDSL/ADSL
over ISDN
over ISDN
0
0
ISDN
ISDN
FE LAN
FE LAN
CONSOLE
CONSOLE
AUX
AUX
3 2 1 0
12VDC
2.
2.5
-5A
-5A
(POE)
(POE)
RESET
RESET
21 3 4 5 6 8 9 10
7
1 Primary WAN port—VDSL/ADSL over
ISDN
6 On/Off switch
2 USB port 7 Reset button
3 ISDN 8 Power connector
4 4-port 10/100 Ethernet switch 9 Earth ground connection
5 Serial port—Console or auxiliary 10 Kensington security slot
361128
CiscoCisco
800
Series
OKOK
POEOE
PPPPPP
FE FE LAN
VPN
0 1 2
3
0 1
CD
CD DATA
xDSL
xDSL
ISDNISDN
LINKLINK
B1B1
B2B2
1
1 LEDs

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
