Step 3 Secure the brackets to the patch panel with the screws removed when performing Step 3. The recommended maximum
torque is 28 in.-lb (3.16 N-m).
Step 4 Position the cable management guides against the mounting brackets on the patch panel, see the figure below.

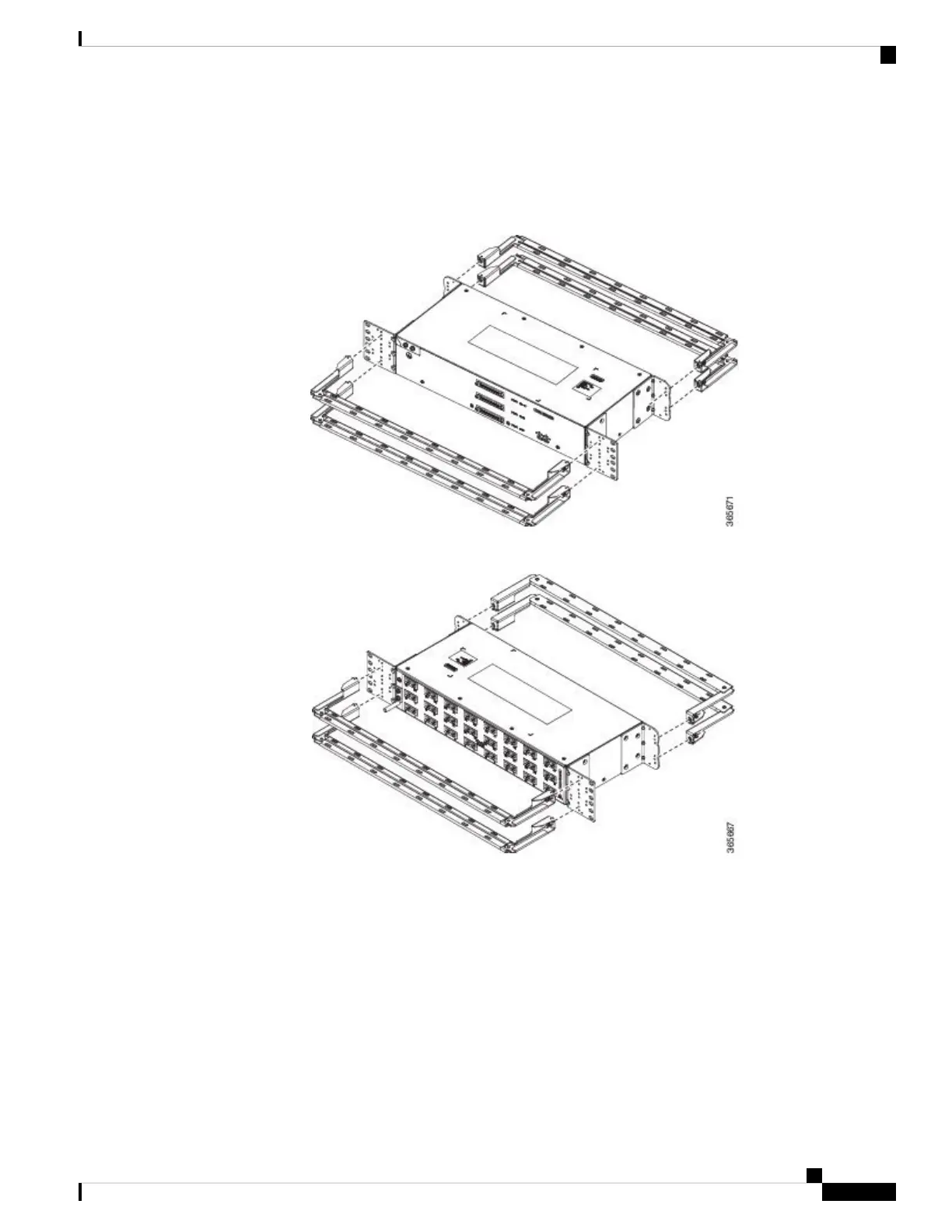

Figure 94: Patch Panel Front View with Brackets and Guides
Figure 95: Patch Panel Rear View with Brackets and Guides
Step 5 Secure the guides to the brackets with the screws. The recommended maximum torque is 28 in.-lb (3.16 N-m).
Step 6 Position the patch panel with brackets and guide onto the rack and secure with screws provided. The recommended
maximum torque is 28 in.-lb (3.16 N-m), see the figure below.
