Network Timing Interfaces
The RSP supports the following network timing interfaces:
• BITS input/output port—RJ48 jack
• 1 PPS input and output—Mini coax connectors
• 2.048 or 10 MHz input and output—Mini coax connectors
• Time of Day (ToD) or 1 PPS input or output port—Shielded RJ45 jack
Network timing interfaces support redundancy in a redundant RSP configuration. Network timing interfaces
on a redundant RSP remain in operation while the RSP is in hot standby mode.
RSP Interfaces

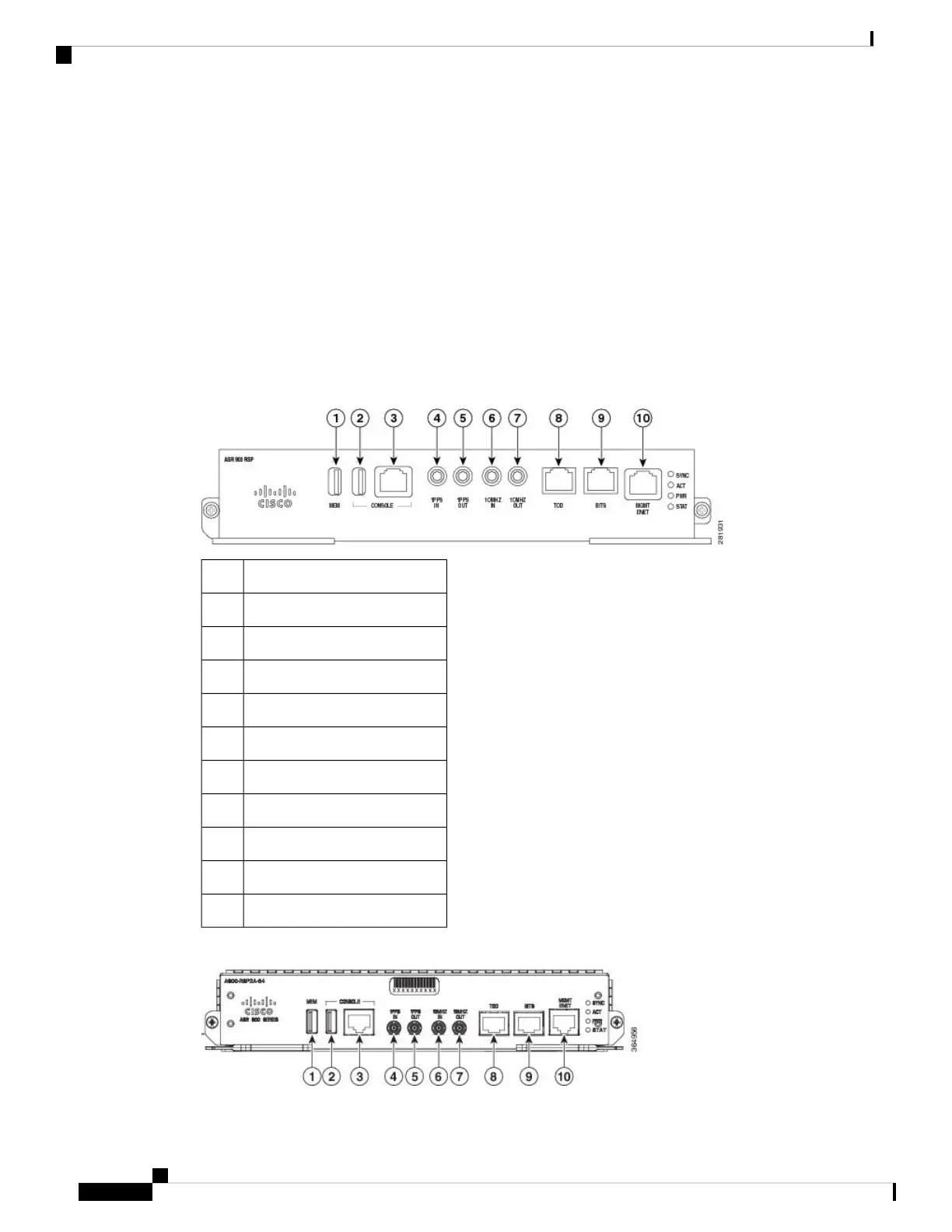

Figure 12: Cisco RSP1 Interfaces Summary
InterfaceLabel
USB memory port1
USB console port2
Console port3
1 PPS input timing port4
1 PPS output timing port5
10 MHz input timing port6
10 MHz output timing port7
Time of Day (ToD) timing port8
BITS timing port9
Ethernet management port10
Figure 13: Cisco A900-RSP2A Interface Summary
