Cisco Catalyst 3650 Hardware Installation Guide

7-5
Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
Appendix 7 Connector and Cable Specifications
Cable and Adapter Specifications

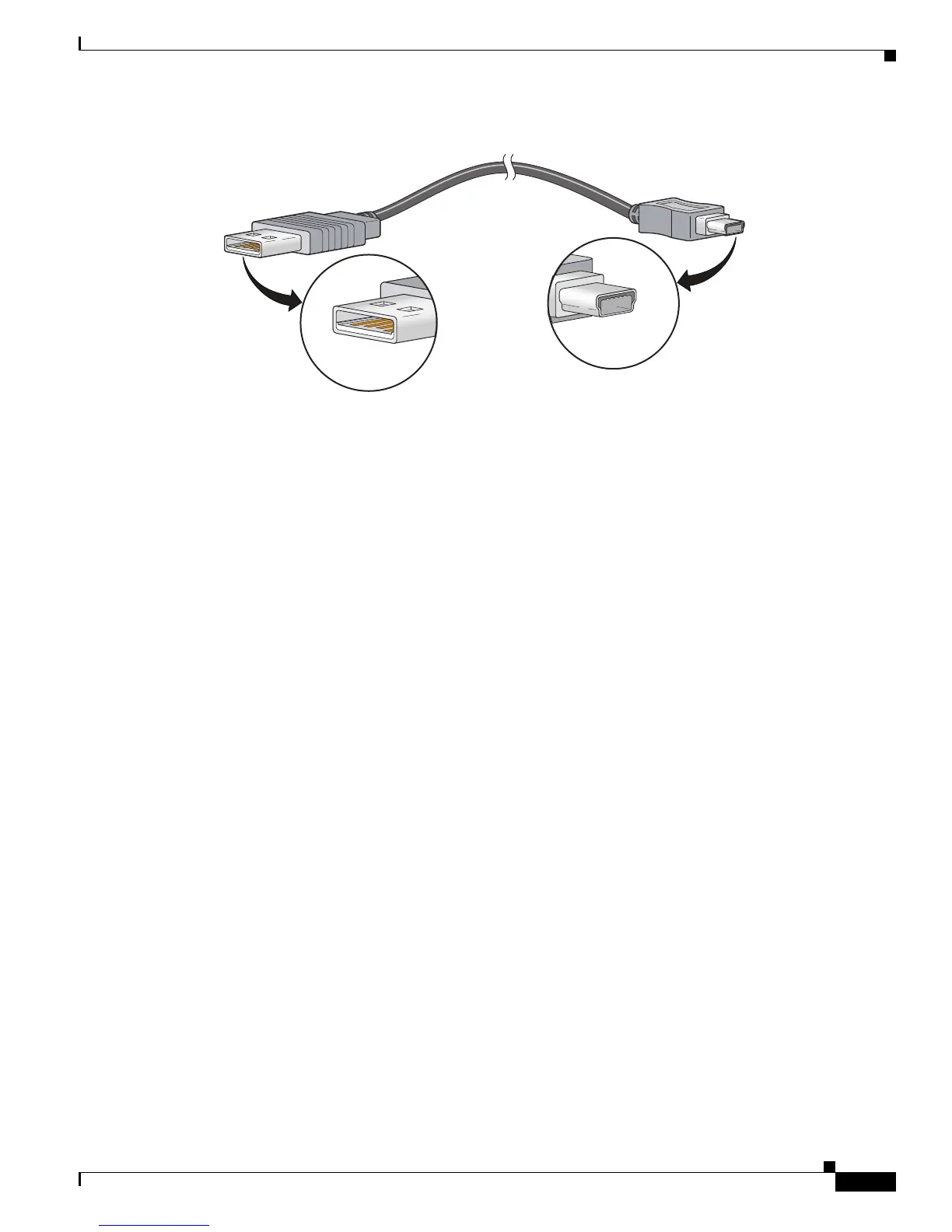

Figure 7-10 USB Type A-to-USB 5-Pin Mini-Type B Cable
The RJ-45 console port uses an 8-pin RJ-45 connector (See Table 7-2 and Table 7-3.) The supplied
RJ-45-to-DB-9 adapter cable is used to connect the console port of the switch to a console PC. You need
to provide a RJ-45-to-DB-25 female DTE adapter if you want to connect the switch console port to a
terminal. You can order a kit (part number ACS-DSBUASYN=) containing that adapter. For console port
and adapter pinout information, see Table 7-2 and Table 7-3.
Cable and Adapter Specifications
• StackWise Cables, page 7-5
• StackWise Adapters, page 7-6
• StackWise Adapter Blanks, page 7-7
• SFP and SFP+ Module Cable Specifications, page 7-8
• Four Twisted-Pair Cable Pinouts, page 7-8
• Two Twisted-Pair Cable Pinouts, page 7-9
• Identifying a Crossover Cable, page 7-9
• Console Port Adapter Pinouts, page 7-9
StackWise Cables
Figure 7-11 shows a StackWise stacking cable.
345493

Cisco Catalyst 3650 Specifications

General

Switching Capacity	160 Gbps
Uplink Interfaces	4 x 1G SFP or 2 x 10G SFP+
Device Type	Switch
Form Factor	Rack-mountable
Layer	Layer 3
DRAM	4 GB
Flash Memory	4 GB
Operating System	Cisco IOS XE
Model	Catalyst 3650
Ports	24 or 48 10/100/1000 Ethernet ports
Stacking	Yes
Power over Ethernet (PoE)	Yes
Power Supply Options	350W AC
VLANs	4094
