Chapter 1 Product Overview
Front Panel

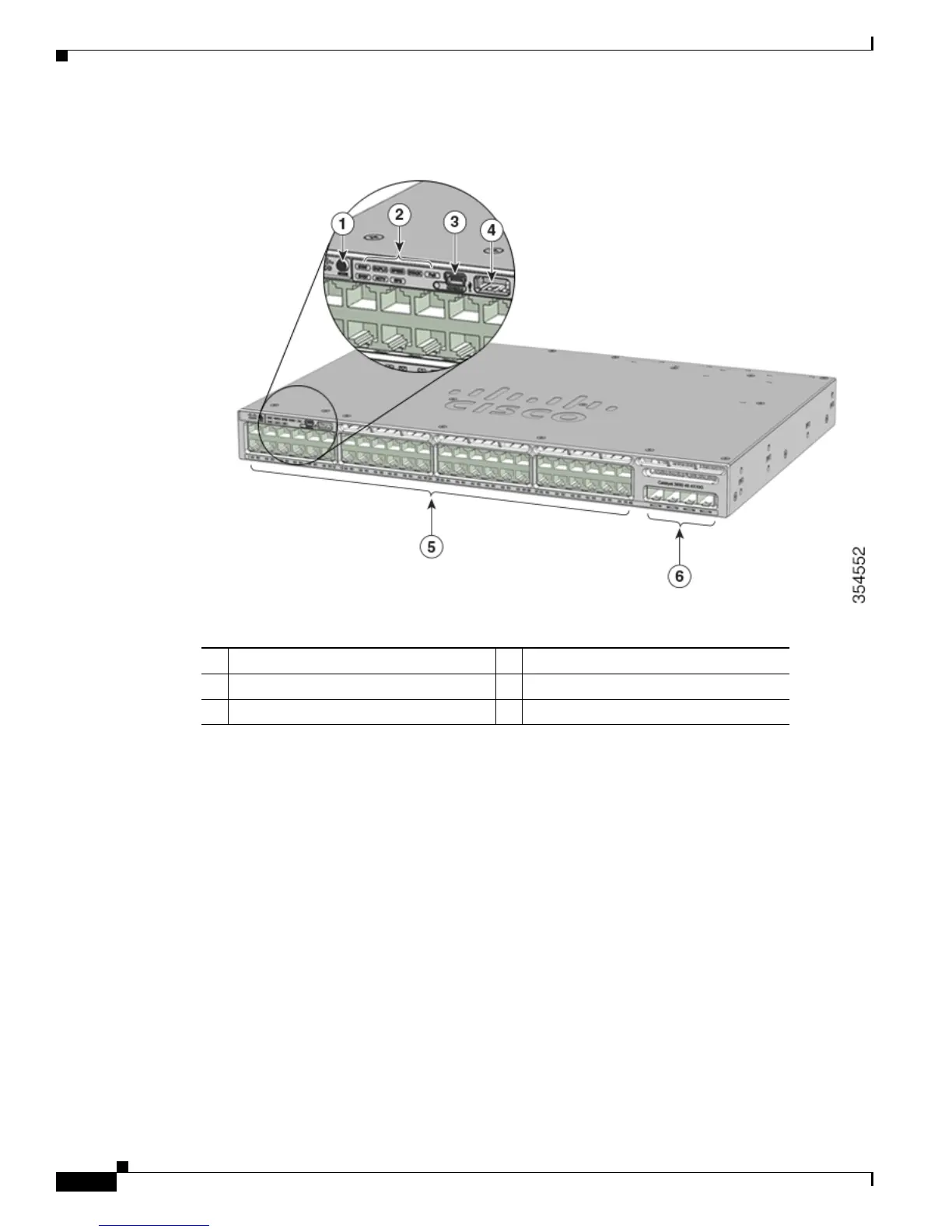

Figure 1-4 Catalyst 3650-48FQM Switches Front Panel
10/100/1000 Ethernet Ports
The 10/100/1000 Ethernet ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length
is 328 feet (100 meters). The 100BASE-TX and 1000BASE-T traffic requires Category 5, Category 5e,
or Category 6 unshielded twisted pair (UTP) cable. The 10BASE-T traffic can use Category 3 or
Category 4 UTP cable.
100M/1G/2.5G/5G/10G Ethernet Ports
The 100M/1G/2.5G/5G/10G Ethernet ports use RJ45 connectors with Ethernet pinouts. These ports do
not support 10Mbps speed. The 100M and 1G traffic requires Category 5/5e/6 unshielded twisted pair
(UTP) cable at maximum cable length of 100 meters. The 2.5G traffic requires Category 5e/6/6a UTP
cable at maximum cable length of 100 meters. The 5G traffic requires Category 5e UTP cable at
maximum cable length of 70 meters and Category 6/6a UTP cable at maximum cable length of 100
meters. The 10G traffic requires Category 6 UTP cable at maximum cable length of 55 meters and
Category 6a UTP cable at maximum cable length of 100 meters.
1 Mode button 4 USB Type A storage port
2 Status LEDs 5 10/100/1000 PoE+ Ethernet ports
3 USB mini-Type B (console) port 6 Uplink ports

Cisco Catalyst 3650 Specifications

General

Switching Capacity	160 Gbps
Uplink Interfaces	4 x 1G SFP or 2 x 10G SFP+
Device Type	Switch
Form Factor	Rack-mountable
Layer	Layer 3
DRAM	4 GB
Flash Memory	4 GB
Operating System	Cisco IOS XE
Model	Catalyst 3650
Ports	24 or 48 10/100/1000 Ethernet ports
Stacking	Yes
Power over Ethernet (PoE)	Yes
Power Supply Options	350W AC
VLANs	4094
