Cisco Catalyst 3650 - Installing a DC Power Supply

3-9
Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
Chapter 3 Power Supply Installation
Installing a DC Power Supply

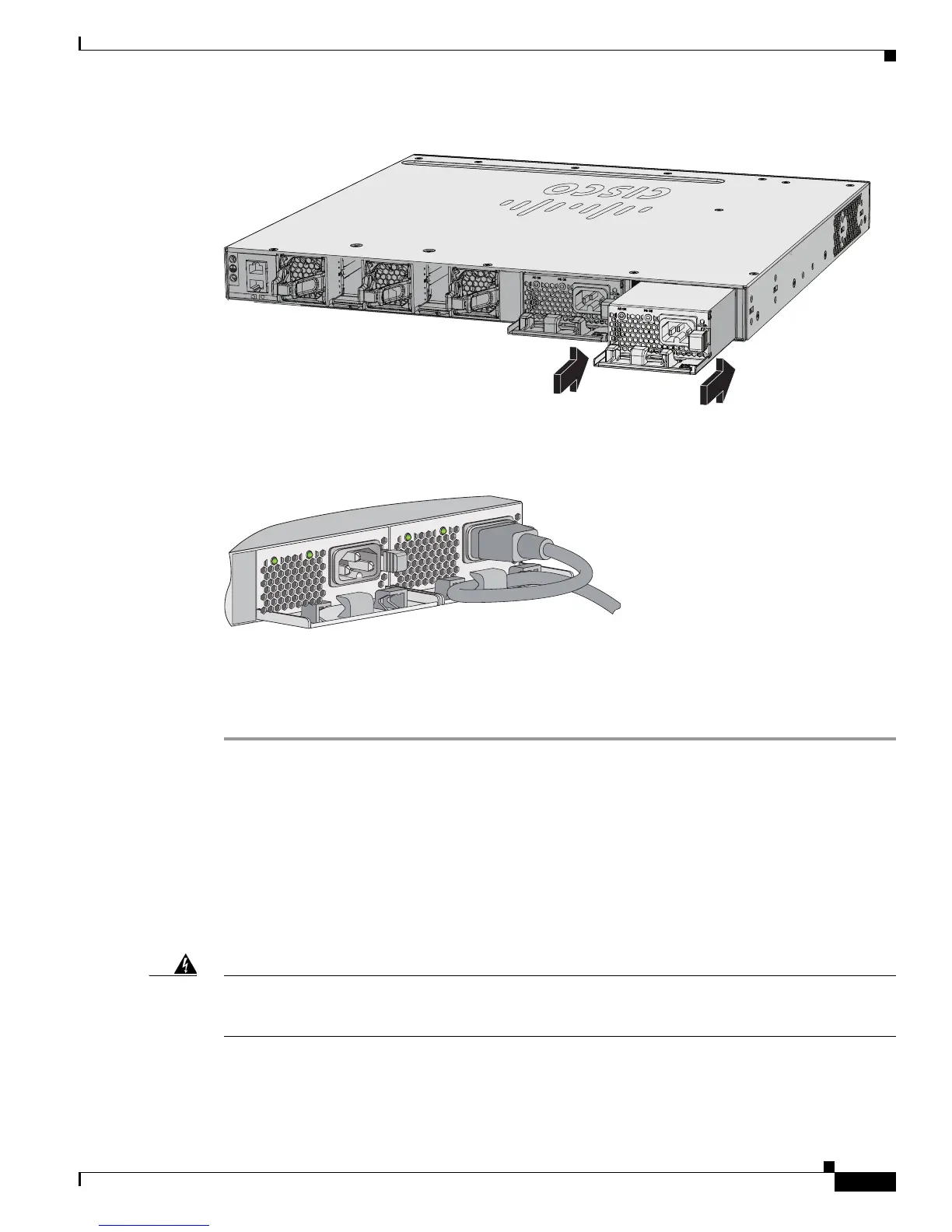

Figure 3-9 Inserting the AC-Power Supply in the Switch
Step 6
(Optional) Make a loop in the power cord and thread it through the power cord retainer (Figure 3-10).
Figure 3-10 AC-Power Supply with Power Cord Retainer
Step 7 Connect the power cord to the power supply and to an AC power outlet. Turn on the power at the power
source.
Step 8 Confirm that the power supply AC OK and PS OK LEDs are green. See for a description of the power
supply module LEDs.
Installing a DC Power Supply
• Equipment That You Need, page 3-10
• Grounding the Switch, page 3-10
• Installing the DC Power Supply in the Switch, page 3-13
• Wiring the DC Input Power Source, page 3-13
Warning An exposed wire lead from a DC-input power source can conduct harmful levels of electricity. Be sure
that no exposed portion of the DC-input power source wire extends from the terminal block plug.
Statement 122
