Cisco Catalyst 9800-80 User Manual

Bay 1 or Hot-Swap EPA18RP— RJ-45 10/100/1000 redundancy
Ethernet
port
9
Two power supplies (AC or DC) are accessed from the front of the controller and are hot-swappable.
The Cisco Catalyst 9800-80 Wireless Controller supports two AC or DC power supplies. Do not install mixed
AC and DC power supply units in the same chassis.
Caution
Built-In SFP and SFP+ Ports

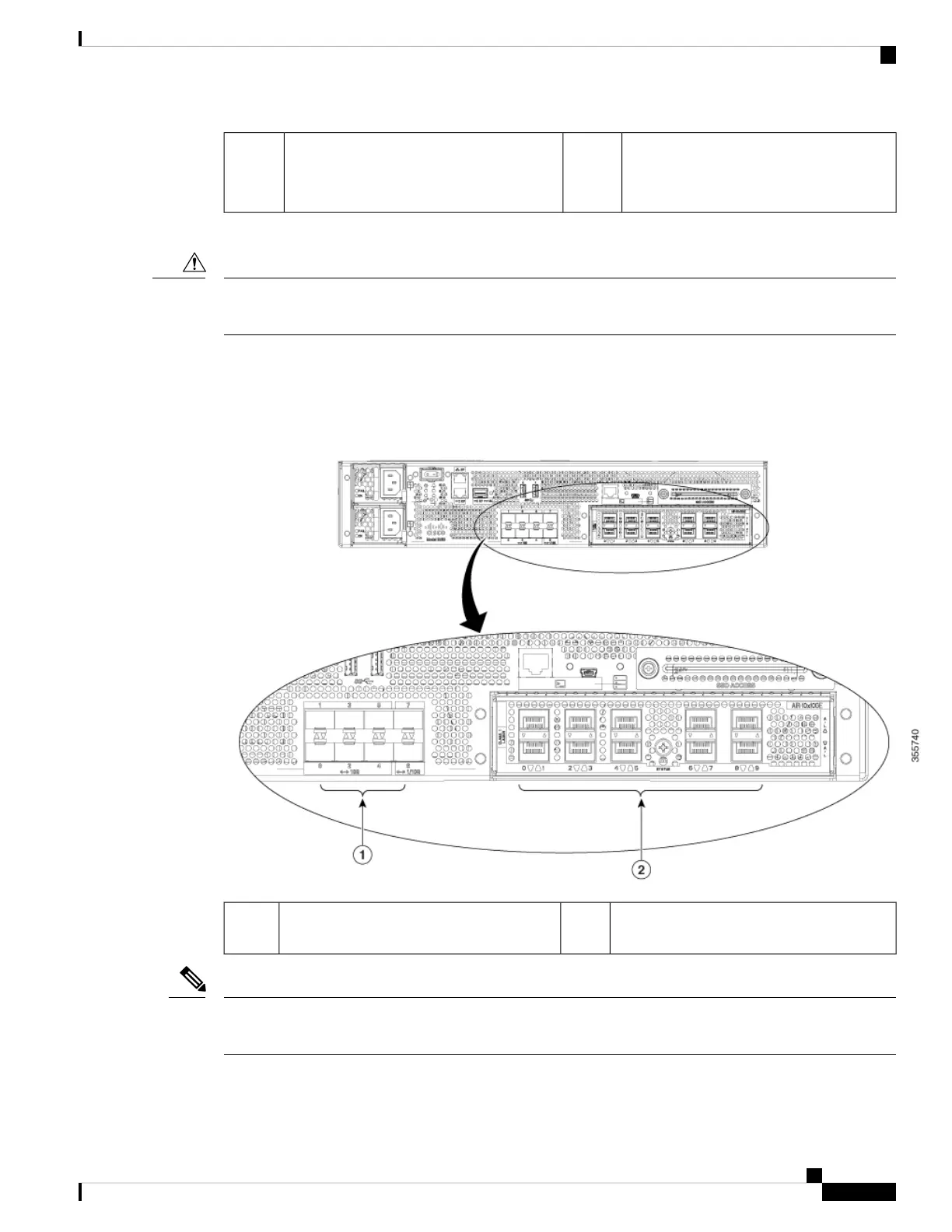

The following figure shows the port numbering for the built-in ports.
Figure 2: Cisco Catalyst 9800-80 Wireless Controller Port Numbering
Bay 1—The ports in Bay 1 use 10GE SFP+
transceivers.
2Bay 0—The ports in Bay 0 use 1GE or 10GE
SFP+ transceivers and are labeled TE0 - TE7.
1
By default, the interfaces from 0 to 3 on both Bay 0 and Bay 1 on the Cisco Catalyst 9800-80 Wireless
Controller are enabled. You can enable the interfaces from 4 to 7 by purchasing the Paired Port License.
Note
The port LEDs behave as follows:
Cisco Catalyst 9800-80 Wireless Controller Hardware Installation Guide
3
Overview
Built-In SFP and SFP+ Ports

Cisco Catalyst 9800-80 Specifications

General

Model	Cisco Catalyst 9800-80
Category	Controller
Product Type	Wireless LAN Controller
Form Factor	Rack-mountable
Rack Height	2U
Wireless Standards	802.11a/b/g/n/ac/ax
Maximum Number of Access Points	6000
Maximum Number of Wireless Clients	64000
Throughput	80 Gbps
High Availability	Yes
Redundant Power Supply	Yes
Operating Temperature	32 to 104°F (0 to 40°C)
Ports	8 x 10 Gigabit Ethernet (SFP+)
Redundancy	N+1
Management	Web UI, CLI
Power Supply	AC
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5 - 95% (noncondensing)
