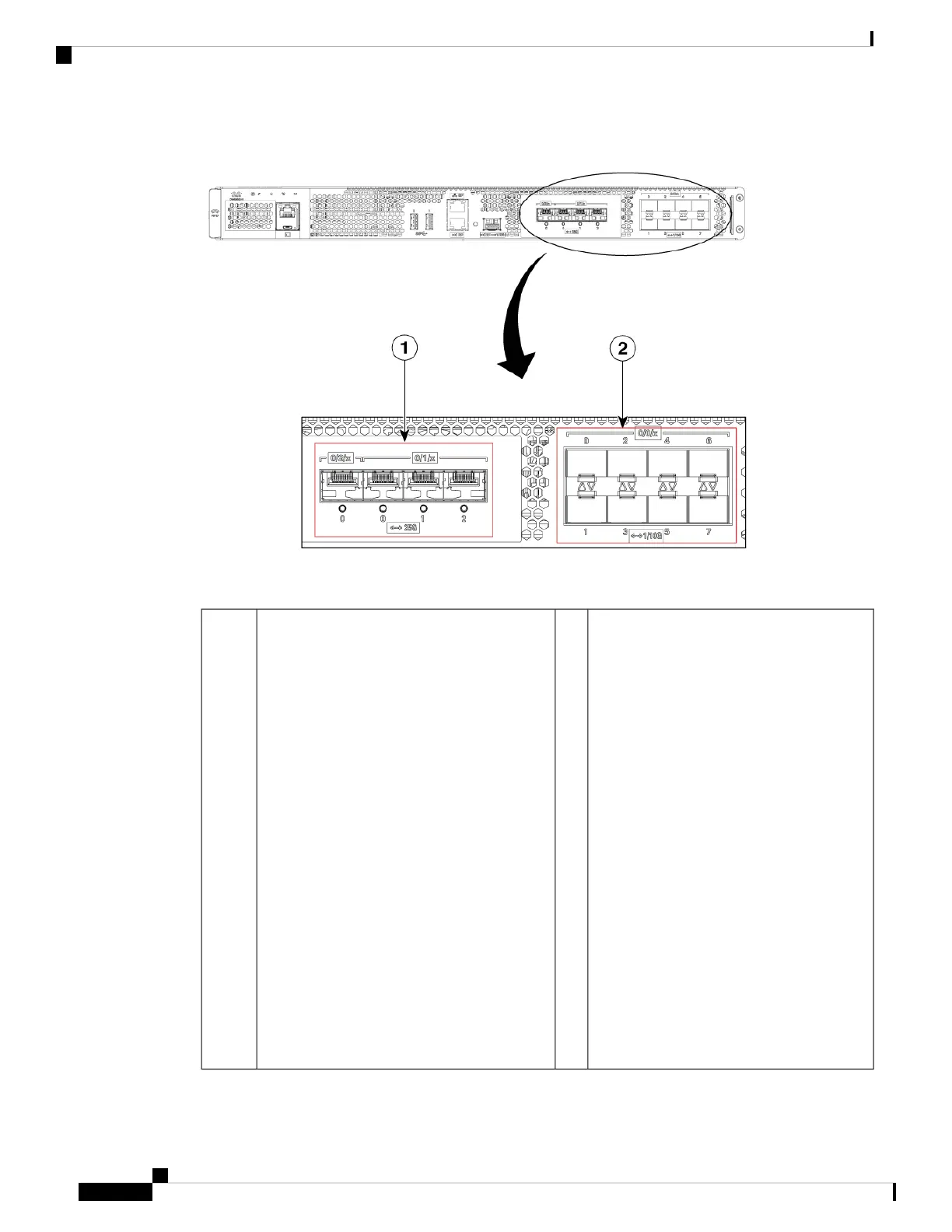

Figure 3: Cisco Catalyst CW9800H1 Wireless Controller Port Numbering
Table 4: Cisco Catalyst CW9800H1 Wireless Controller Port Numbering
Bay 0—8 X 1-GE/10-GE SFP ports.
The supported ports are:
• Te0/0/0—1-GE SFP/ 10-GE SFP+ Port
0
• Te0/0/1—1-GE SFP/ 10-GE SFP+ Port
1
• Te0/0/2—1-GE SFP/ 10-GE SFP+ Port
2
• Te0/0/3—1-GE SFP/ 10-GE SFP+ Port
3
• Te0/0/4—1-GE SFP/ 10-GE SFP+ Port
4
• Te0/0/5—1-GE SFP/ 10-GE SFP+ Port
5
• Te0/0/6—1-GE SFP/ 10-GE SFP+ Port
6
• Te0/0/7—1-GE SFP/ 10-GE SFP+ Port
7
2• Bay 1—3 X 25-GE SFP ports.
The supported ports are:
• TwentyFiveGigE0/1/0—25-GE SFP+
Port 0
• TwentyFiveGigE0/1/1—25-GE SFP+
Port 1
• TwentyFiveGigE0/1/2—25-GE SFP+
Port 2
• Bay 2—1 X25-GE SFP port.
The supported port is
TwentyFiveGigE0/2/0—25-GE SFP+ Port
0.
