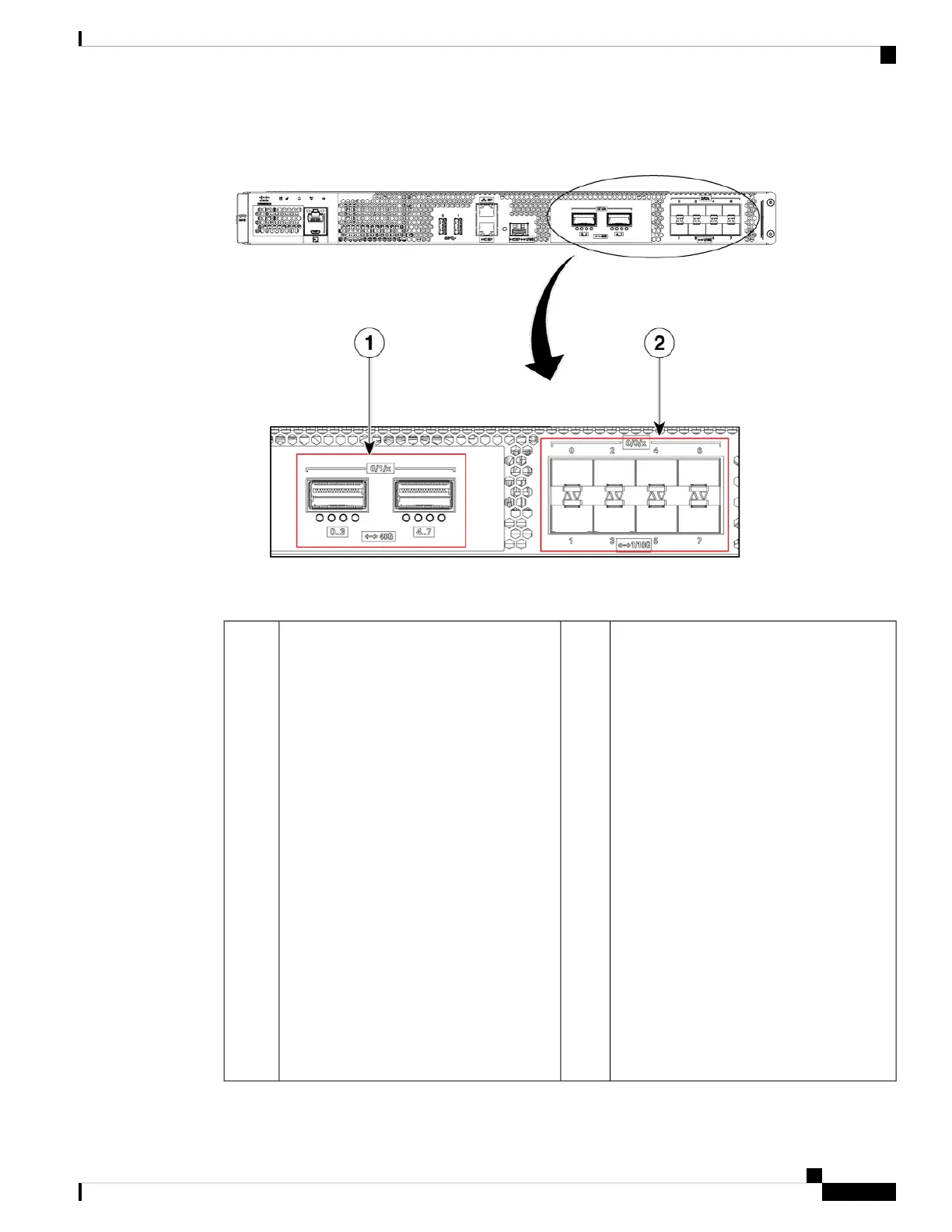

Figure 4: Cisco Catalyst CW9800H2 Wireless Controller Port Numbering
Table 5: Cisco Catalyst CW9800H2 Wireless Controller Port Numbering
Bay 0—8 X 1-GE/10-GE SFP ports.
The supported ports are:
• Te0/0/0—1-GE SFP/ 10-GE SFP+ Port
0
• Te0/0/1—1-GE SFP/ 10-GE SFP+ Port
1
• Te0/0/2—1-GE SFP/ 10-GE SFP+ Port
2
• Te0/0/3—1-GE SFP/ 10-GE SFP+ Port
3
• Te0/0/4—1-GE SFP/ 10-GE SFP+ Port
4
• Te0/0/5—1-GE SFP/ 10-GE SFP+ Port
5
• Te0/0/6—1-GE SFP/ 10-GE SFP+ Port
6
• Te0/0/7—1-GE SFP/ 10-GE SFP+ Port
7
2Bay 1—2 X 40-GE QSFP ports.
The supported ports are:
• Fo0/1/0—40-GE QSFP Port 0
• Fo0/1/1—40-GE QSFP Port 1
1
Cisco Catalyst CW9800H1 and CW9800H2 Wireless Controllers Hardware Installation Guide
7
Overview
Built-In SFP and SFP+ Ports
