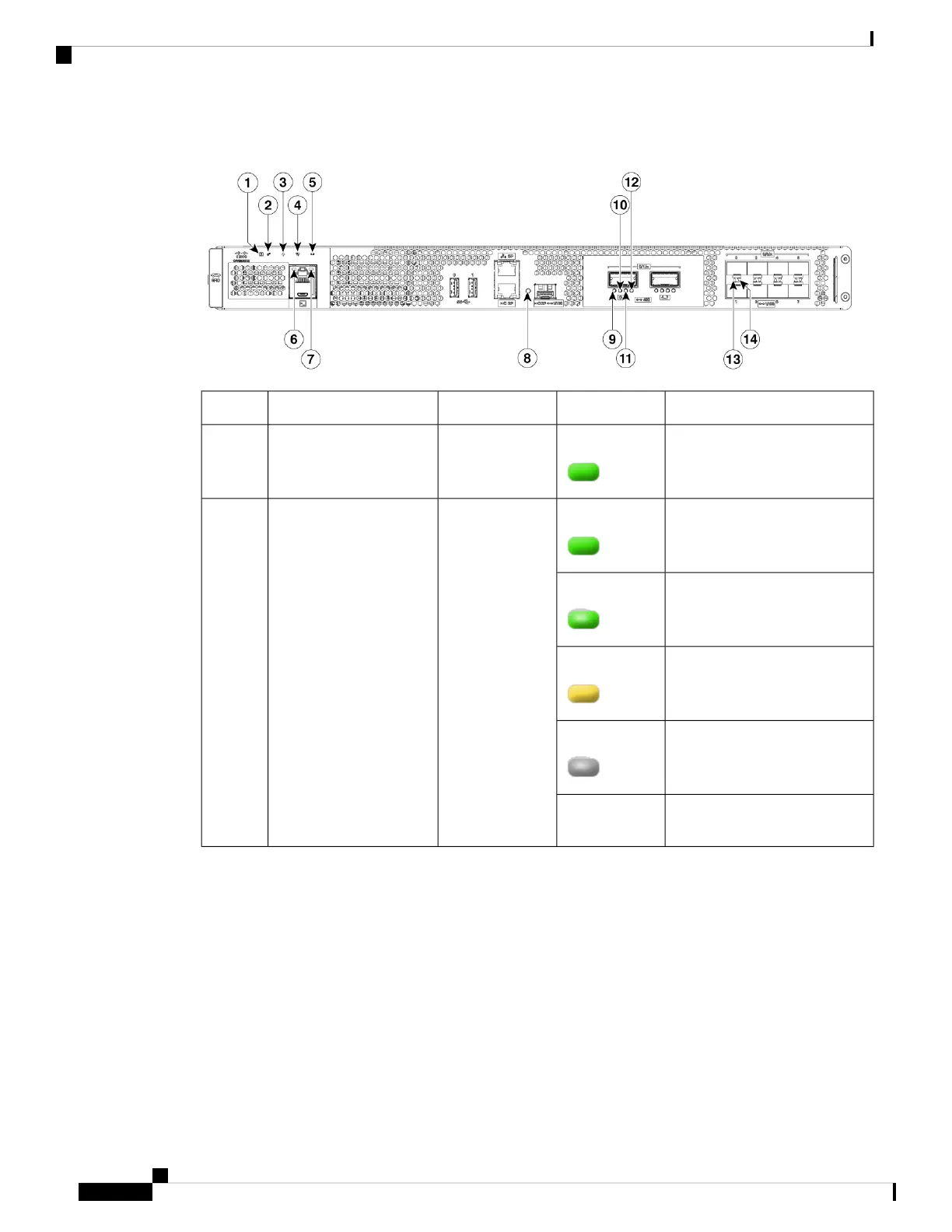

Figure 7: Cisco Catalyst CW9800H2 Wireless Controller LEDs
BehaviorLED ColorDescriptionLED LabelNo.
If all the power rails are based
on the specification.
GreenPowerPWR1
Remains ON during IOS boot
complete.
OnSystemSYS2
Remains blinking when IOS
booting is in progress.
Blinking Green
Remains ON during system
crash.
Amber
Remains blinking during secure
boot failure.
Blinking Amber
Remains OFF during ROMMON
boot.
Off
Cisco Catalyst CW9800H1 and CW9800H2 Wireless Controllers Hardware Installation Guide
12
Overview
LEDs
