3-21
Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 3 Installing the Content Delivery Engines
Installing the CDEs

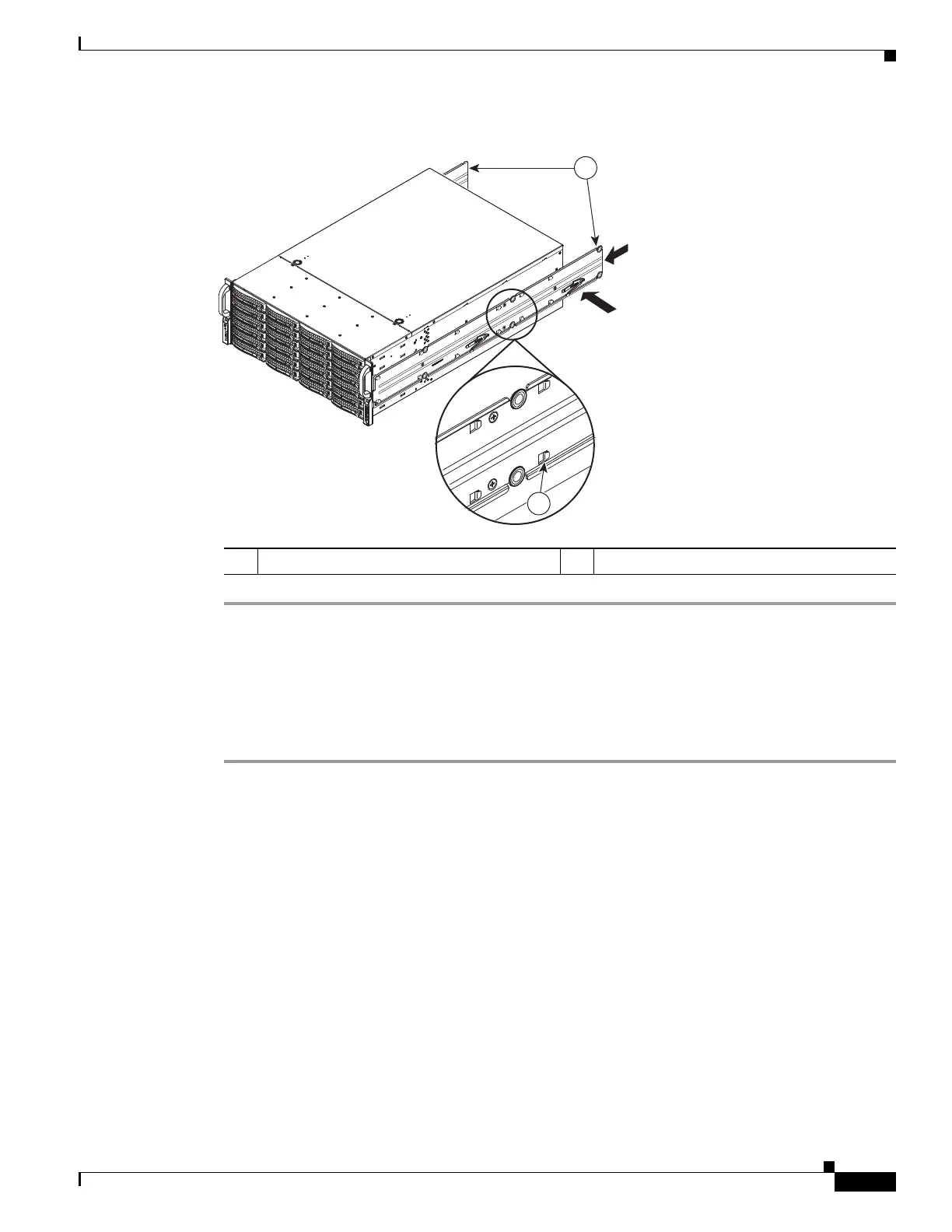

Figure 3-17 Installing the Inner Rails
Installing the Rev. A Outer Rails to the Rack
Outer rails attach to the rack and hold the CDE in place. The outer rails for the CDE205, CDE220,
chassis extend between 30 inches and 33 inches.
Perform the following steps to install the outer rails to the rack:
Step 1 Attach the short bracket to the outside of the long bracket. You must align the pins with the slides. Also,
both bracket ends must face the same direction (see Figure 3-18).
1 Chassis hooks 2 Inner rails
204270
2
1
