3-20
Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 3 Installing the Content Delivery Engines
Installing the CDEs
Identifying the Rev. A Inner Rails
The chassis package includes a rack-rail assembly in the rack-mounting kit. Each assembly consists of
an inner rail that secures to the chassis and an outer rail that is attached directly to the rack (see
Figure 3-16).

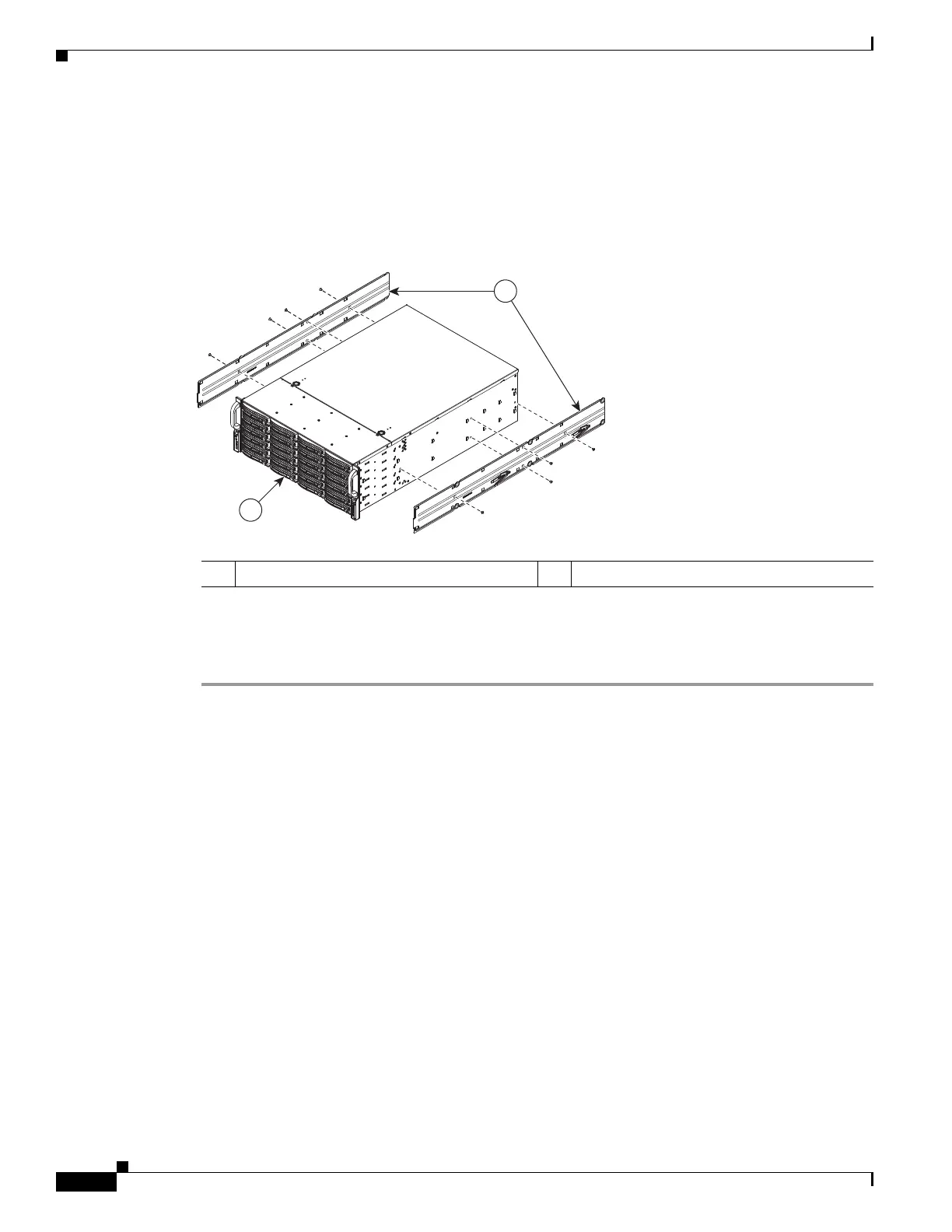

Figure 3-16 Identifying the Rev. A Inner Rails
Installing the Rev. A Inner Rails
Perform the following steps to install the inner rails:
Step 1 Place the inner rails on the side of the chassis, aligning the hooks of the chassis with the inner rail holes.
Make sure the rail faces outward so that it will fit with the rack-mounting bracket (see Figure 3-17).
Step 2 Slide the rail toward the front of the chassis.
Step 3 Secure the chassis with four screws.
Step 4 Repeat Step 1 through Step 3 for the other inner rail.
1 Inner rail assemblies 2 CDE
204269
2
1
