3-22
Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 3 Installing the Content Delivery Engines
Installing the CDEs

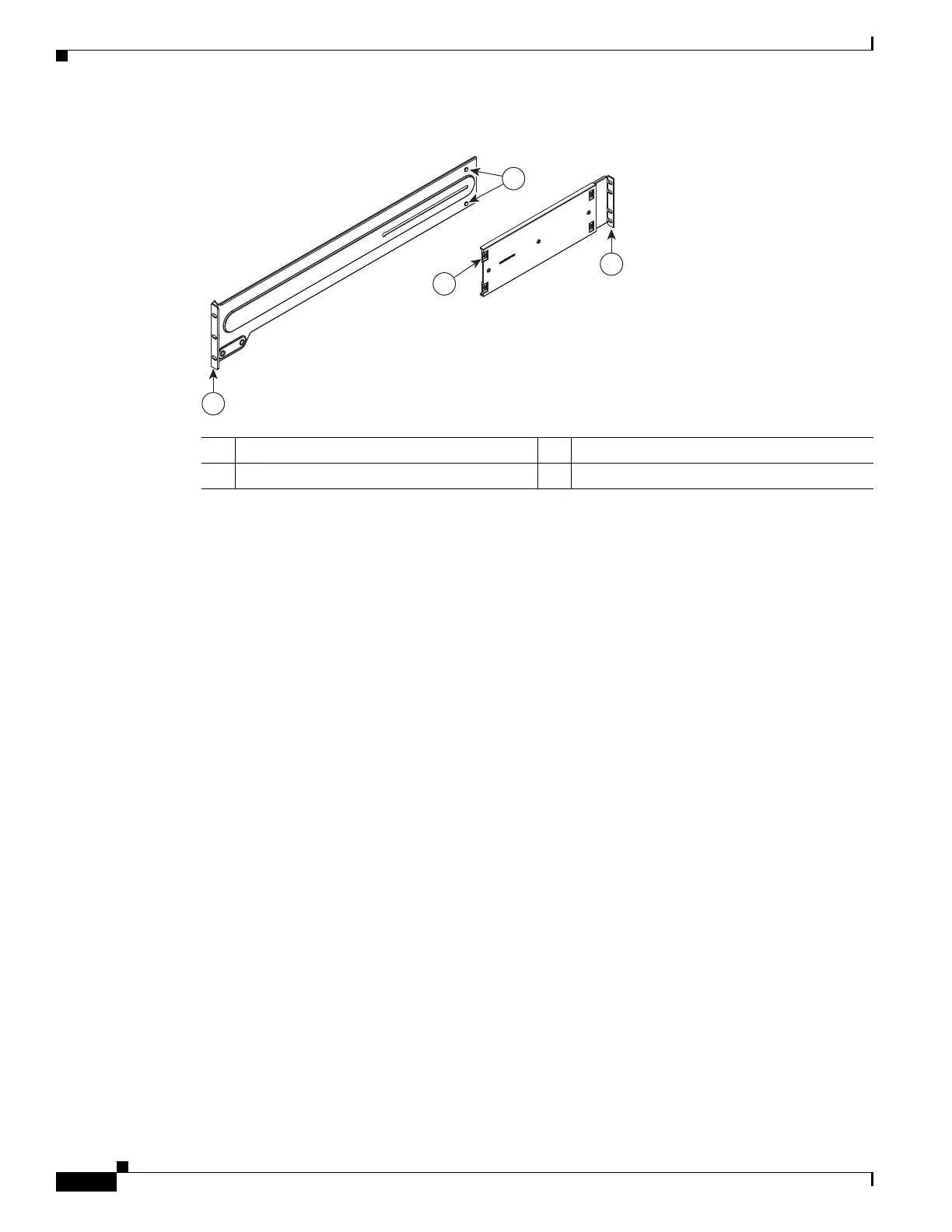

Figure 3-18 Assembling the Outer Rails
Step 2
Adjust both the short and long brackets to the proper distance so that the rail fits snugly into the rack.
Step 3 Secure the long bracket to the front side of the outer rail with two M5 screws and the short bracket to the
rear side of the outer rail with three M5 screws (see Figure 3-19).
Step 4 RepeatStep 1 through Step 3 for the other outer rail.
1 Long bracket end 2 Slides
3 Pins 4 Short bracket end
204271
4
2
1
3
