Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 3 Installing the Content Delivery Engines
Installing the CDEs

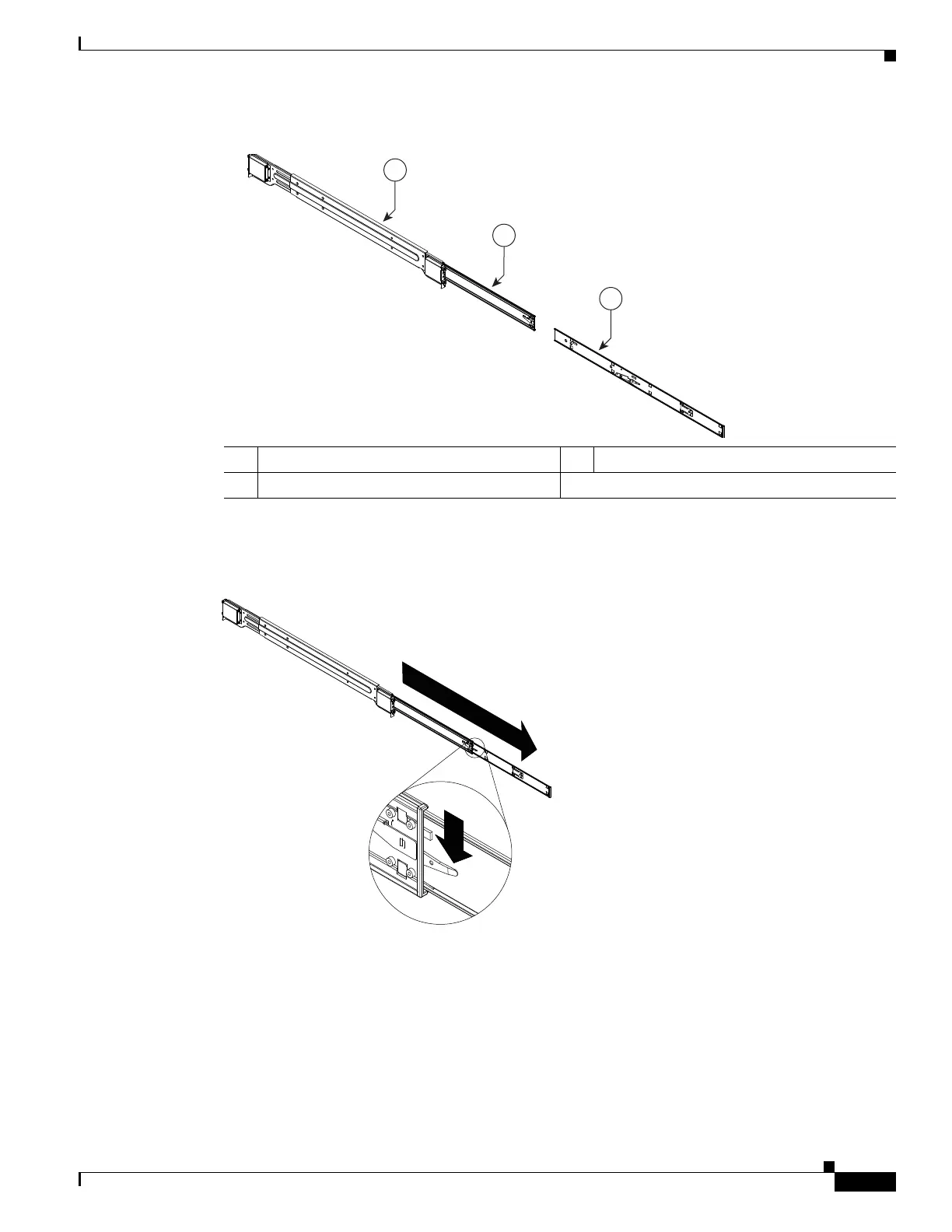

Figure 3-21 Identifying the Rev. B Rails
Step 2 Press the locking tab down to release the inner rail and remove it from the rail assembly.
Figure 3-22 Releasing the Rev. B Inner Rails
Step 3
Place the inner rails on the side of the chassis, aligning the hooks of the chassis with the inner rail so
that it snaps securely. Make sure that the rail faces outward so that it fits with the rack-mounting bracket
(see arrow number 1).
Slide the inner rail forward until it clicks into the locked position (see arrow number 2).
1 Inner rail assembly 2 Middle rail assembly
3 Outer rail assembly
209584
To Next Page
