Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE220 2C2-F
Figure 1-18 is a front view of the CDE220 2C2 (copper and fiber models) showing the location of the
storage drives. Table 1-17 lists the CDE220 2C2-F PCI expansion cards and their corresponding PCI slot
numbers (see Figure 1-8 to see the location of the PCI expansion slots).
CDE220 2D1-C
Figure 1-19 is a front view of the CDE220 2D1 (copper and fiber models) showing the location of the
storage drives. Table 1-18 lists the CDE220 2D1-C PCI expansion cards and their corresponding PCI slot
numbers (see Figure 1-8 to see the location of the PCI expansion slots).

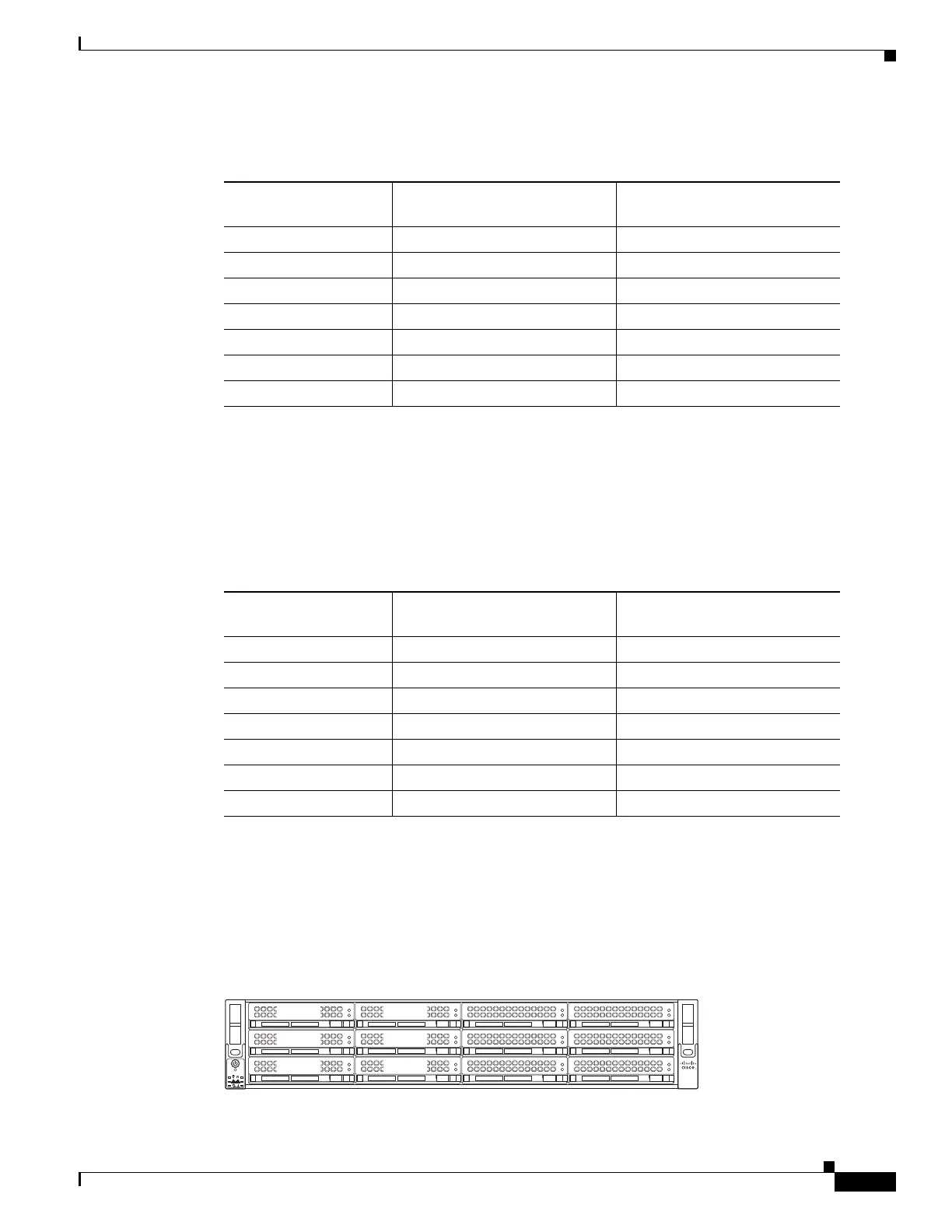

Figure 1-19 CDE220 2D1-F/C Drives
Table 1-16 CDE220 2C2-C PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—quad copper eth6 eth7 eth8 eth9
3 NIC—quad copper eth2 eth3 eth4 eth5
4— —
5 NIC—quad copper eth10 eth11 eth12 eth13
6— —
7— —
Table 1-17 CDE220 2C2-F PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—dual fiber eth4 eth5
3 NIC—dual fiber eth2 eth3
4— —
5 NIC—dual fiber eth6 eth7
6 NIC—dual fiber eth8 eth9
7— —
RESET
205498
disk3
disk2
disk1
disk6
disk5
disk4
