Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE220 2D1-F
Figure 1-19 is a front view of the CDE220 2D1 (copper and fiber models) showing the location of the
storage drives. Table 1-19 lists the CDE220 2D1-F PCI expansion cards and their corresponding PCI slot
numbers (see Figure 1-8 to see the location of the PCI expansion slots).
CDE220 2G2-C

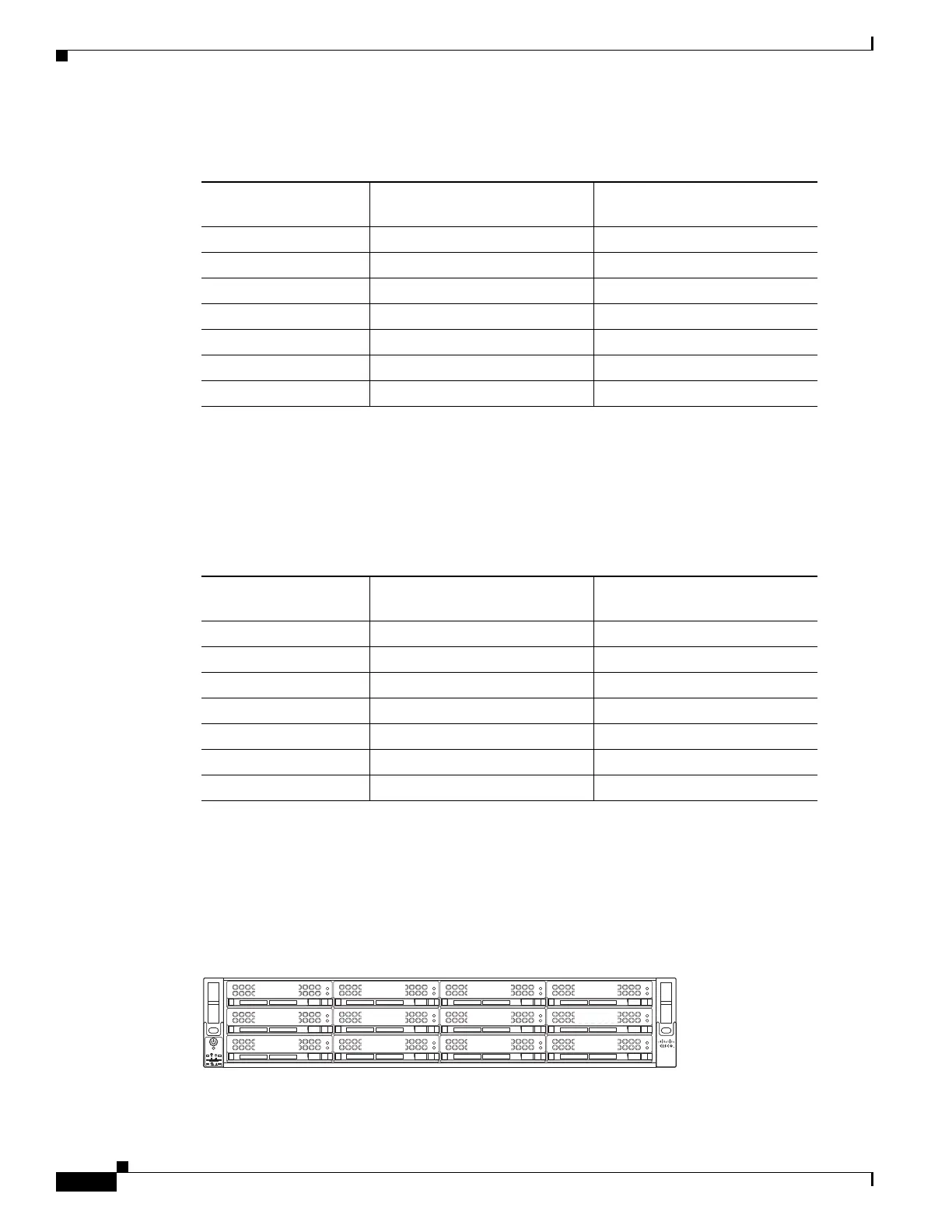

Figure 1-20 is a front view of the CDE220 2G2 (copper and fiber models) showing the location of the
storage drives. Table 1-20 and Table 1-21 list the CDE220 2G2-C PCI expansion cards and their
corresponding PCI slot numbers (see Figure 1-8 to see the location of the PCI expansion slots).
Figure 1-20 CDE220 2G2-F/C Drives
Table 1-18 CDE220 2D1-C PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—quad copper eth2 eth3 eth4 eth5
3— —
4— —
5— —
6— —
7— —
Table 1-19 CDE220 2D1-F PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—dual fiber eth4 eth5
3 NIC—dual fiber eth2 eth3
4— —
5— —
6— —
7— —
RESET
2
85397
disk2
disk1
disk0
disk8
disk7
disk6
disk11
disk10
disk9
disk5
disk4
disk3
