Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE285-S

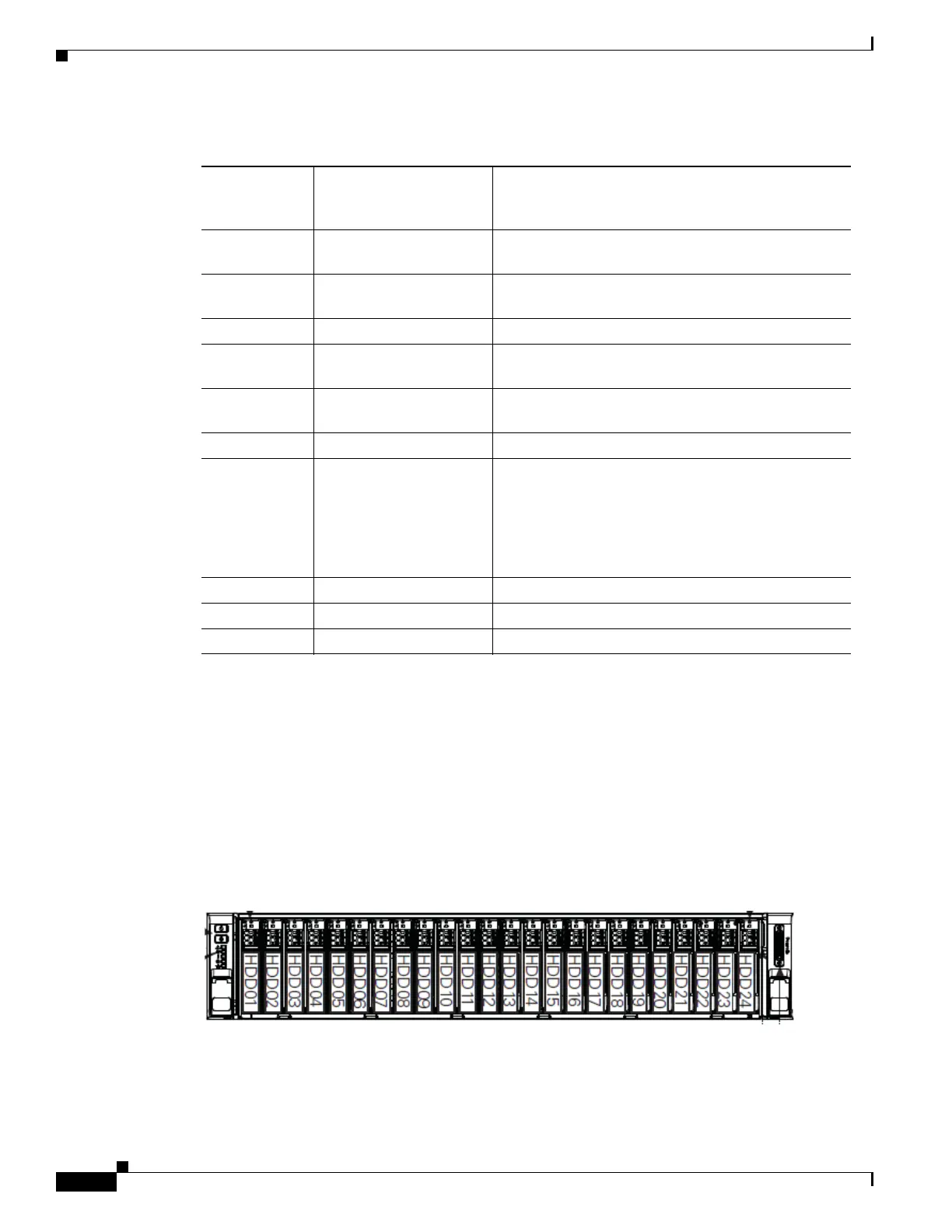

Figure 1-35 is the front view of the 24 drive CDE285-S shows the location of the storage drive.
Table 1-40 lists the CDE285-S expansion cards and their corresponding PCI slot numbers (see
Figure 1-11 in the Cisco UCS C240 M4 High-Density Rack Server (Small Form Factor Disk Drive
Model) for locating the PCI expansion slots).
Figure 1-35 CDE285-S Drives
Table 1-39 CDE280 PCI Expansion Cards
PCI
Expansion
Slot Number
Expansion Card
1
1. These mappings are valid only when the CIMC NIC mode is dedicated (default setting)
VDS-IS Interface Name
1 NIC—dual (10GE) fiber TenGigabitEthernet 1/0 = eth2[Left] and
TenGigabitEthernet 1/1 = eth3 [Right]
2 NIC—dual (10GE) fiber TenGigabitEthernet 2/0 = eth4[Left] and
TenGigabitEthernet 2/1 = eth5[Right]
3Blank
4 NIC—dual (10GE) fiber TenGigabitEthernet 3/0 = eth6[Left] and
TenGigabitEthernet 3/1 = eth7[Right]
5 NIC—dual (10GE) fiber TenGigabitEthernet 4/0 = eth8[Left] and
TenGigabitEthernet 4/1 = eth9[Right]
6Blank
Embedded
Ethernet Port
on the
motherboard
(Labelled on
back)
Component VDS-IS Interface Name
M CIMC Ethernet port CIMC Management
1 Intel i350 GbE Ethernet GigabitEthernet 1/0 = eth0
2 Intel i350 GbE Ethernet GigabitEthernet 1/1 = eth1
