Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE285-L

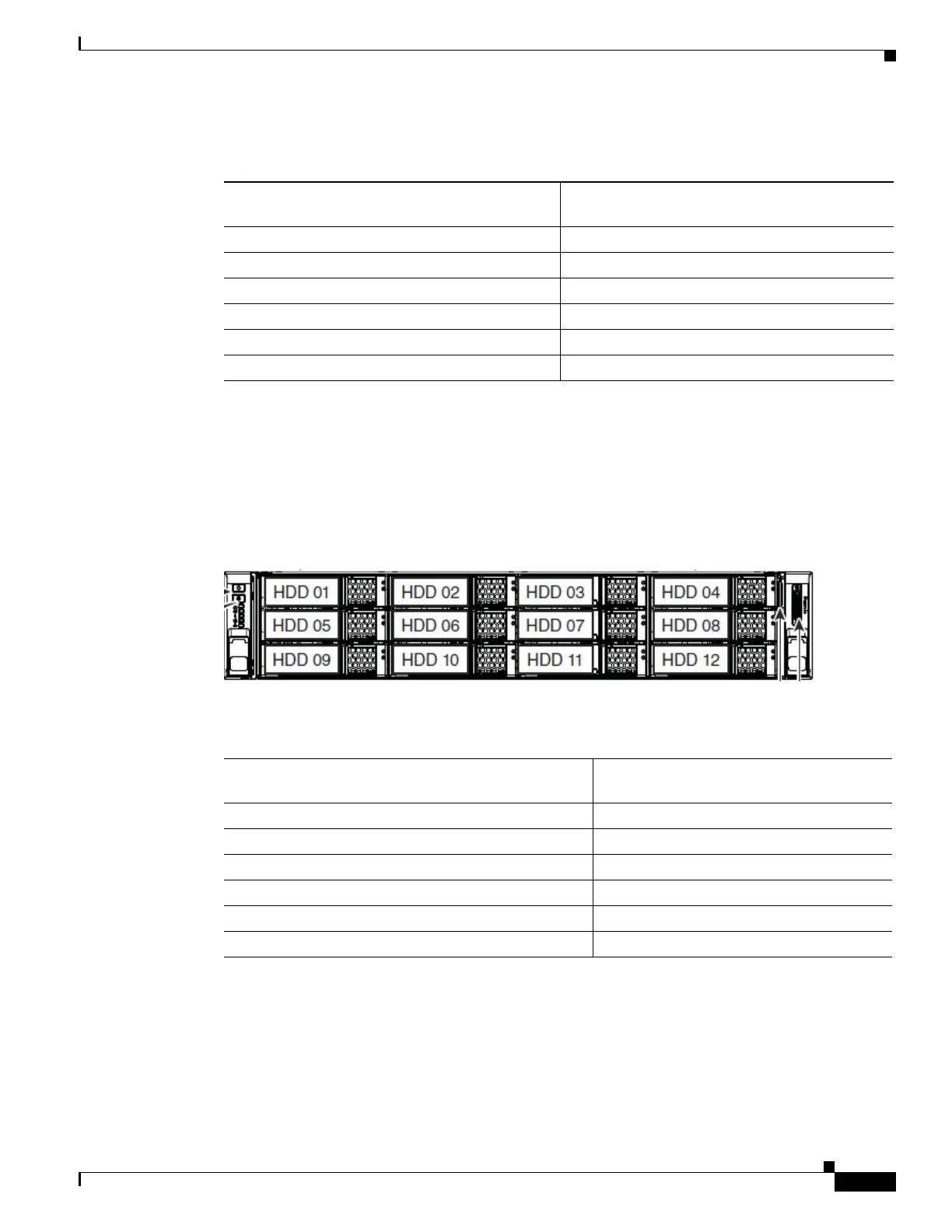

Figure 1-36 is the front view of the 12 drive CDE285-L, shows the location of the storage drive.
Table 1-41 lists the CDE285-L expansion cards and their corresponding PCI slot numbers (see
Figure 1-11 in the Cisco UCS C240 M4 High-Density Rack Server (Large Form Factor Disk Drive
Model) for locating the PCI expansion slots).
Figure 1-36 CDE285-L Drives
For the procedure on installing OMD software on the CDE285, see Cisco UCS C240 M4 Server
Installation and Service Guide.
Table 1-40 CDE285-S Expansion Cards
PCI Expansion
Slot Number Expansion Card
1 NIC—dual (10GE) fiber
2 NIC—dual (10GE) fiber
3Blank
4 NIC—dual (10GE) fiber
5 NIC—dual (10GE) fiber
6Blank
Table 1-41 CDE285-L Expansion Cards
PCI Expansion
Slot Number Expansion Card
1 NIC—dual (10GE) fiber
2 NIC—dual (10GE) fiber
3Blank
4 NIC—dual (10GE) fiber
5 NIC—dual (10GE) fiber
6Blank
